Tool Holders / S-System End Mills
AEM90-AP16L-D32-C32-L120-Z03-H
AEM90-AP-LMN series · see all 13 sizes
Insert compatibility
This size is built for the insert designation AP.. 1604 (as listed in the catalogue data).

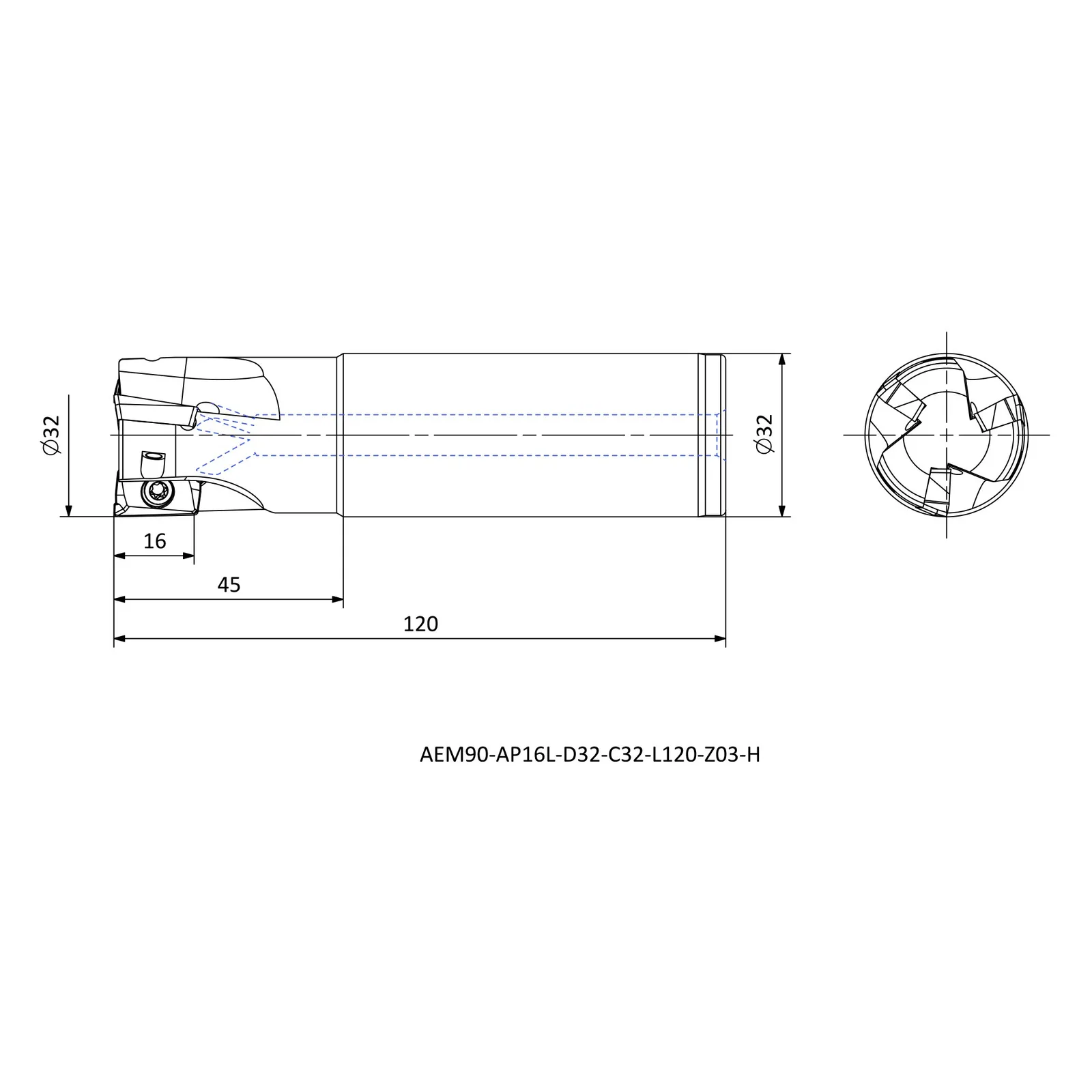

Specifications — AEM90-AP16L-D32-C32-L120-Z03-H
| Insert Code | Insert designation | AP.. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 45 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 13 sizes in AEM90-AP-LMN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP16L-D25-C25-L120-Z02-H | R | 25 | 25 | 120 |
| AEM90-AP16L-D40-C32-L120-Z04-H | R | 40 | 32 | 120 |
| AEM90-AP16L-D40-C32-L250-Z04 | R | 40 | 32 | 250 |
| AEM90-AP16L-D25-C25-L150-Z02 | R | 25 | 25 | 150 |
| AEM90-AP16L-D32-C32-L150-Z03 | R | 32 | 32 | 150 |
| AEM90-AP16L-D25-C25-L200-Z02 | R | 25 | 25 | 200 |
| AEM90-AP16L-D30-W25-L120-Z03-H | R | 30 | 25 | 120 |
| AEM90-AP16L-D40-C32-L150-Z04 | R | 40 | 32 | 150 |
| AEM90-AP16L-D25-C25-L250-Z02 | R | 25 | 25 | 250 |
| AEM90-AP16L-D32-C32-L120-Z03-H | R | 32 | 32 | 120 |
| AEM90-AP16L-D32-C32-L250-Z03 | R | 32 | 32 | 250 |
| AEM90-AP16L-D40-C32-L200-Z04 | R | 40 | 32 | 200 |
| AEM90-AP16L-D32-C32-L200-Z03 | R | 32 | 32 | 200 |
