Tool Holders / S-System End Mills
AEM90-AP11O-D26-C25-L150-Z04
AEM90-AP-OKE series · see all 8 sizes
Insert compatibility
This size is built for the insert designation AP.. 1135 (as listed in the catalogue data).

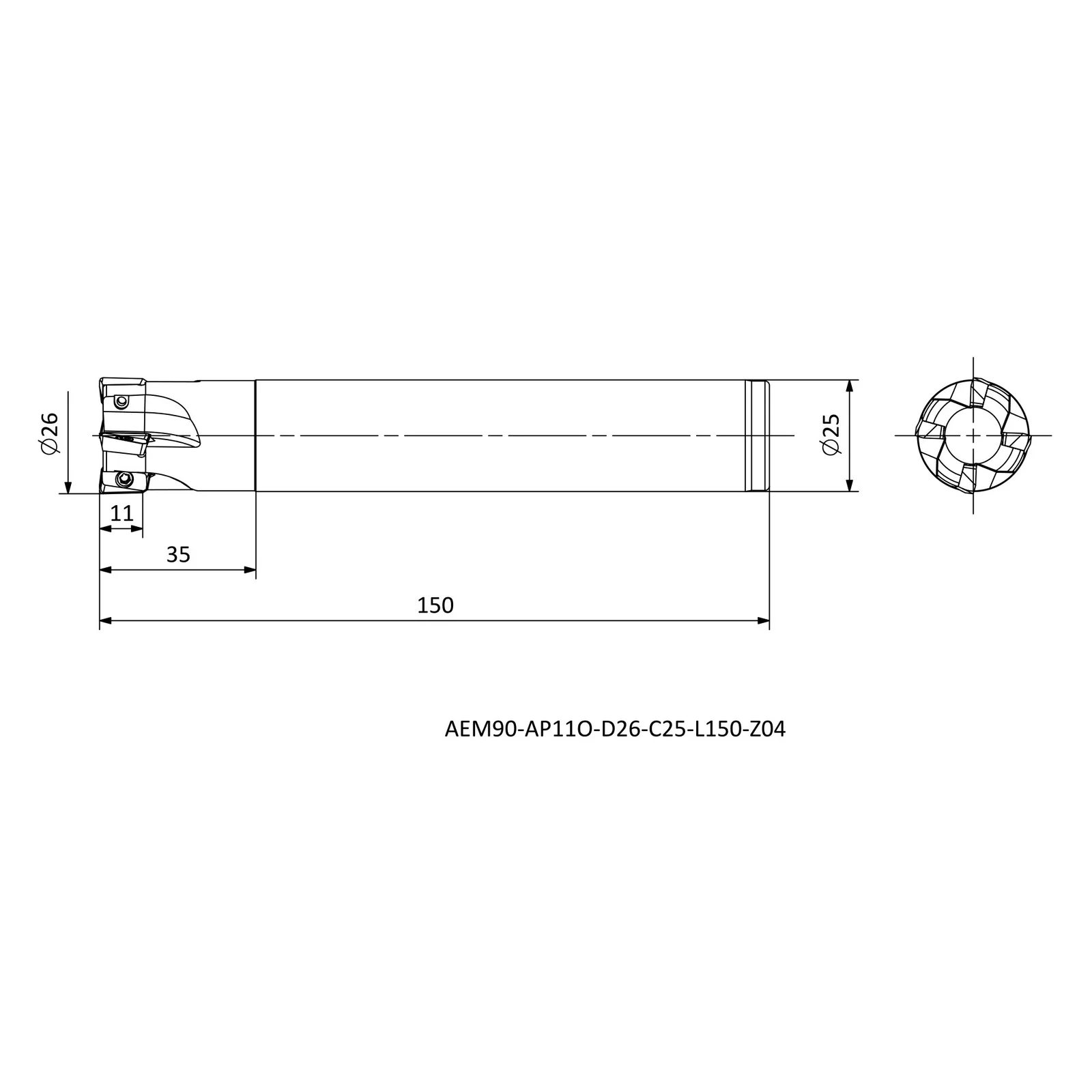

Specifications — AEM90-AP11O-D26-C25-L150-Z04
| Insert Code | Insert designation | AP.. 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 26 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
