Tool Holders / S-System End Mills

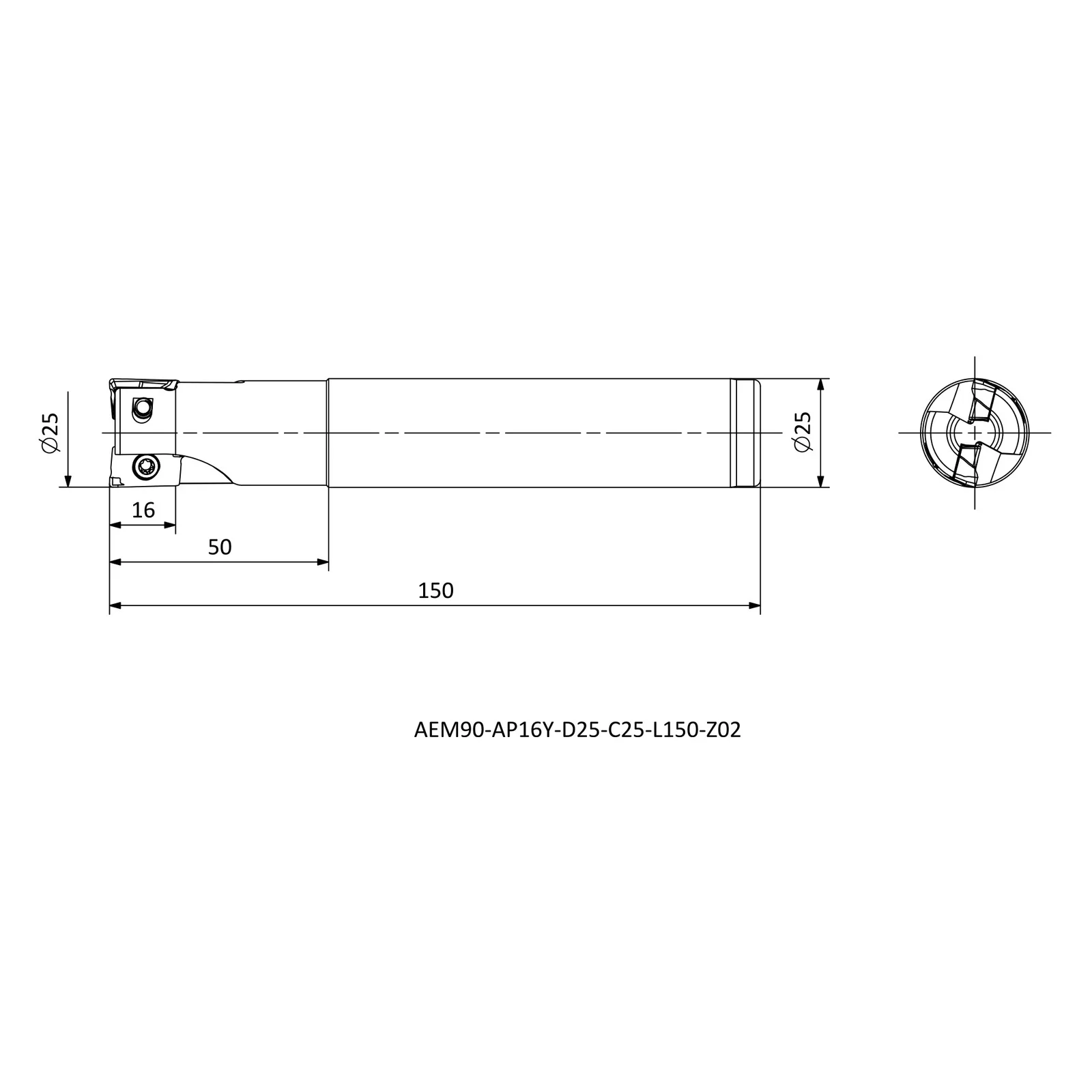

AEM90-AP16Y-D25-C25-L150-Z02
AEM90-AP-YG series · see all 14 sizes
Insert compatibility
This size is built for the insert designation AP.. 1604 (as listed in the catalogue data).
Specifications — AEM90-AP16Y-D25-C25-L150-Z02
| Insert Code | Insert designation | AP.. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in AEM90-AP-YG
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP16Y-D25-C20-L100-Z02-H | R | 25 | 20 | 100 |
| AEM90-AP16Y-D25-C25-L120-Z02 | R | 25 | 25 | 120 |
| AEM90-AP16Y-D25-C25-L150-Z02 | R | 25 | 25 | 150 |
| AEM90-AP16Y-D25-C25-L250-Z02 | R | 25 | 25 | 250 |
| AEM90-AP1135Y-D20-C20-L120-Z02 | R | 20 | 20 | 120 |
| AEM90-AP1135Y-D21-C20-L150-Z03 | R | 21 | 20 | 150 |
| AEM90-AP1135Y-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-AP1135Y-D32-W25-L110-Z04 | R | 32 | 25 | 110 |
| AEM90-AP1135Y-D25-C25-L150-Z04-H | R | 25 | 25 | 150 |
| AEM90-AP1135Y-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-AP1135Y-D16-C16-L120-Z02-H | R | 16 | 16 | 120 |
| AEM90-AP1135Y-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-AP1135Y-D17-C16-L150-Z02 | R | 17 | 16 | 150 |
| AEM90-AP1135Y-D26-C25-L150-Z03 | R | 26 | 25 | 150 |
