Tool Holders / S-System End Mills
AEM90-AP11-D22-C20-L180-Z03-H
AEM90-AP-ZCC series · see all 25 sizes
Insert compatibility
This size is built for the insert designation AP.. 11T3 (as listed in the catalogue data).

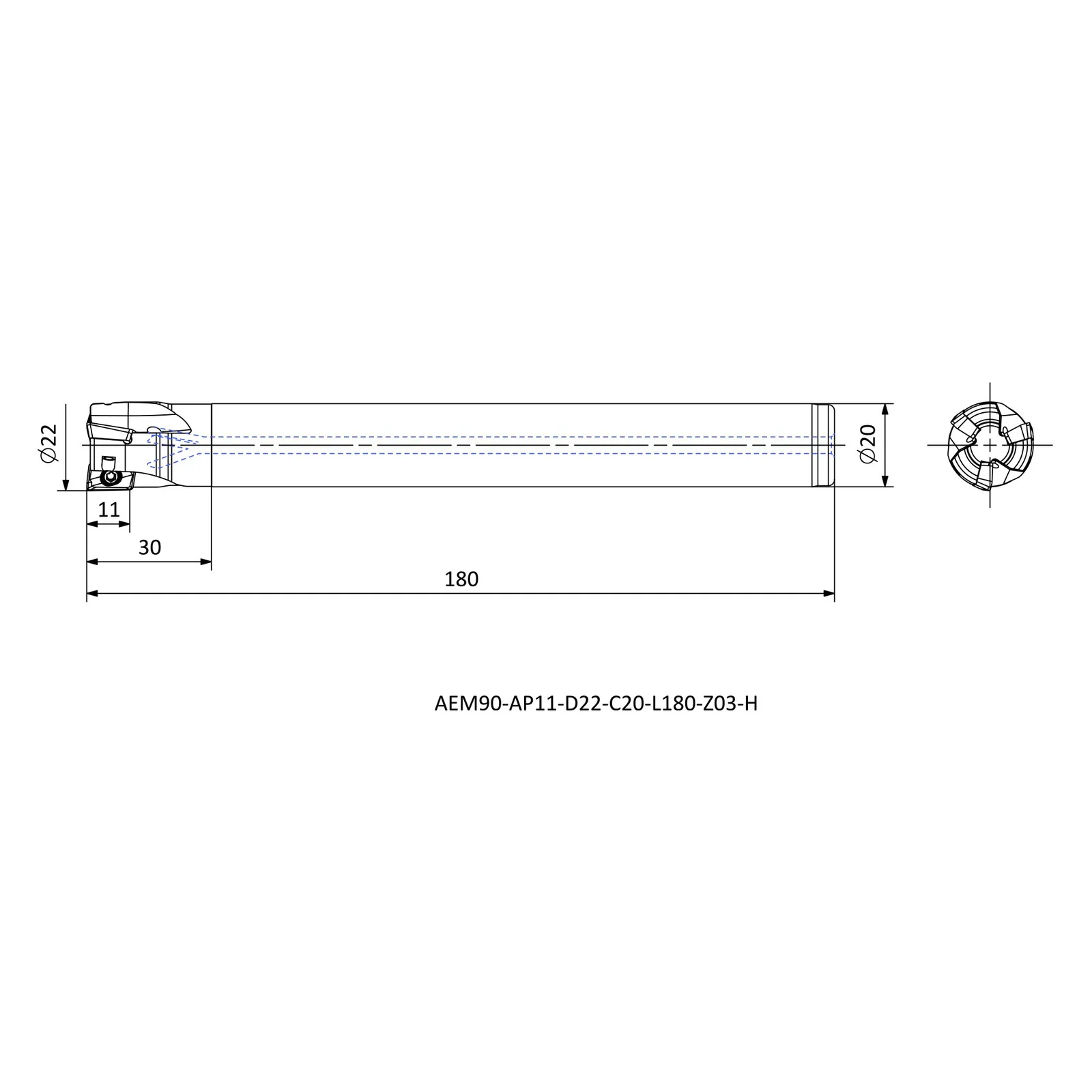

Specifications — AEM90-AP11-D22-C20-L180-Z03-H
| Insert Code | Insert designation | AP.. 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 22 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 180 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
