Tool Holders / S-System End Mills

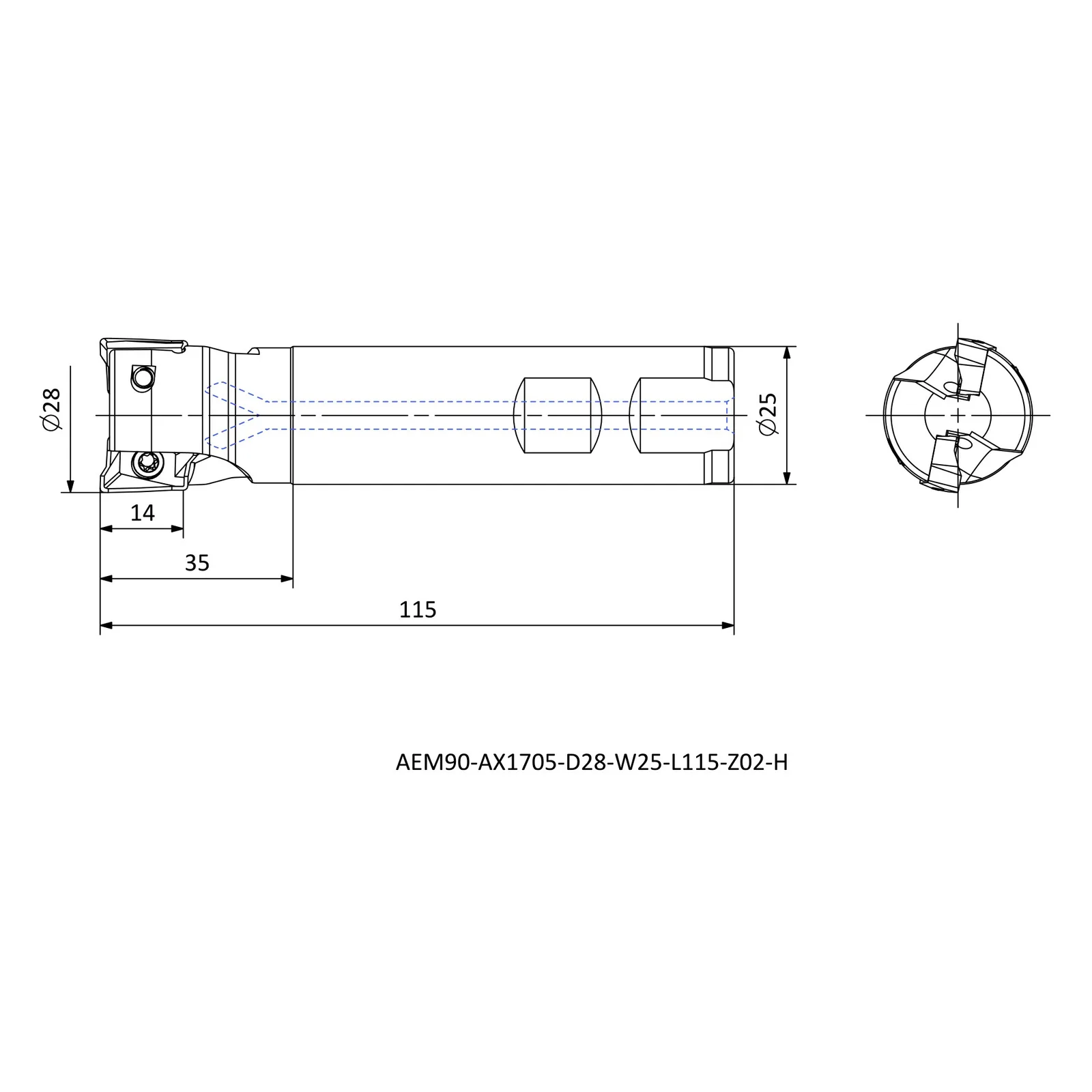

AEM90-AX1705-D28-W25-L115-Z02-H
AEM90-AX series · see all 24 sizes
Insert compatibility
This size is built for the insert designation AX.T 1705 (as listed in the catalogue data).
Specifications — AEM90-AX1705-D28-W25-L115-Z02-H
| Insert Code | Insert designation | AX.T 1705.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 28 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 115 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 14 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
