Tool Holders / S-System End Mills
AEM90-AZ11-D25-W25-L110-Z04
AEM90-AZ series · see all 24 sizes
Insert compatibility
This size is built for the insert designation AZGT 1135 (as listed in the catalogue data).

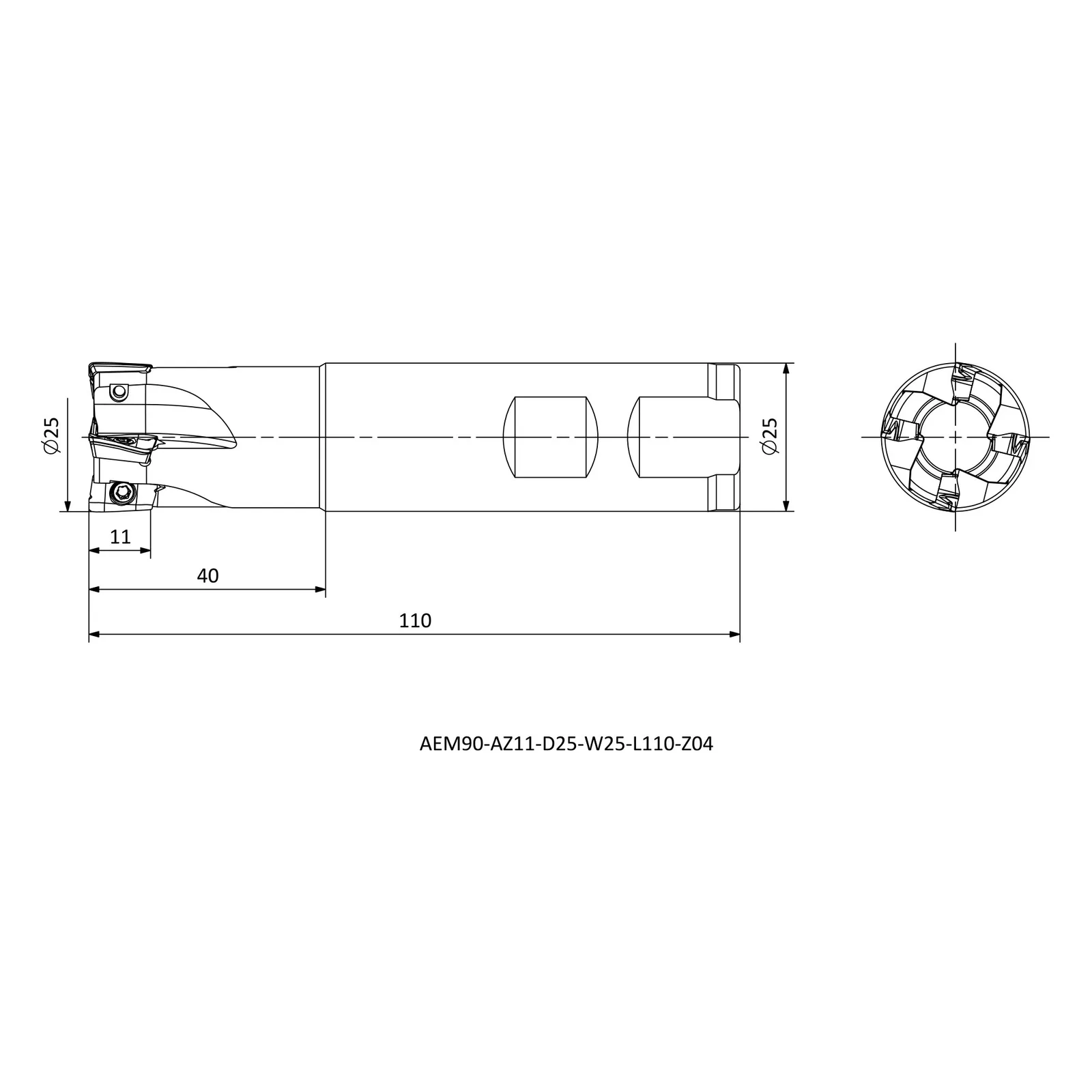

Specifications — AEM90-AZ11-D25-W25-L110-Z04
| Insert Code | Insert designation | AZGT 1135.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 110 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 24 sizes in AEM90-AZ
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AZ11-D12-W16-L90-Z01 | R | 12 | 16 | 90 |
| AEM90-AZ11-D16-C16-L200-Z02 | R | 16 | 16 | 200 |
| AEM90-AZ11-D16-W15-L170-Z02 | R | 16 | 15 | 170 |
| AEM90-AZ11-D16-W16-L100-Z02 | R | 16 | 16 | 100 |
| AEM90-AZ11-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-AZ11-D17-C16-L150-Z02 | R | 17 | 16 | 150 |
| AEM90-AZ11-D17-C16-L180-Z02 | R | 17 | 16 | 180 |
| AEM90-AZ11-D17-W16-L100-Z02 | R | 17 | 16 | 100 |
| AEM90-AZ11-D18-W16-L120-Z02 | R | 18 | 16 | 120 |
| AEM90-AZ11-D20-C20-L200-Z03 | R | 20 | 20 | 200 |
| AEM90-AZ11-D20-W19-L170-Z03 | R | 20 | 19 | 170 |
| AEM90-AZ11-D20-W20-L110-Z02 | R | 20 | 20 | 110 |
| AEM90-AZ11-D21-C20-L150-Z03 | R | 21 | 20 | 150 |
| AEM90-AZ11-D21-C20-L180-Z03 | R | 21 | 20 | 180 |
| AEM90-AZ11-D21-W20-L110-Z03 | R | 21 | 20 | 110 |
| AEM90-AZ11-D22-C20-L150-Z02 | R | 22 | 20 | 150 |
| AEM90-AZ11-D25-W25-L110-Z04 | R | 25 | 25 | 110 |
| AEM90-AZ11-D26-C25-L250-Z02 | R | 26 | 25 | 250 |
| AEM90-AZ11-D26-W25-L120-Z03 | R | 26 | 25 | 120 |
| AEM90-AZ11-D26-W25-L120-Z04 | R | 26 | 25 | 120 |
| AEM90-AZ11-D33-W32-L130-Z04 | R | 33 | 32 | 130 |
| AEM90-AZ11-D28-C25-L180-Z03 | R | 28 | 25 | 180 |
| AEM90-AZ11-D28-C25-L250-Z02 | R | 28 | 25 | 250 |
| AEM90-AZ11-D25-C24-L180-Z04 | R | 25 | 24 | 180 |
