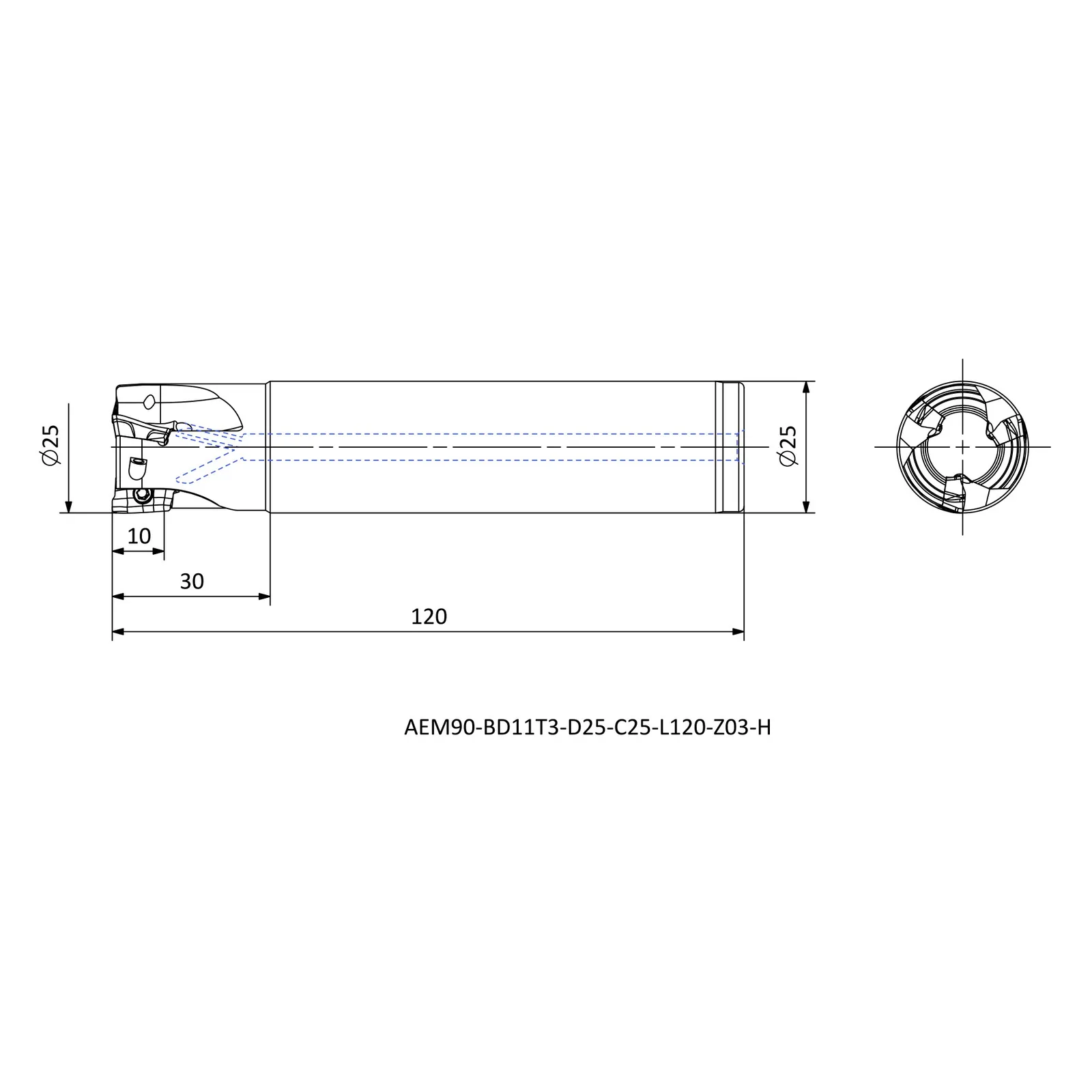

AEM90-BD11T3-D25-C25-L120-Z03-H — dimensioned drawing
Tool Holders / S-System End Mills

AEM90-BD11T3-D25-C25-L120-Z03-H

AEM90-BD series · see all 41 sizes

Insert compatibility

This size is built for the insert designation BDMT 11T3 (as listed in the catalogue data).

Ask about this size

Specifications — AEM90-BD11T3-D25-C25-L120-Z03-H

Insert Code Insert designation BDMT 11T3..
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 25
DCON Connection diameter (mm) 25
LF Functional length (mm) 120
LH Head length (mm) 30
ZEFP Effective cutting edges 3
APMX Depth of cut, maximum (mm) 10

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 41 sizes in AEM90-BD

Product codeCutting direction (hand)Cutting diameter (mm)Connection diameter (mm)Functional length (mm)
AEM90-BD11T3-D17-W16-L150-Z02 R1716150
AEM90-BD11T3-D20-W20-L100-Z02-H R2020100
AEM90-BD1704-D40-W32-L110-Z04-H R4032110
AEM90-BD11T3-D17-C16-L180-Z02 R1716180
AEM90-BD11T3-D20-W16-L61-Z03 R201661
AEM90-BD11T3-D32-C32-L130-Z04-H R3232130
AEM90-BD11T3-D32-W32-L150-Z04 R3232150
AEM90-BD1704-D32-W32-L130-Z03-H R3232130
AEM90-BD11T3-D16-W16-L100-Z02-H R1616100
AEM90-BD11T3-D16-W16-L150-Z02 R1616150
AEM90-BD11T3-D20-C20-L110-Z03-H R2020110
AEM90-BD1704-D25-W25-L100-Z02-H R2525100
AEM90-BD11T3-D16-C15-L180-Z02 R1615180
AEM90-BD11T3-D20-W20-L100-Z03-H R2020100
AEM90-BD11T3-D25-C25-L120-Z03-H R2525120
AEM90-BD1704-D32-W32-L110-Z03-H R3232110
AEM90-BD1704-D32-W32-L150-Z03 R3232150
AEM90-BD11T3-D18-W16-L100-Z02 R1816100
AEM90-BD11T3-D20-W20-L150-Z03 R2020150
AEM90-BD11T3-D25-C20-L120-Z03-H R2520120
AEM90-BD11T3-D32-W32-L110-Z04-H R3232110
AEM90-BD11T3-D16-C16-L100-Z02-H R1616100
AEM90-BD11T3-D16-C16-L160-Z02-H R1616160
AEM90-BD11T3-D20-W20-L150-Z03-H R2020150
AEM90-BD11T3-D21-W20-L150-Z03 R2120150
AEM90-BD11T3-D22-W20-L090-Z02-H R222090
AEM90-BD11T3-D25-W25-L100-Z03-H R2525100
AEM90-BD11T3-D25-W25-L150-Z03 R2525150
AEM90-BD1704-D25-C25-L210-Z02-H R2525210
AEM90-BD11T3-D20-C20-L170-Z03-H R2020170
AEM90-BD11T3-D20-W20-L81-Z03-H R202081
AEM90-BD1704-D25-W25-L150-Z02 R2525150
AEM90-BD1704-D32-C32-L130-Z03-H R3232130
AEM90-BD1704-D40-W32-L150-Z04 R4032150
AEM90-BD11T3-D18-W16-L100-Z02-H R1816100
AEM90-BD11T3-D20-W20-L150-Z02 R2020150
AEM90-BD11T3-D21-C20-L200-Z02 R2120200
AEM90-BD11T3-D22-W20-L100-Z03-H R2220100
AEM90-BD11T3-D26-C25-L250-Z02 R2625250
AEM90-BD11T3-D26-W25-L150-Z03 R2625150
AEM90-BD11T3-D40-W32-L110-Z04-H R4032110

Full specification table & catalogue PDF
