Tool Holders / S-System End Mills
AEM90-LN08-D16-W16-L150-Z02
AEM90-LN series · see all 8 sizes
Insert compatibility
This size is built for the insert designation LNMT 0804 (as listed in the catalogue data).

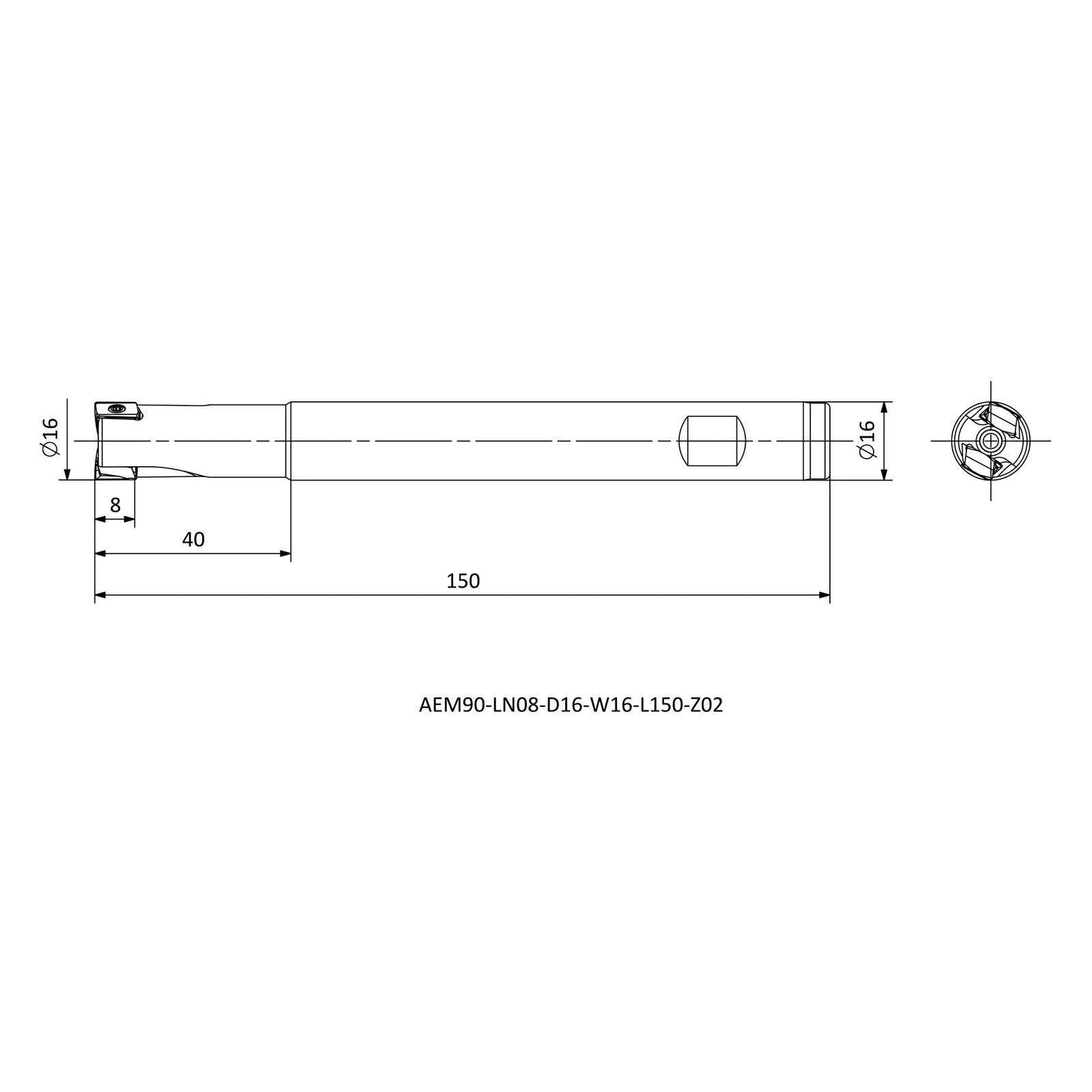

Specifications — AEM90-LN08-D16-W16-L150-Z02
| Insert Code | Insert designation | LNMT 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 16 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in AEM90-LN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-LN1306-D40-W32-L150-Z04 | R | 40 | 32 | 150 |
| AEM90-LN1306-D32-C32-L110-Z03-H | R | 32 | 32 | 110 |
| AEM90-LN08-D16-W16-L100-Z02-H | R | 16 | 16 | 100 |
| AEM90-LN08-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-LN08-D20-W20-L100-Z03-H | R | 20 | 20 | 100 |
| AEM90-LN08-D25-W25-L100-Z03-H | R | 25 | 25 | 100 |
| AEM90-LN08-D32-W32-L110-Z05-H | R | 32 | 32 | 110 |
| AEM90-LN1306-D32-W32-L150-Z03 | R | 32 | 32 | 150 |
