Tool Holders / S-System End Mills

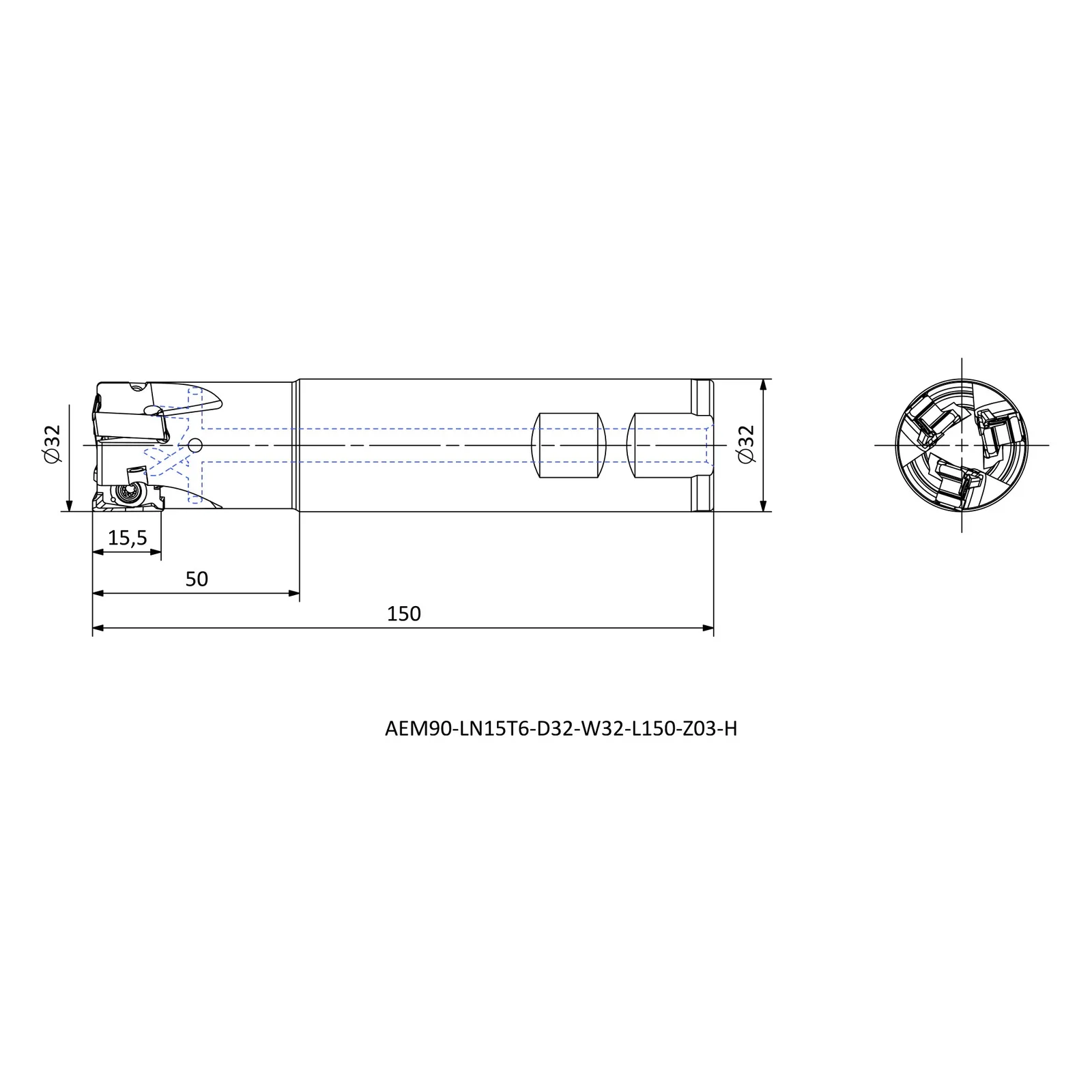

AEM90-LN15T6-D32-W32-L150-Z03-H
AEM90-LN series · see all 3 sizes
Insert compatibility
This size is built for the insert designation LNGU 15T6 (as listed in the catalogue data).
Specifications — AEM90-LN15T6-D32-W32-L150-Z03-H
| Insert Code | Insert designation | LNGU 15T6.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 15.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEM90-LN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-LN15T6-D25-W25-L150-Z02-H | R | 25 | 25 | 150 |
| AEM90-LN15T6-D32-W32-L150-Z03-H | R | 32 | 32 | 150 |
| AEM90-LN15T6-D40-W32-L150-Z03-H | R | 40 | 32 | 150 |
