Tool Holders / S-System End Mills
AEM90-LN1006-D25-W25-L120-Z03-H
AEM90-LN series · see all 9 sizes
Insert compatibility
This size is built for the insert designation LN.X 1006 (as listed in the catalogue data).

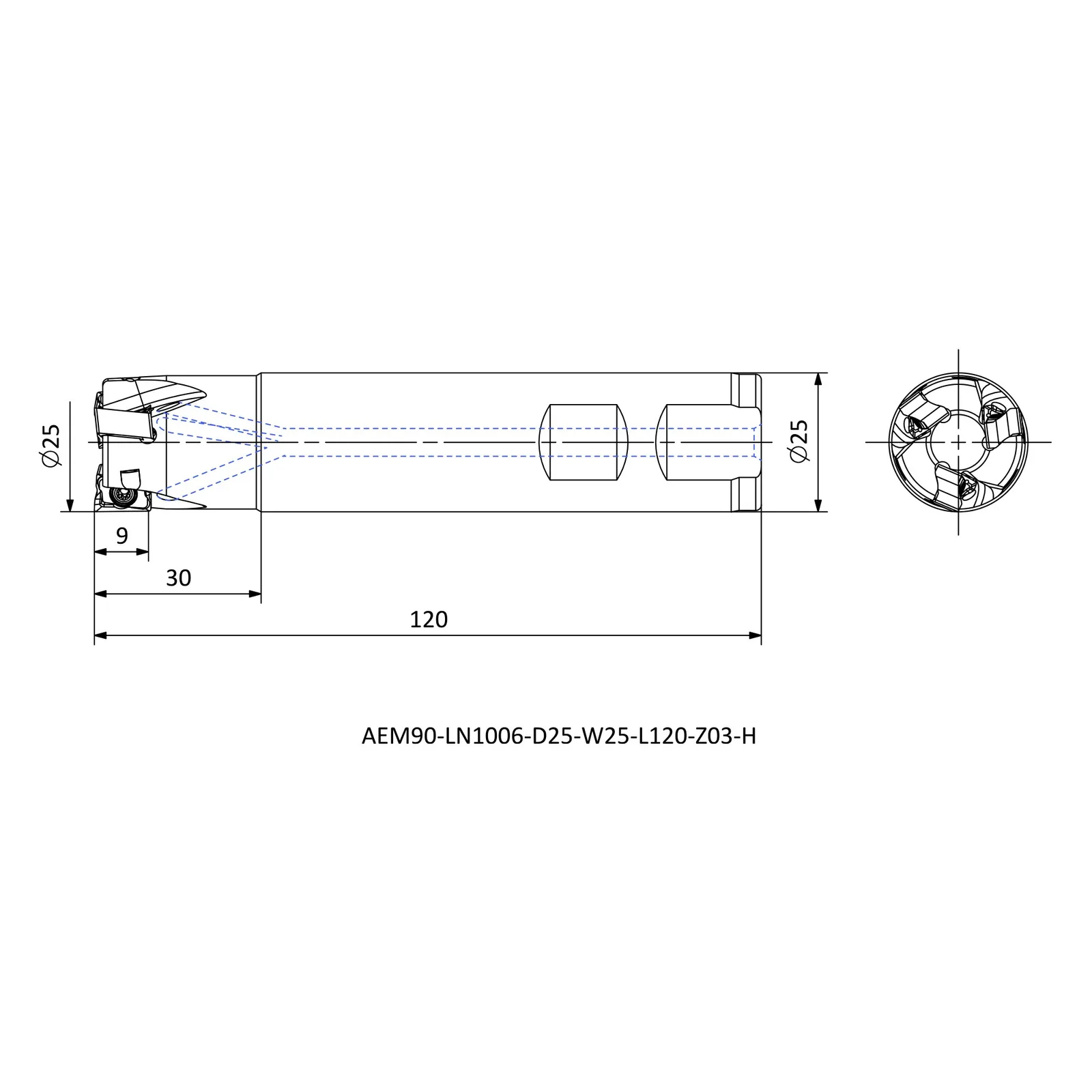

Specifications — AEM90-LN1006-D25-W25-L120-Z03-H
| Insert Code | Insert designation | LN.X 1006.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AEM90-LN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-LN1006-D16-W16-L120-Z01-H | R | 16 | 16 | 120 |
| AEM90-LN1006-D16-W16-L150-Z01 | R | 16 | 16 | 150 |
| AEM90-LN1006-D18-W16-L120-Z02-H | R | 18 | 16 | 120 |
| AEM90-LN1006-D20-W20-L120-Z02-H | R | 20 | 20 | 120 |
| AEM90-LN1006-D20-W20-L150-Z02 | R | 20 | 20 | 150 |
| AEM90-LN1006-D25-W25-L120-Z03-H | R | 25 | 25 | 120 |
| AEM90-LN1006-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-LN1006-D32-W32-L120-Z04-H | R | 32 | 32 | 120 |
| AEM90-LN1006-D32-W32-L150-Z04 | R | 32 | 32 | 150 |
