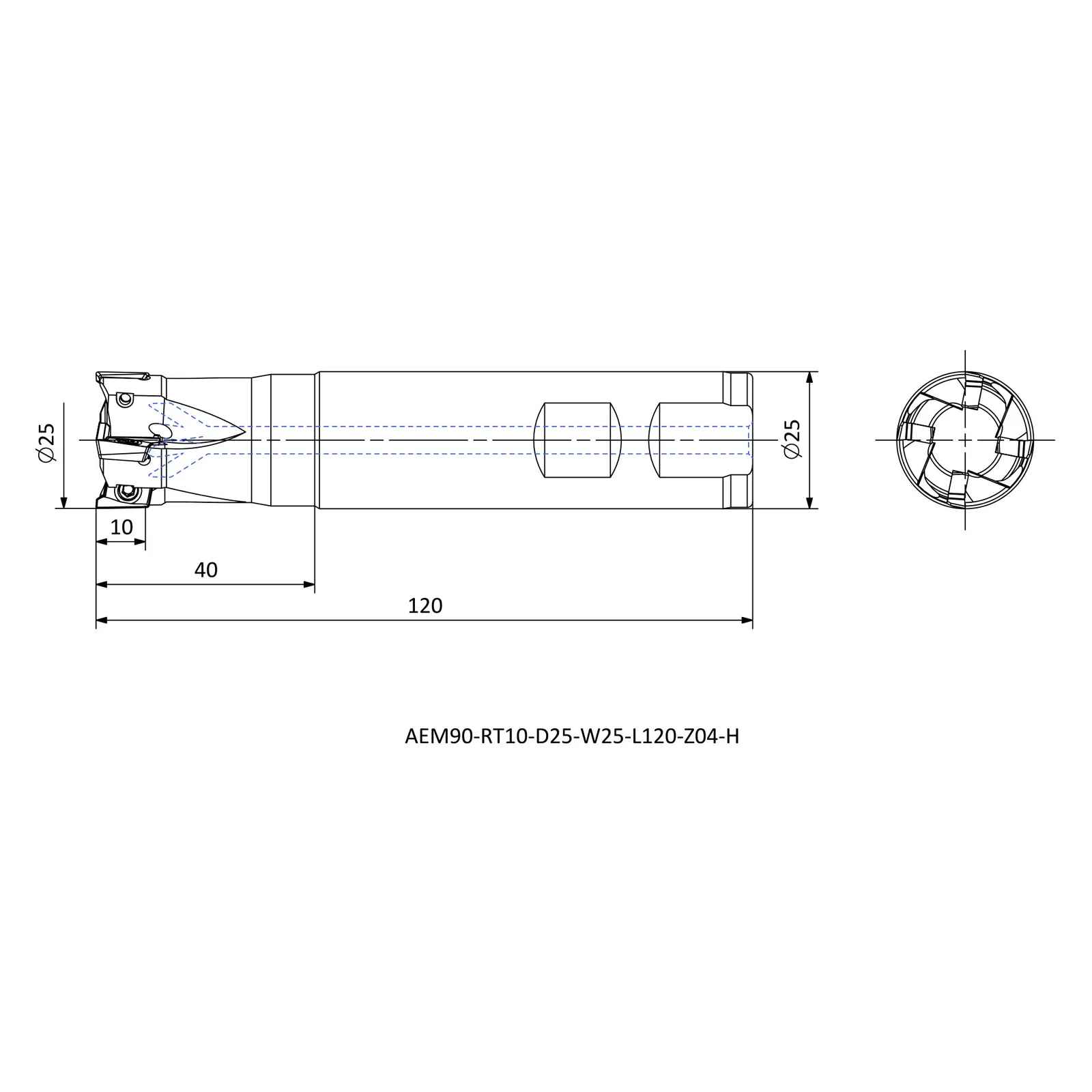

AEM90-RT10-D25-W25-L120-Z04-H — dimensioned drawing
Tool Holders / S-System End Mills

AEM90-RT10-D25-W25-L120-Z04-H

AEM90-RT series · see all 40 sizes

Insert compatibility

This size is built for the insert designation RT 1003 (as listed in the catalogue data).

Ask about this size

Specifications — AEM90-RT10-D25-W25-L120-Z04-H

Insert Code Insert designation RT 1003
Product Direction Cutting direction (hand) R
DC Cutting diameter (mm) 25
DCON Connection diameter (mm) 25
LF Functional length (mm) 120
LH Head length (mm) 40
ZEFP Effective cutting edges 4
APMX Depth of cut, maximum (mm) 10

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 40 sizes in AEM90-RT

Product codeCutting direction (hand)Cutting diameter (mm)Connection diameter (mm)Functional length (mm)
AEM90-RT10-D20-C19-L200-Z03 R2019200
AEM90-RT10-D20-C20-L110-Z03 R2020110
AEM90-RT10-D32-W32-L120-Z05-H R3232120
AEM90-RT10-D33-C32-L250-Z04 R3332250
AEM90-RT16-D25-C25-L200-Z02 R2525200
AEM90-RT16-D40-C32-L200-Z04 R432200
AEM90-RT16-D40-W32-L120-Z04-H R4032120
AEM90-RT07-D10-W10-L120-Z02 R1010120
AEM90-RT07-D12-W12-L120-Z02 R1212120
AEM90-RT16-D32-W32-L120-Z03-H R3232120
AEM90-RT07-D14-W12-L120-Z02 R1412120
AEM90-RT16-D32-C32-L200-Z03 R3232200
AEM90-RT10-D16-C16-L200-Z02 R1616200
AEM90-RT10-D17-C16-L200-Z02 R1716200
AEM90-RT10-D18-W16-L120-Z02-H R1816120
AEM90-RT10-D25-C25-L200-Z04 R2525200
AEM90-RT10-D32-C32-L200-Z05 R3232200
AEM90-RT10-D32-W32-L150-Z05 R3232150
AEM90-RT16-D25-W25-L120-Z02-H R2525120
AEM90-RT16-D40-W32-L150-Z04 R4032150
AEM90-RT07-D12-C12-L120-Z02 R1212120
AEM90-RT10-D20-W20-L150-Z03 R2020150
AEM90-RT10-D21-W20-L200-Z03 R2120200
AEM90-RT10-D16-W16-L120-Z02-H R1616120
AEM90-RT10-D20-W20-L120-Z03-H R2020120
AEM90-RT10-D22-C20-L150-Z03 R2220150
AEM90-RT10-D22-C20-L200-Z03 R2220200
AEM90-RT13-D32-C32-L250-Z04 R3232250
AEM90-RT16-D25-W25-L150-Z02 R2525150
AEM90-RT10-D25-W25-L150-Z04 R2525150
AEM90-RT16-D32-C32-L270-Z03 R3232270
AEM90-RT10-D16-W16-L150-Z02 R1616150
AEM90-RT10-D17-W16-L160-Z02 R1716160
AEM90-RT10-D20-C20-L200-Z03 R2020200
AEM90-RT10-D22-W20-L120-Z03-H R2220120
AEM90-RT10-D16-C15-L160-Z02 R1615160
AEM90-RT10-D25-W25-L120-Z04-H R2525120
AEM90-RT10-D26-C25-L250-Z04 R2625250
AEM90-RT16-D32-C32-L250-Z03 R3232250
AEM90-RT16-D32-W32-L150-Z03 R3232150

Full specification table & catalogue PDF
