Tool Holders / S-System End Mills
AEM90-SO0803-D25-C20-L110-Z02-H
AEM90-SO series · see all 3 sizes
Insert compatibility
This size is built for the insert designation SOMT 0803 (as listed in the catalogue data).

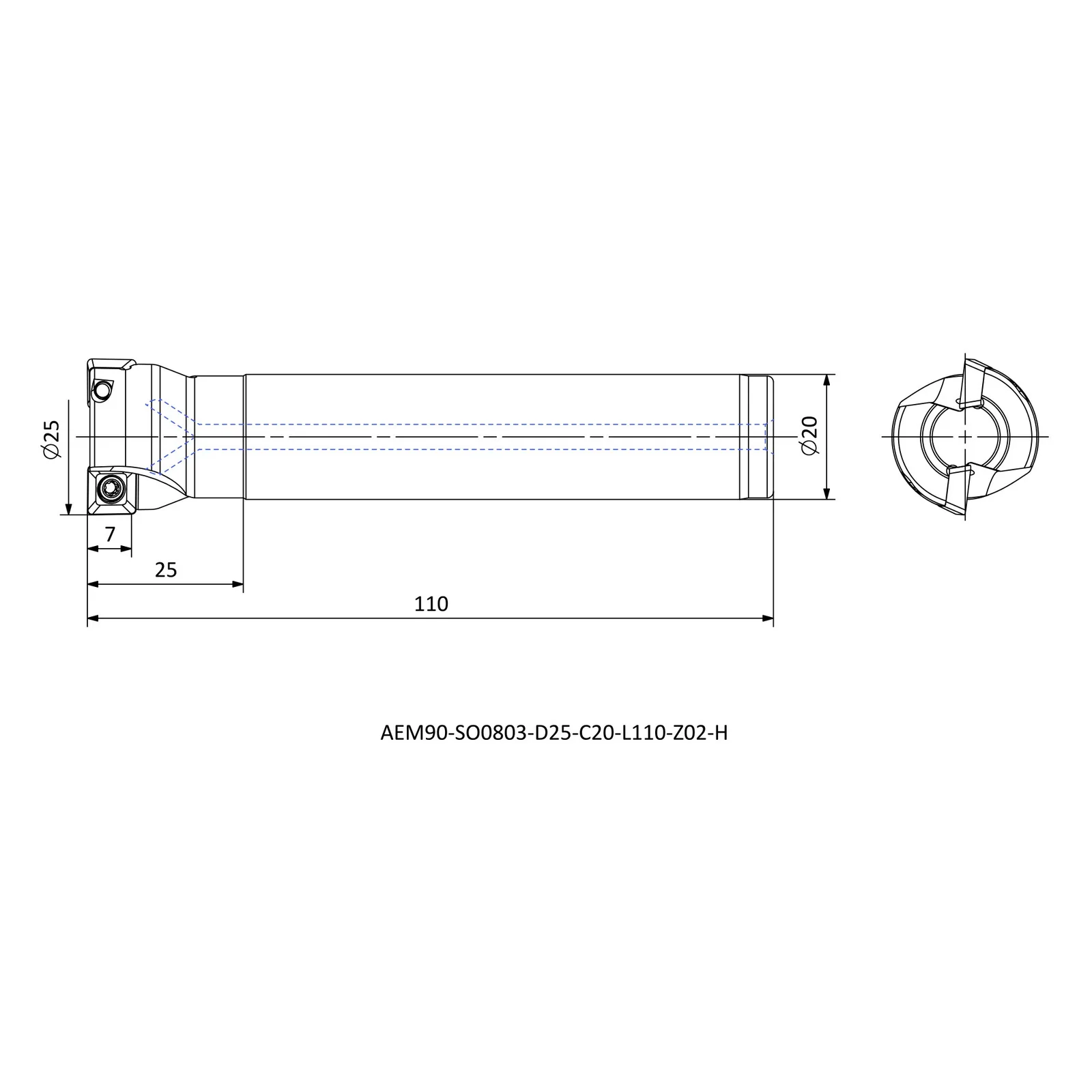

Specifications — AEM90-SO0803-D25-C20-L110-Z02-H
| Insert Code | Insert designation | SOMT 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 110 |
| LH | Head length (mm) | 25 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
