Tool Holders / S-System End Mills

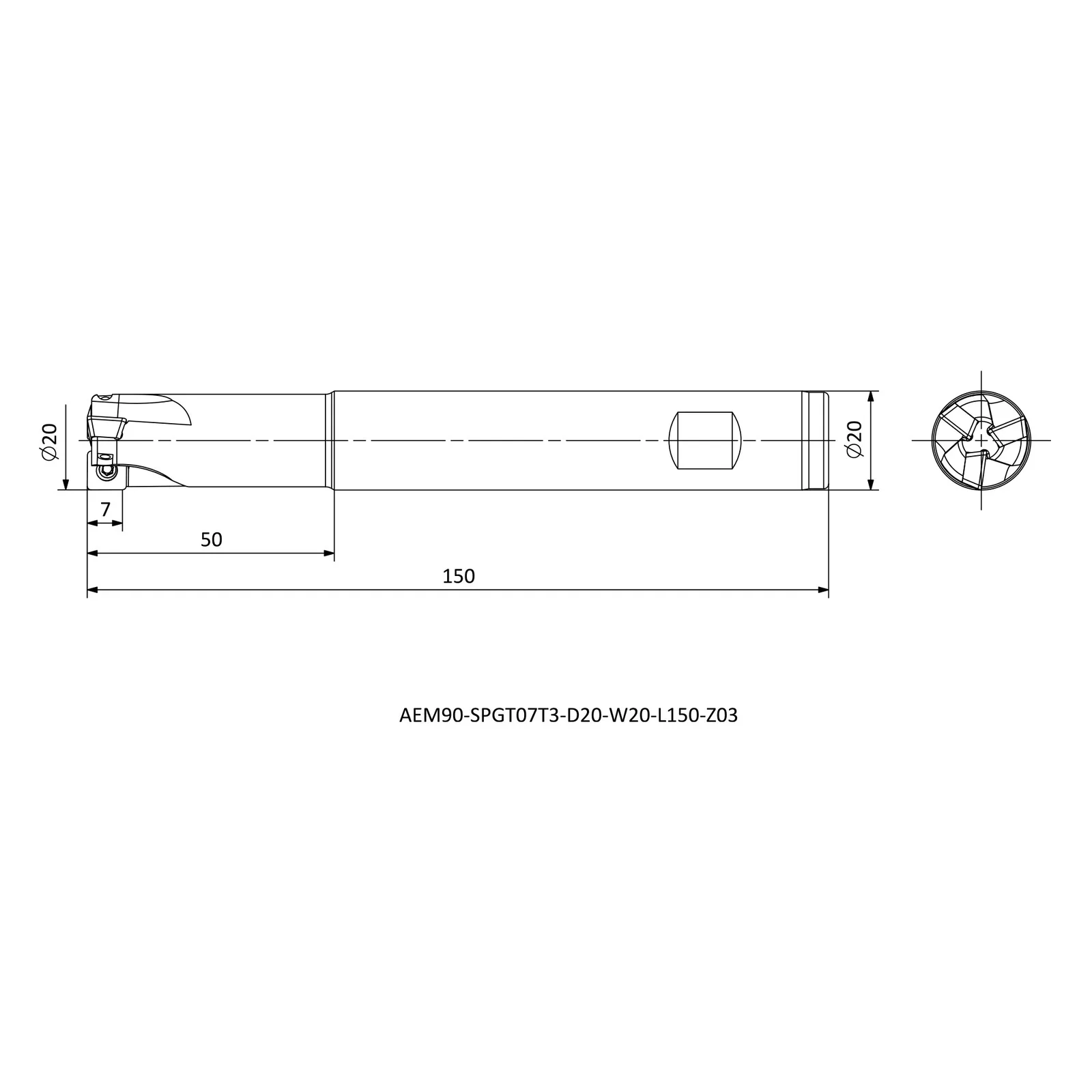

AEM90-SPGT07T3-D20-W20-L150-Z03
AEM90-SPGT series · see all 4 sizes
Insert compatibility
This size is built for the insert designation SPGT 07T308 (as listed in the catalogue data).
Specifications — AEM90-SPGT07T3-D20-W20-L150-Z03
| Insert Code | Insert designation | SPGT 07T308 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 7 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AEM90-SPGT
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-SPGT0602-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-SPGT07T3-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-SPGT07T3-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-SPGT0904-D30-W32-L150-Z03 | R | 30 | 32 | 150 |
