Tool Holders / S-System End Mills

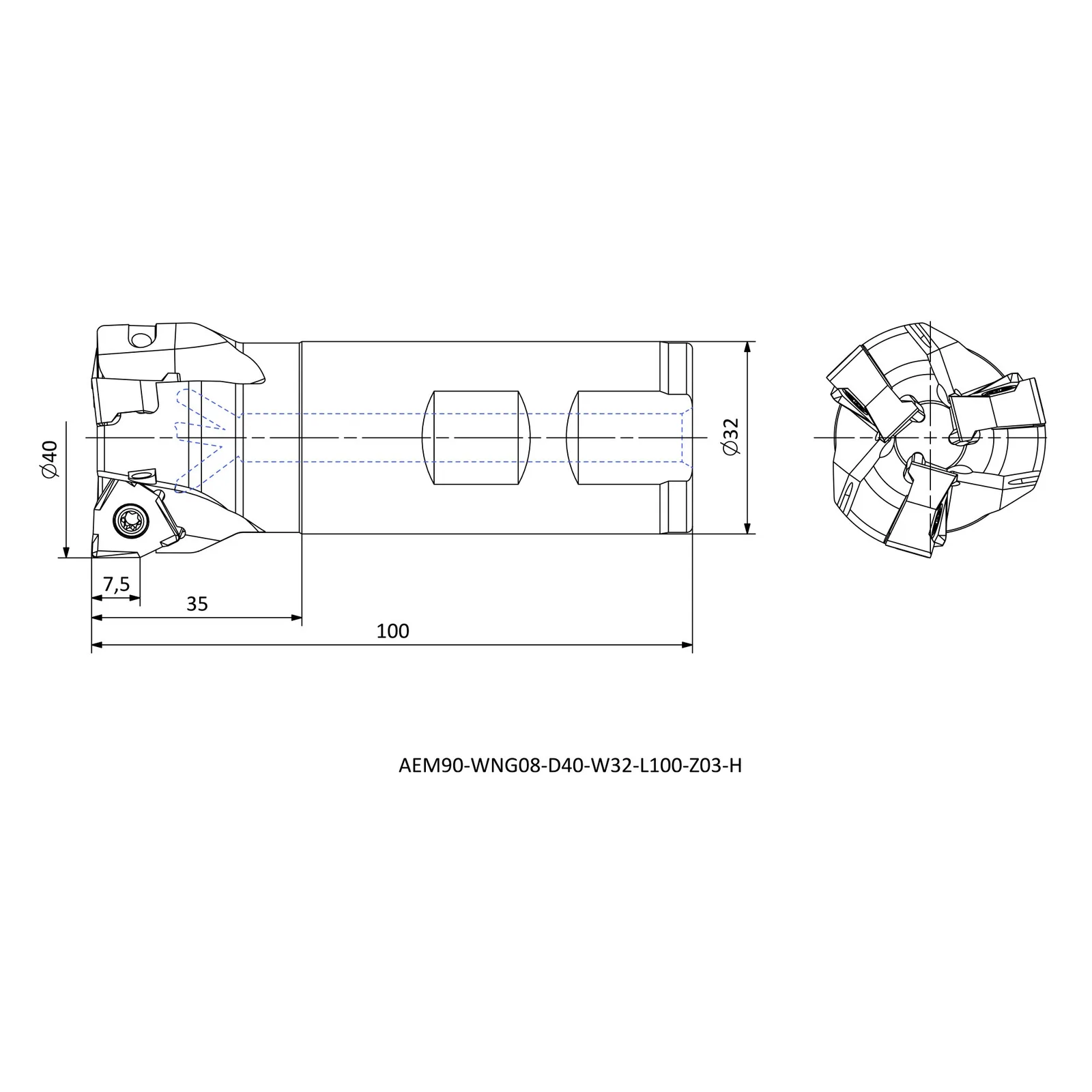

AEM90-WNG08-D40-W32-L100-Z03-H
AEM90-WNG-H series · see all 17 sizes
Insert compatibility
This size is built for the insert designation WNGU 0806 (as listed in the catalogue data).
Specifications — AEM90-WNG08-D40-W32-L100-Z03-H
| Insert Code | Insert designation | WNGU 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 100 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 7.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in AEM90-WNG-H
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-WNG04-D20-W20-L81-Z02-H | R | 20 | 20 | 81 |
| AEM90-WNG04-D20-W20-L81-Z03-H | R | 20 | 20 | 81 |
| AEM90-WNG04-D20-C20-L170-Z02-H | R | 20 | 20 | 170 |
| AEM90-WNG04-D20-C20-L170-Z03-H | R | 20 | 20 | 170 |
| AEM90-WNG04-D25-W25-L88-Z03-H | R | 25 | 25 | 88 |
| AEM90-WNG04-D25-W25-L88-Z04-H | R | 25 | 25 | 88 |
| AEM90-WNG04-D25-C25-L170-Z02-H | R | 25 | 25 | 170 |
| AEM90-WNG04-D25-C25-L170-Z03-H | R | 25 | 25 | 170 |
| AEM90-WNG04-D32-W25-L100-Z05-H | R | 32 | 25 | 100 |
| AEM90-WNG04-D32-W32-L100-Z05-H | R | 32 | 32 | 100 |
| AEM90-WNG04-D32-C32-L170-Z03-H | R | 32 | 32 | 170 |
| AEM90-WNG04-D32-C25-L170-Z04-H | R | 32 | 25 | 170 |
| AEM90-WNG04-D32-C32-L170-Z04-H | R | 32 | 32 | 170 |
| AEM90-WNG08-D32-C32-L170-Z02-H | R | 32 | 32 | 170 |
| AEM90-WNG08-D40-W32-L100-Z03-H | R | 40 | 32 | 100 |
| AEM90-WNG08-D40-W40-L110-Z03-H | R | 40 | 40 | 110 |
| AEM90-WNG08-D40-C32-L170-Z03-H | R | 40 | 32 | 170 |
