Tool Holders / S-System End Mills
AEM90-XC13-D32-W32-L150-Z04
AEM90-XC series · see all 3 sizes
Insert compatibility
This size is built for the insert designation XCKX 13T3 (as listed in the catalogue data).

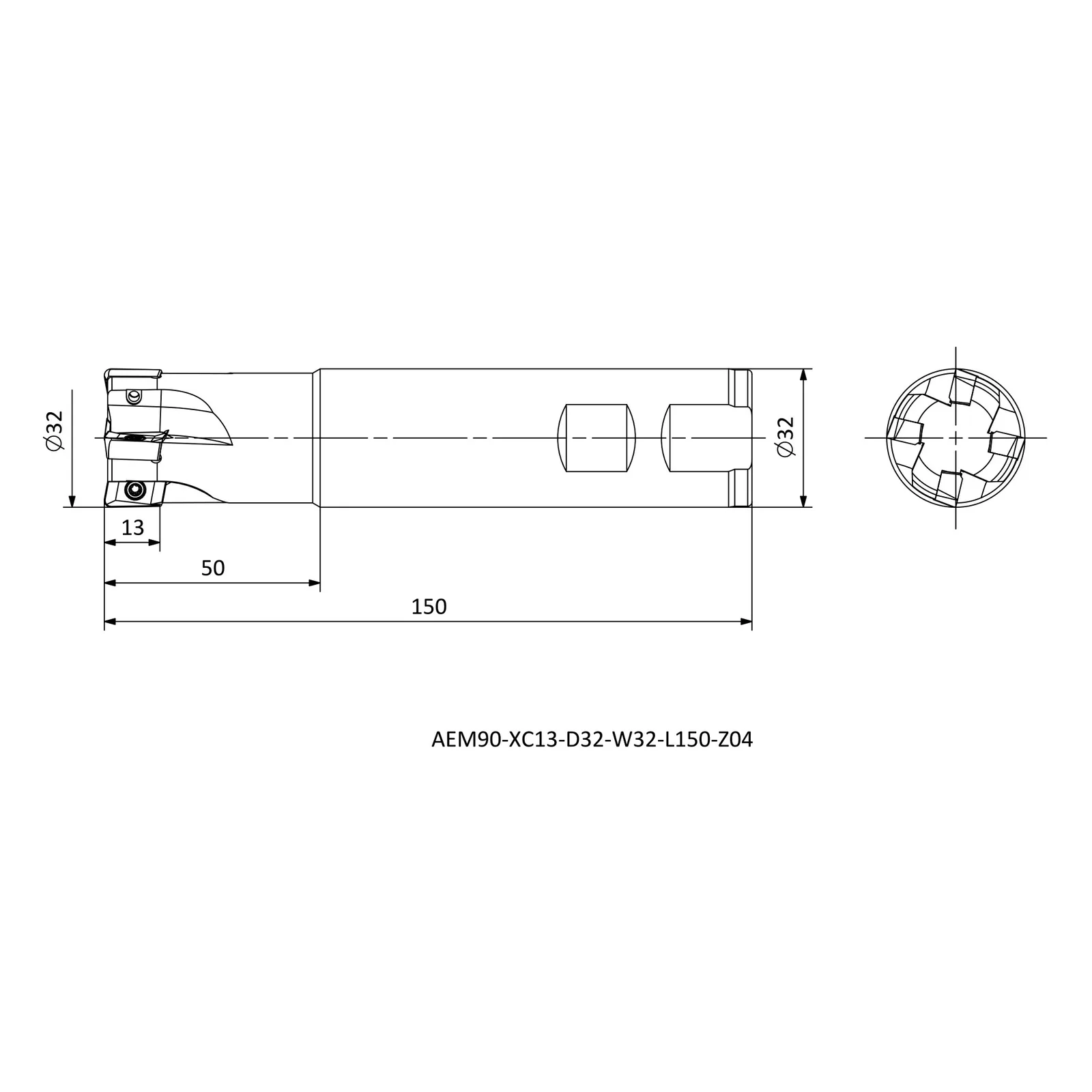

Specifications — AEM90-XC13-D32-W32-L150-Z04
| Insert Code | Insert designation | XCKX 13T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 60 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 13 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEM90-XC
