Tool Holders / S-System End Mills
AEM90-XD11T3-D25-W25-L150-Z04
AEM90-XD series · see all 9 sizes
Insert compatibility
This size is built for the insert designation XD.T 11T3 (as listed in the catalogue data).

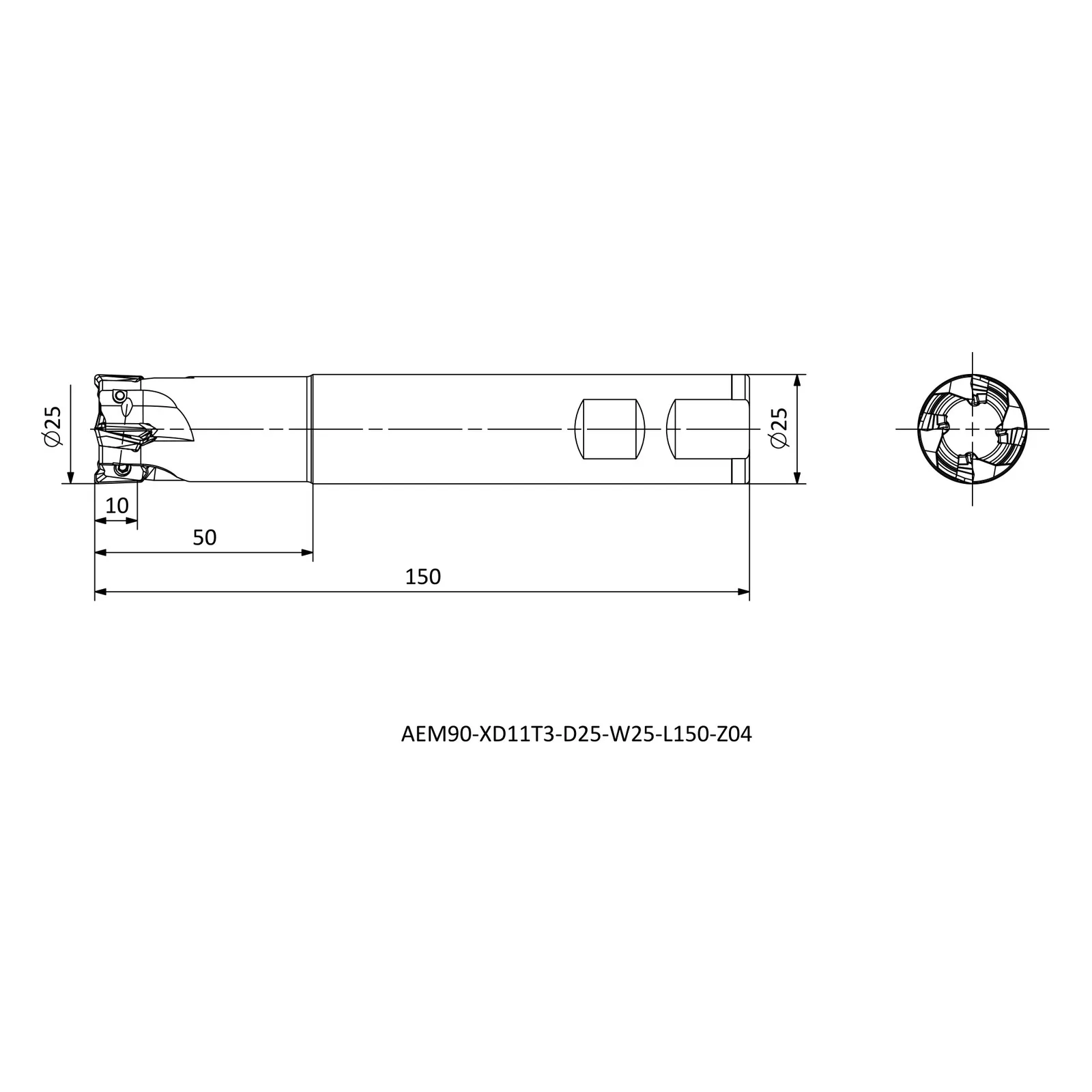

Specifications — AEM90-XD11T3-D25-W25-L150-Z04
| Insert Code | Insert designation | XD.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AEM90-XD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-XD11T3-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-XD11T3-D17-C16-L150-Z02 | R | 17 | 16 | 150 |
| AEM90-XD11T3-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-XD11T3-D21-C20-L080-Z03-H | R | 21 | 20 | 80 |
| AEM90-XD11T3-D21-C20-L150-Z03 | R | 21 | 20 | 150 |
| AEM90-XD11T3-D25-W25-L150-Z04 | R | 25 | 25 | 150 |
| AEM90-XD11T3-D30-W25-L120-Z04 | R | 30 | 25 | 120 |
| AEM90-XD11T3-D32-W32-L150-Z04 | R | 32 | 32 | 150 |
| AEM90-XD11T3-D33-C20-L080-Z04-H | R | 33 | 20 | 80 |
