Tool Holders / S-System End Mills
AEM90-XN0806-D32-C32-L110-Z02-H
AEM90-XN series · see all 5 sizes
Insert compatibility
This size is built for the insert designation XNEX 0806 (as listed in the catalogue data).

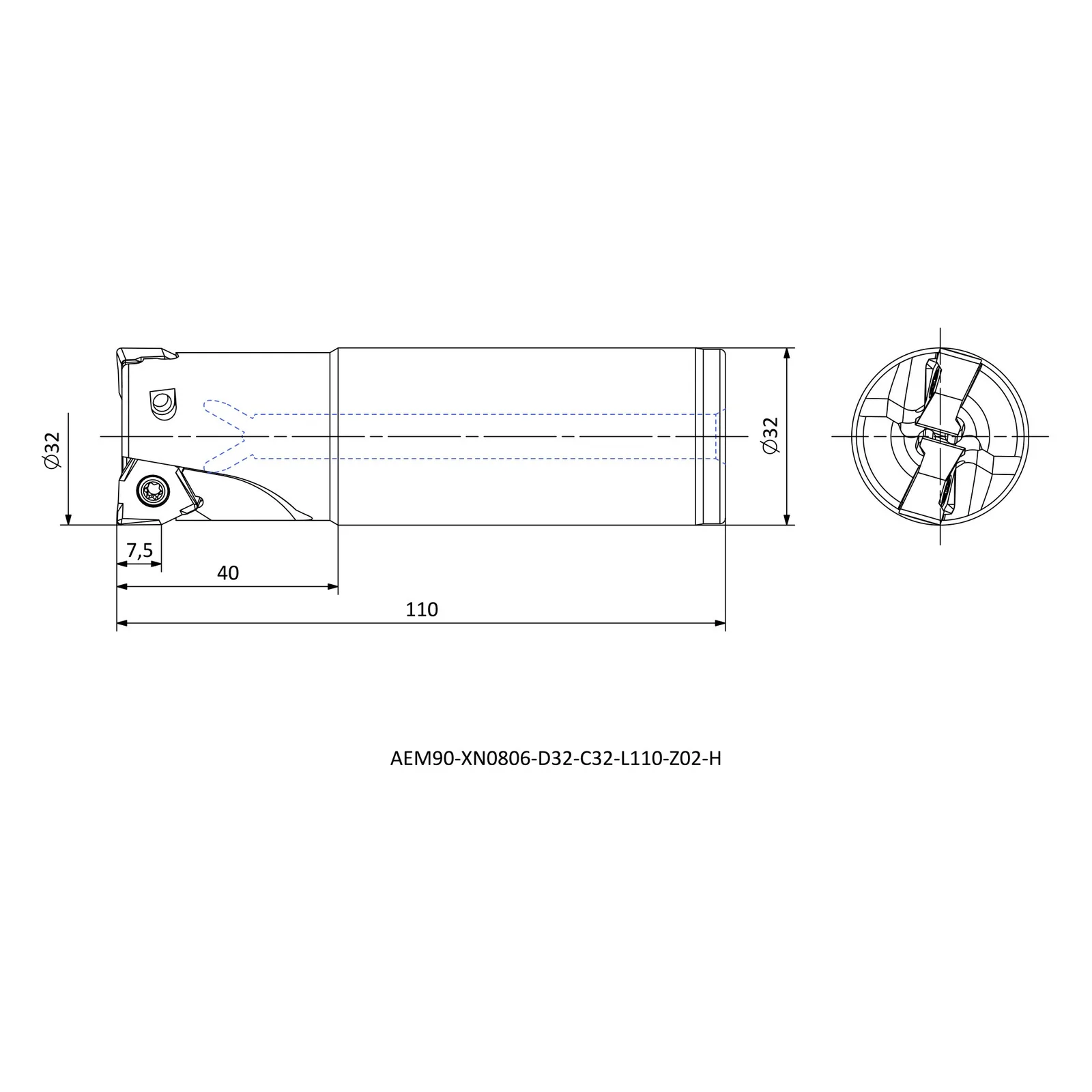

Specifications — AEM90-XN0806-D32-C32-L110-Z02-H
| Insert Code | Insert designation | XNEX 0806.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 32 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 110 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 7.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEM90-XN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-XN0403-D16-C16-L100-Z01-H | R | 16 | 16 | 100 |
| AEM90-XN0403-D20-W20-L150-Z03-H | R | 20 | 20 | 150 |
| AEM90-XN0403-D22-C20-L110-Z03-H | R | 22 | 20 | 110 |
| AEM90-XN0403-D25-W25-L150-Z04-H | R | 25 | 25 | 150 |
| AEM90-XN0806-D32-C32-L110-Z02-H | R | 32 | 32 | 110 |
