Tool Holders / S-System End Mills

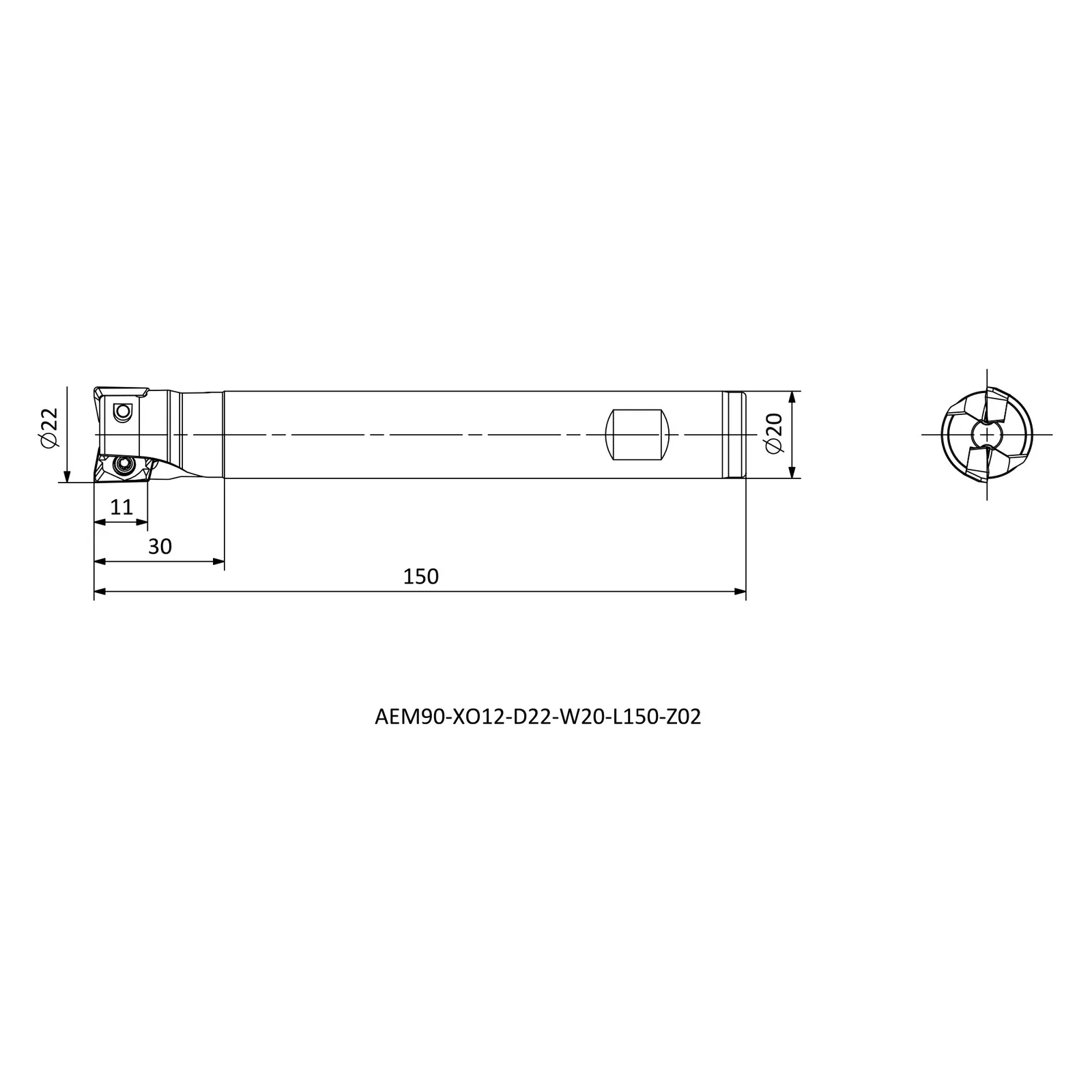

AEM90-XO12-D22-W20-L150-Z02
AEM90-XO series · see all 19 sizes
Insert compatibility
This size is built for the insert designation XO.. 1204 (as listed in the catalogue data).
Specifications — AEM90-XO12-D22-W20-L150-Z02
| Insert Code | Insert designation | XO.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 22 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 19 sizes in AEM90-XO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-XO06-D10-C10-L100-Z02-H | R | 10 | 10 | 100 |
| AEM90-XO06-D12-C12-L120-Z02-H | R | 12 | 12 | 120 |
| AEM90-XO09-D16-C16-L170-Z02-H | R | 16 | 16 | 170 |
| AEM90-XO09-D20-C20-L170-Z03-H | R | 20 | 20 | 170 |
| AEM90-XO10-D20-C19-L170-Z03-H | R | 20 | 19 | 170 |
| AEM90-XO10-D20-C20-L170-Z03-H | R | 20 | 20 | 170 |
| AEM90-XO12-D25-C25-L170-Z03-H | R | 25 | 25 | 170 |
| AEM90-XO06-D10-C12-L120-Z02 | R | 10 | 12 | 120 |
| AEM90-XO06-D12-C12-L120-Z02 | R | 12 | 12 | 120 |
| AEM90-XO09-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-XO09-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-XO12-D20-W20-L150-Z02 | R | 20 | 20 | 150 |
| AEM90-XO12-D20-C20-L200-Z02 | R | 20 | 20 | 200 |
| AEM90-XO12-D22-W20-L150-Z02 | R | 22 | 20 | 150 |
| AEM90-XO12-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-XO12-D25-C25-L200-Z03 | R | 25 | 25 | 200 |
| AEM90-XO12-D32-C25-L150-Z04 | R | 32 | 25 | 150 |
| AEM90-XO12-D32-W32-L150-Z04 | R | 32 | 32 | 150 |
| AEM90-XO12-D32-C32-L250-Z04 | R | 32 | 32 | 250 |
