Tool Holders / S-System End Mills
AEM90-ZP13T3-D33-C32-L200-Z03
AEM90-ZP series · see all 5 sizes
Insert compatibility
This size is built for the insert designation ZPMT 13T3 (as listed in the catalogue data).

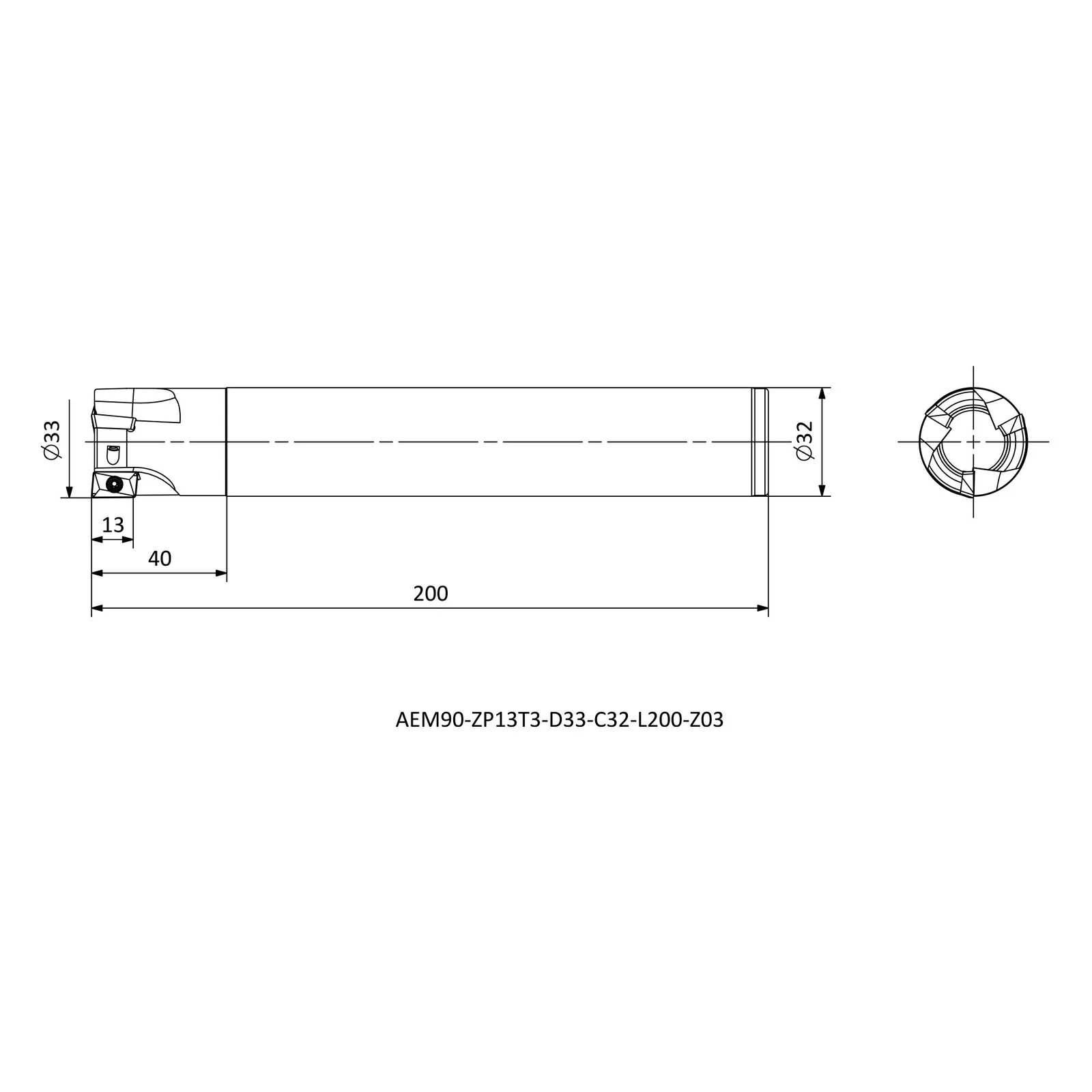

Specifications — AEM90-ZP13T3-D33-C32-L200-Z03
| Insert Code | Insert designation | ZPMT 13T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 33 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 200 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 13 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEM90-ZP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-ZP13T3-D26-C25-L200-Z02 | R | 26 | 25 | 200 |
| AEM90-ZP13T3-D26-C25-L200-Z03 | R | 26 | 25 | 200 |
| AEM90-ZP13T3-D26-C25-L250-Z02 | R | 26 | 25 | 250 |
| AEM90-ZP13T3-D33-C32-L200-Z03 | R | 33 | 32 | 200 |
| AEM90-ZP13T3-D33-C32-L250-Z03 | R | 33 | 32 | 250 |
