Tool Holders / S-System External Turning Toolholders

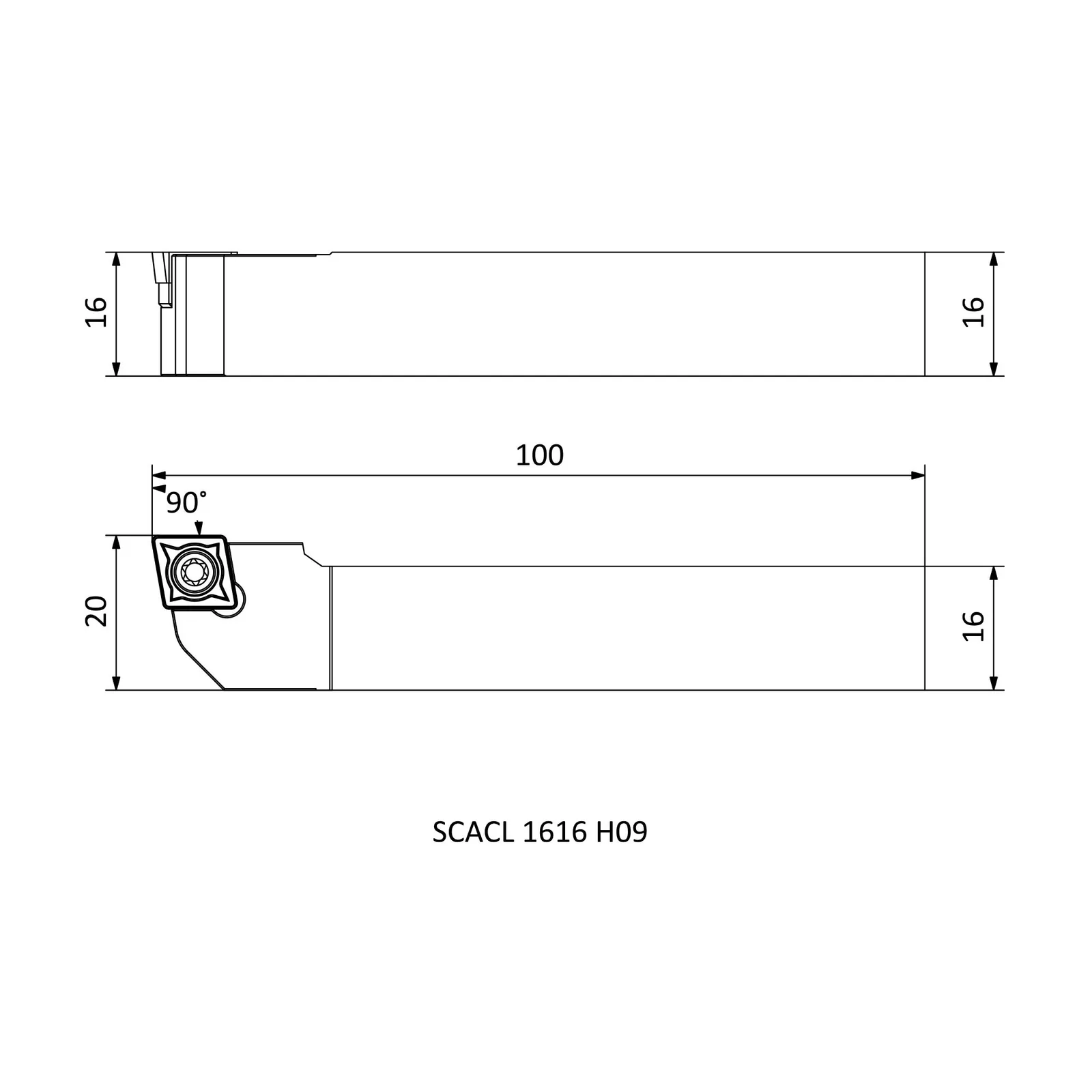

SCACL 1616 H09
SCACR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation CC.T 09T3 (as listed in the catalogue data).
Specifications — SCACL 1616 H09
| Insert Code | Insert designation | CC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 20 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in SCACR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SCACL 0808 E06 | L | 70 | 10 | 8 |
| SCACR 0808 E06 | R | 70 | 10 | 8 |
| SCACL 1010 E06 | L | 70 | 12 | 10 |
| SCACR 1010 E06 | R | 70 | 12 | 10 |
| SCACL 1212 F09 | L | 80 | 16 | 12 |
| SCACR 1212 F09 | R | 80 | 16 | 12 |
| SCACL 1616 H09 | L | 100 | 20 | 16 |
| SCACR 1616 H09 | R | 100 | 20 | 16 |
| SCACL 2020 K09 | L | 125 | 25 | 20 |
| SCACR 2020 K09 | R | 125 | 25 | 20 |
| SCACL 2020 K12 | L | 125 | 25 | 20 |
| SCACR 2020 K12 | R | 125 | 25 | 20 |
| SCACL 2525 M12 | L | 150 | 32 | 25 |
| SCACR 2525 M12 | R | 150 | 32 | 25 |
