Tool Holders / S-System External Turning Toolholders
SCMCN 1212 F06
SCMCN series · see all 7 sizes
Insert compatibility
This size is built for the insert designation CC.T 0602 (as listed in the catalogue data).

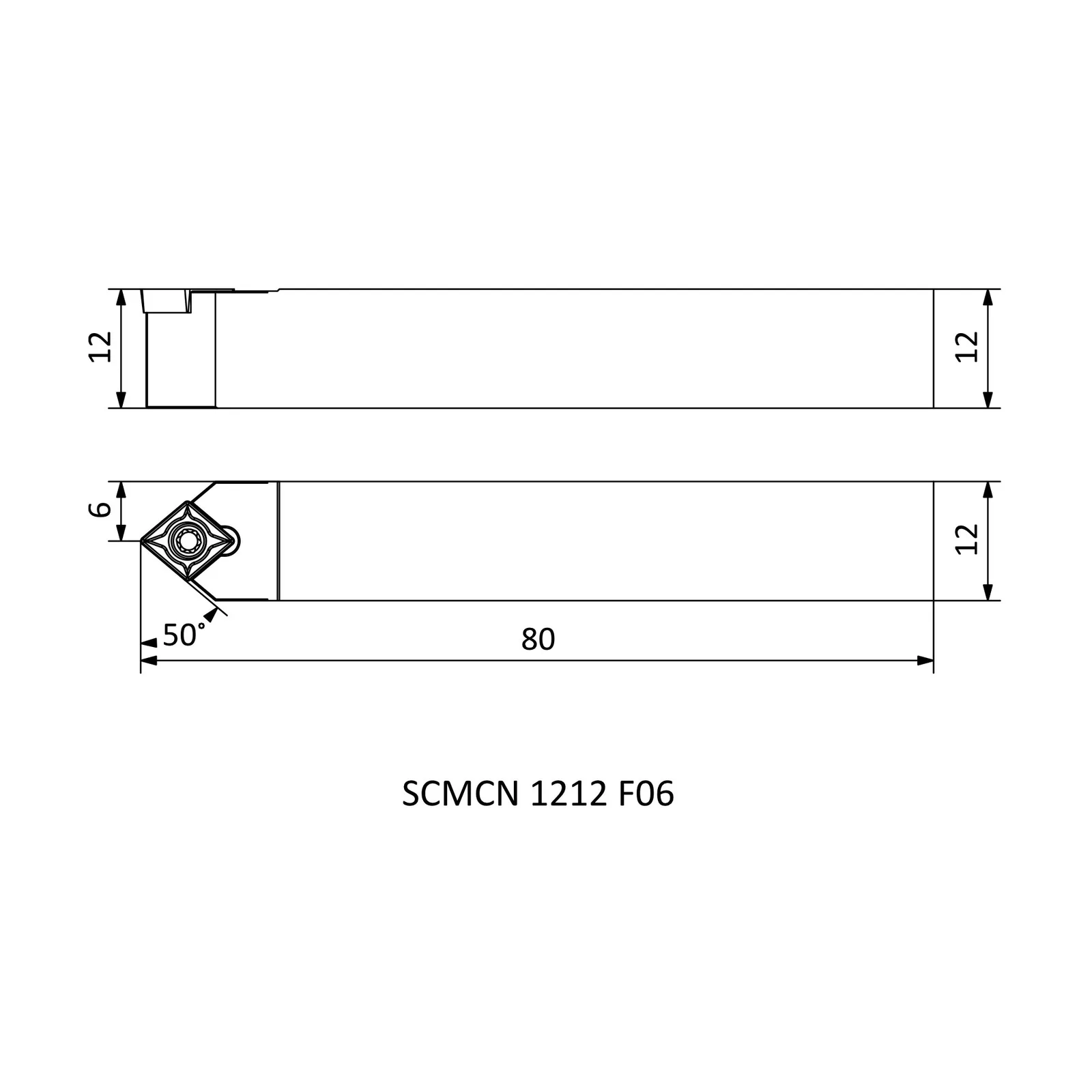

Specifications — SCMCN 1212 F06
| Insert Code | Insert designation | CC.T 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 80 |
| WF | Functional width (mm) | 6 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in SCMCN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SCMCN 0808 E06 | N | 70 | 4 | 8 |
| SCMCN 1010 E06 | N | 70 | 5 | 10 |
| SCMCN 1212 F06 | N | 80 | 6 | 12 |
| SCMCN 1212 F09 | N | 80 | 6 | 12 |
| SCMCN 1616 H09 | N | 100 | 8 | 16 |
| SCMCN 2020 K12 | N | 125 | 10 | 20 |
| SCMCN 2525 M12 | N | 150 | 12.5 | 25 |
