Tool Holders / S-System External Turning Toolholders
SDNCN 1010 E07
SDNCN series · see all 8 sizes
Insert compatibility
This size is built for the insert designation DC.T 0702 (as listed in the catalogue data).

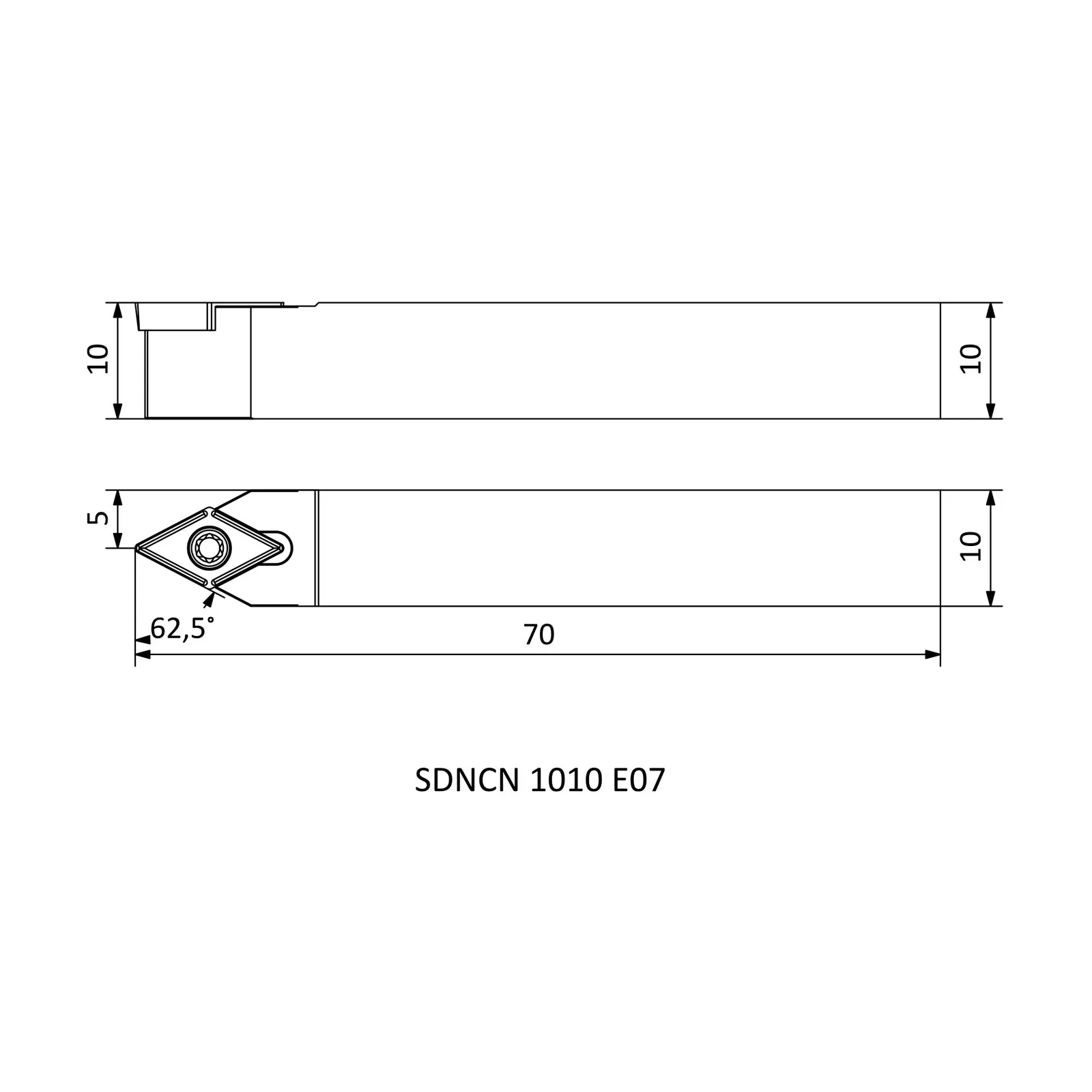

Specifications — SDNCN 1010 E07
| Insert Code | Insert designation | DC.T 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 70 |
| WF | Functional width (mm) | 5 |
| HF=H | Functional height (mm) | 10 |
| B | Shank width (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in SDNCN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SDNCN 0808 E07 | N | 70 | 4 | 8 |
| SDNCN 1010 E07 | N | 70 | 5 | 10 |
| SDNCN 1212 F07 | N | 80 | 6 | 12 |
| SDNCN 1616 H07 | N | 100 | 8 | 16 |
| SDNCN 1616 H11 | N | 100 | 8 | 16 |
| SDNCN 2020 K11 | N | 125 | 10 | 20 |
| SDNCN 2525 M11 | N | 150 | 12.5 | 25 |
| SDNCN 3232 P11 | N | 170 | 16 | 32 |
