Tool Holders / S-System External Turning Toolholders
SRGCR 3232 P10C
SRGCR/L series · see all 24 sizes
Insert compatibility
This size is built for the insert designation RC.T 10T3 (as listed in the catalogue data).

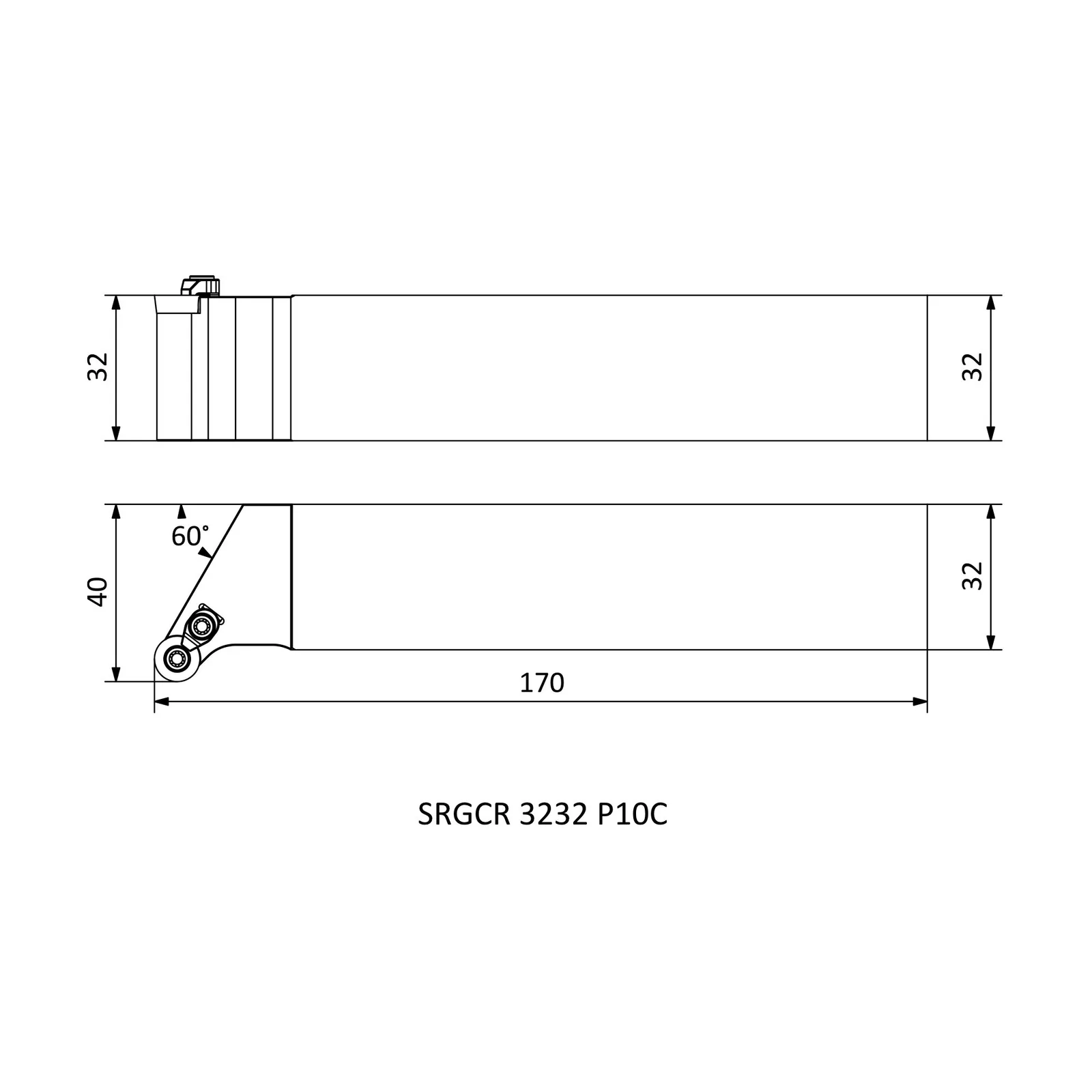

Specifications — SRGCR 3232 P10C
| Insert Code | Insert designation | RC.T 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 24 sizes in SRGCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SRGCL 1616 H08C | L | 100 | 20 | 16 |
| SRGCL 2020 K10C | L | 125 | 25 | 20 |
| SRGCR 1616 H06 | R | 100 | 20 | 16 |
| SRGCR 1616 H08C | R | 100 | 20 | 16 |
| SRGCR 2020 K08C | R | 125 | 25 | 20 |
| SRGCR 2525 M12C | R | 150 | 32 | 25 |
| SRGCL 2020 K06 | L | 125 | 25 | 20 |
| SRGCR 2525 M10C | R | 150 | 32 | 25 |
| SRGCL 1616 H06 | L | 100 | 20 | 16 |
| SRGCL 1616 H10C | L | 100 | 20 | 16 |
| SRGCL 2020 K12C | L | 125 | 25 | 20 |
| SRGCL 3232 P10C | L | 170 | 40 | 32 |
| SRGCL 3232 P12C | L | 170 | 40 | 32 |
| SRGCL 2020 K08C | L | 125 | 25 | 20 |
| SRGCL 2525 M10C | L | 150 | 32 | 25 |
| SRGCR 1616 H10C | R | 100 | 20 | 16 |
| SRGCR 2020 K06 | R | 125 | 25 | 20 |
| SRGCR 2020 K10C | R | 125 | 25 | 20 |
| SRGCR 2020 K12C | R | 125 | 25 | 20 |
| SRGCR 3232 P12C | R | 170 | 40 | 32 |
| SRGCL 2525 M08C | L | 150 | 32 | 25 |
| SRGCL 2525 M12C | L | 150 | 32 | 25 |
| SRGCR 2525 M08C | R | 150 | 32 | 25 |
| SRGCR 3232 P10C | R | 170 | 40 | 32 |
