Tool Holders / S-System External Turning Toolholders
SRHCL 2525 K12
SRHCR/L series · see all 10 sizes
Insert compatibility
This size is built for the insert designation RC.T 1204 (as listed in the catalogue data).

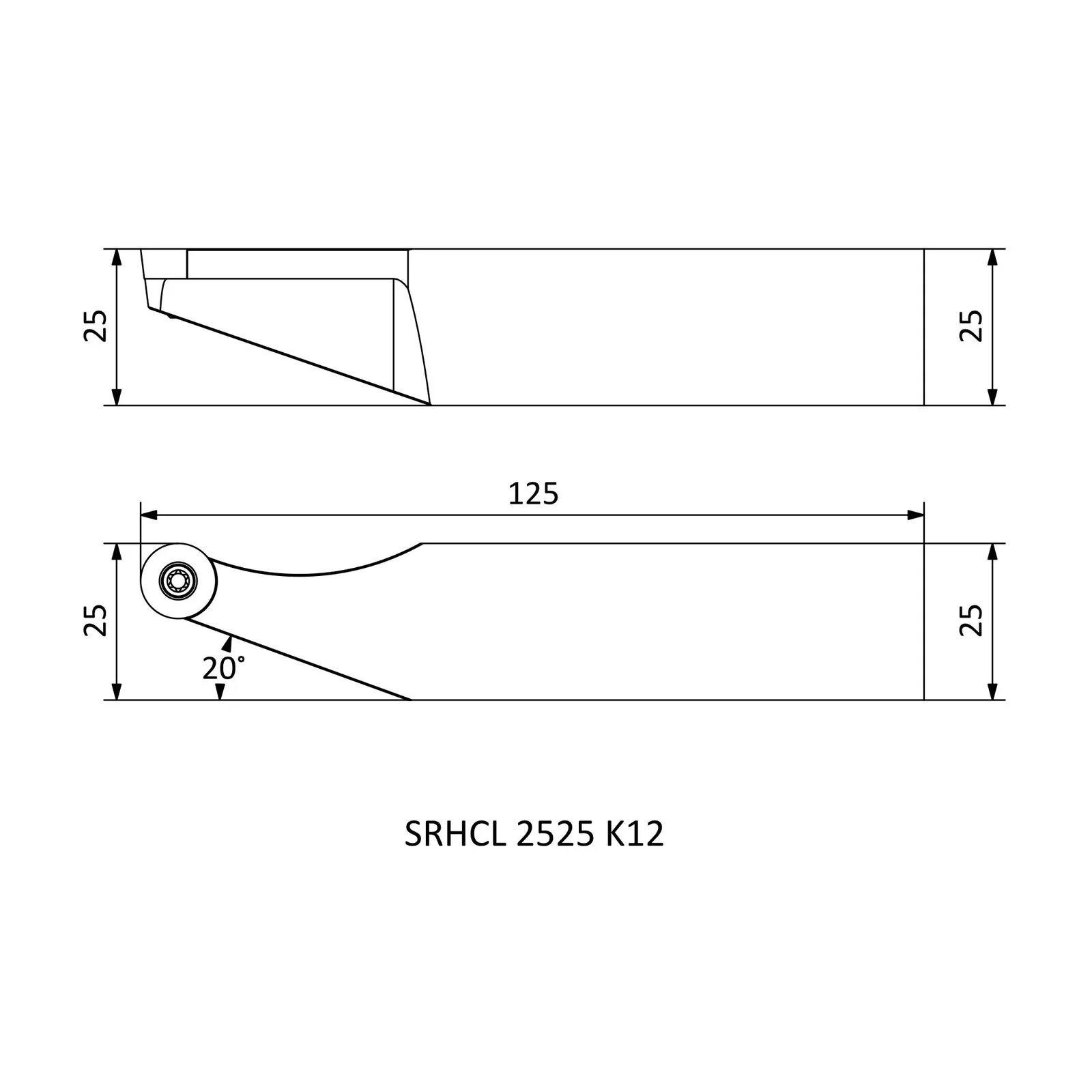

Specifications — SRHCL 2525 K12
| Insert Code | Insert designation | RC.T 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
| MIN R | MIN R | 40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in SRHCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SRHCL 2525 K06 | L | 125 | 25 | 25 |
| SRHCR 2525 K06 | R | 125 | 25 | 25 |
| SRHCL 2525 K08 | L | 125 | 25 | 25 |
| SRHCR 2525 K08 | R | 125 | 25 | 25 |
| SRHCL 2525 K10 | L | 125 | 25 | 25 |
| SRHCR 2525 K10 | R | 125 | 25 | 25 |
| SRHCL 2525 K12 | L | 125 | 25 | 25 |
| SRHCR 2525 K12 | R | 125 | 25 | 25 |
| SRHCL 2525 K16 | L | 125 | 25 | 25 |
| SRHCR 2525 K16 | R | 125 | 25 | 25 |
