Tool Holders / S-System External Turning Toolholders

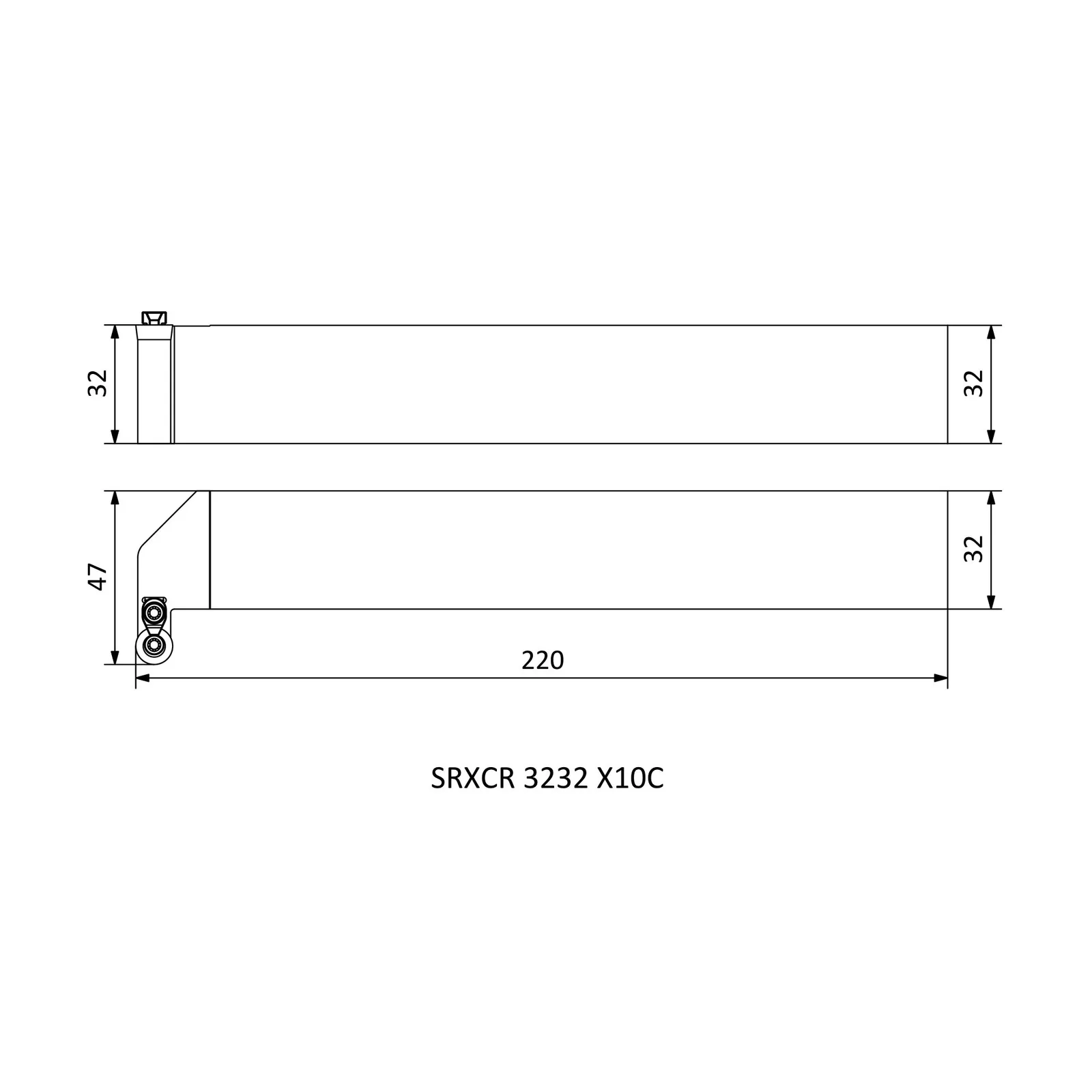

SRXCR 3232 X10C
SRXCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation RC.T 10T3 (as listed in the catalogue data).
Specifications — SRXCR 3232 X10C
| Insert Code | Insert designation | RC.T 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 220 |
| WF | Functional width (mm) | 47 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SRXCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SRXCL 3232 X08C | L | 220 | 47 | 32 |
| SRXCR 3232 X08C | R | 220 | 47 | 32 |
| SRXCL 3232 X10C | L | 220 | 47 | 32 |
| SRXCR 3232 X10C | R | 220 | 47 | 32 |
| SRXCL 3232 X12C | L | 220 | 47 | 32 |
| SRXCR 3232 X12C | R | 220 | 47 | 32 |
