Tool Holders / S-System External Turning Toolholders
SSDCN 2020 K12
SSDCN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation SC.T 1204 (as listed in the catalogue data).

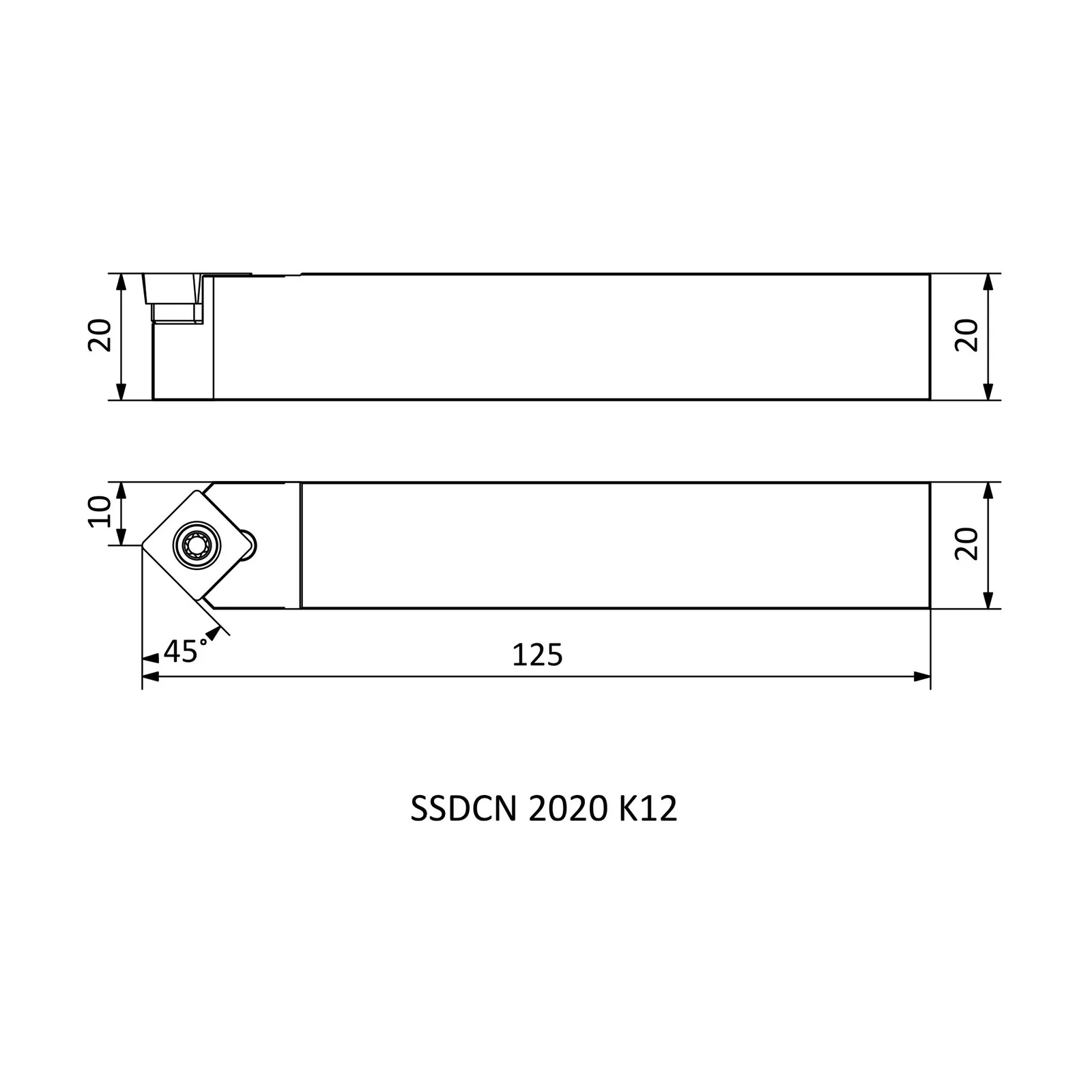

Specifications — SSDCN 2020 K12
| Insert Code | Insert designation | SC.T 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 10 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SSDCN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SSDCN 1212 F09 | N | 80 | 6 | 12 |
| SSDCN 1616 H09 | N | 100 | 8 | 16 |
| SSDCN 2020 K09 | N | 125 | 10 | 20 |
| SSDCN 1616 H12 | N | 100 | 8 | 16 |
| SSDCN 2020 K12 | N | 125 | 10 | 20 |
| SSDCN 2525 M12 | N | 150 | 12.5 | 25 |
