Tool Holders / S-System External Turning Toolholders

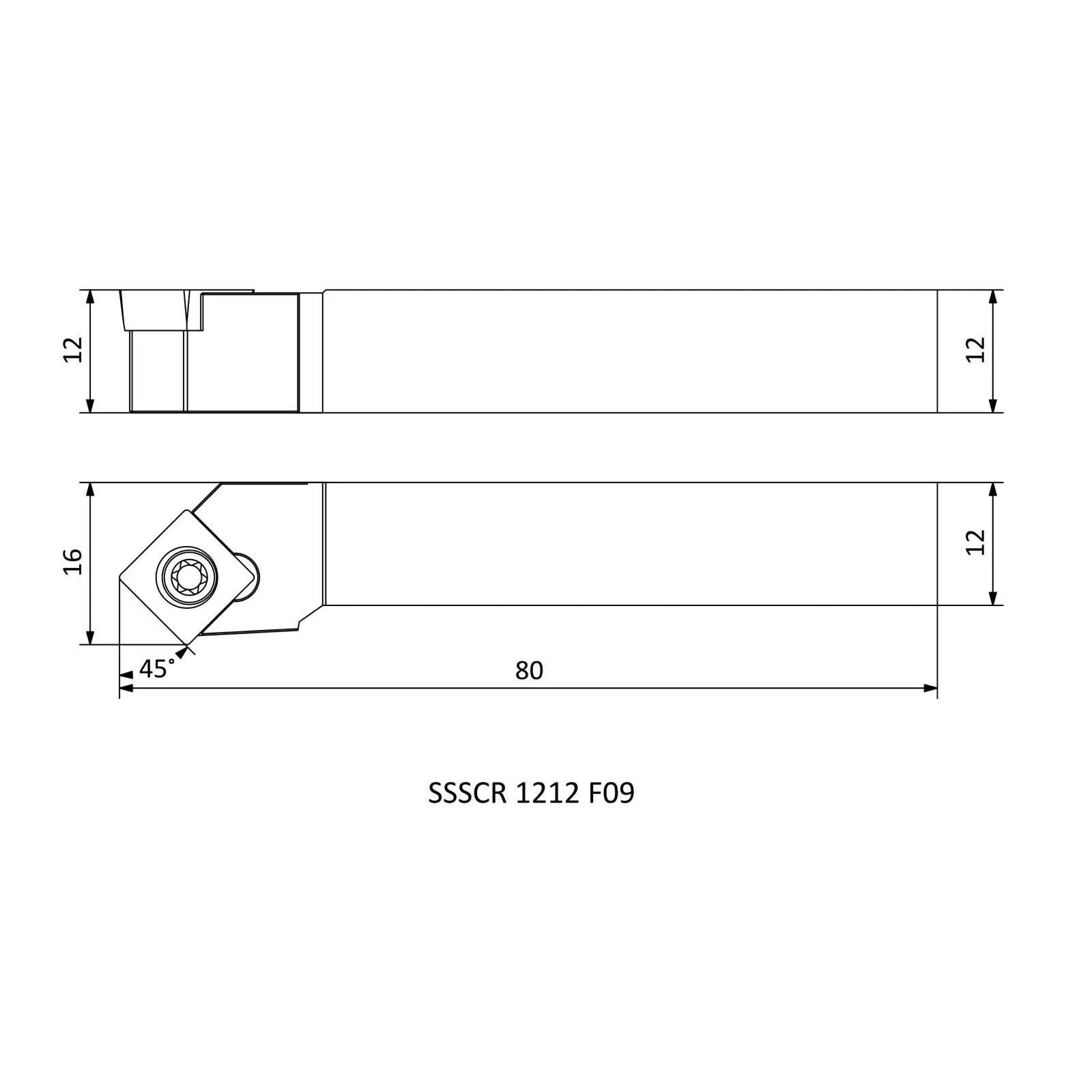

SSSCR 1212 F09
SSSCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation SC.T 09T3 (as listed in the catalogue data).
Specifications — SSSCR 1212 F09
| Insert Code | Insert designation | SC.T 09T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 80 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SSSCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SSSCL 1212 F09 | L | 80 | 16 | 12 |
| SSSCR 1212 F09 | R | 80 | 16 | 12 |
| SSSCL 1616 H09 | L | 100 | 20 | 16 |
| SSSCR 1616 H09 | R | 100 | 20 | 16 |
| SSSCL 2020 K09 | L | 125 | 25 | 20 |
| SSSCR 2020 K09 | R | 125 | 25 | 20 |
| SSSCL 1616 H12 | L | 100 | 20 | 16 |
| SSSCR 1616 H12 | R | 100 | 20 | 16 |
| SSSCL 2020 K12 | L | 125 | 25 | 20 |
| SSSCR 2020 K12 | R | 125 | 25 | 20 |
| SSSCL 2525 M12 | L | 150 | 32 | 25 |
| SSSCR 2525 M12 | R | 150 | 32 | 25 |
