Tool Holders / S-System External Turning Toolholders
STCCN 3232 R16
STCCN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

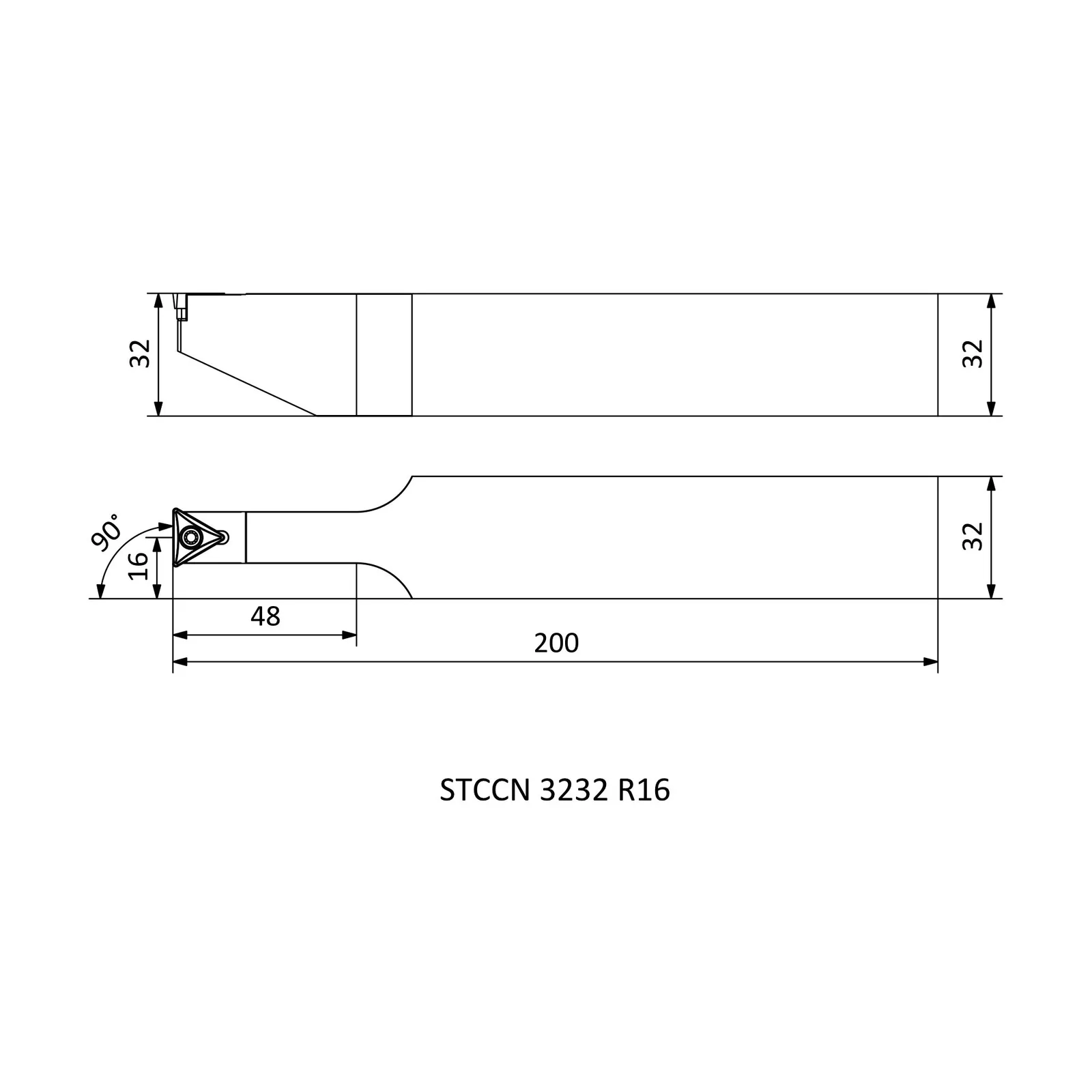

Specifications — STCCN 3232 R16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LU | Usable length (mm) | 78 |
| LF | Functional length (mm) | 200 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in STCCN
| Product code | Cutting direction (hand) | Usable length (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| STCCN 2020 L11 | N | 50 | 140 | 10 |
| STCCN 1616 K16 | N | 24 | 125 | 8 |
| STCCN 2020 M16 | N | 30 | 150 | 10 |
| STCCN 2525 P16 | N | 37.5 | 170 | 12.5 |
| STCCN 3232 R16 | N | 78 | 200 | 16 |
