Tool Holders / S-System External Turning Toolholders
STGCR 0808 E09
STGCR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation TC.T 0902 (as listed in the catalogue data).

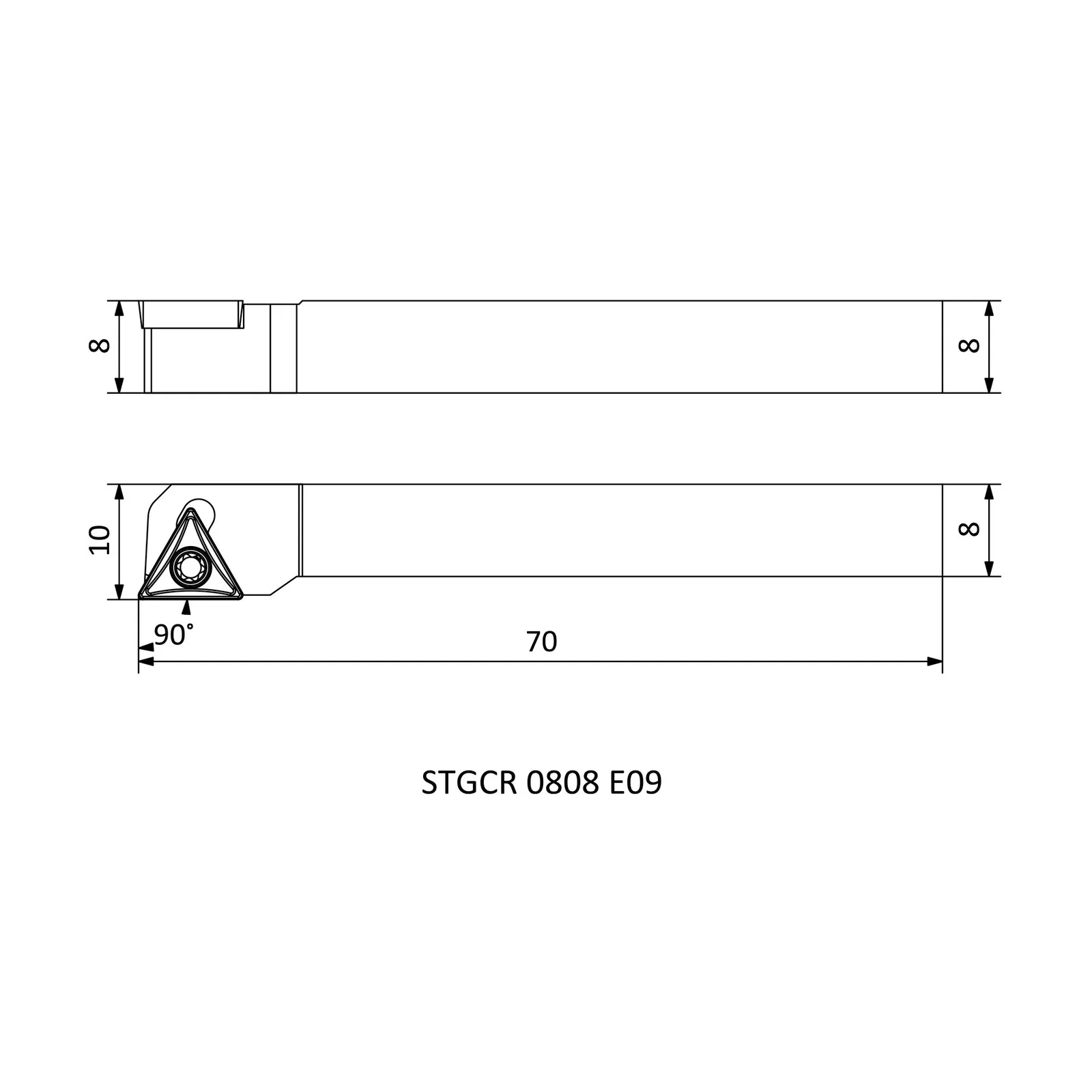

Specifications — STGCR 0808 E09
| Insert Code | Insert designation | TC.T 0902.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 70 |
| WF | Functional width (mm) | 10 |
| HF=H | Functional height (mm) | 8 |
| B | Shank width (mm) | 8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in STGCR/L
