Tool Holders / S-System External Turning Toolholders

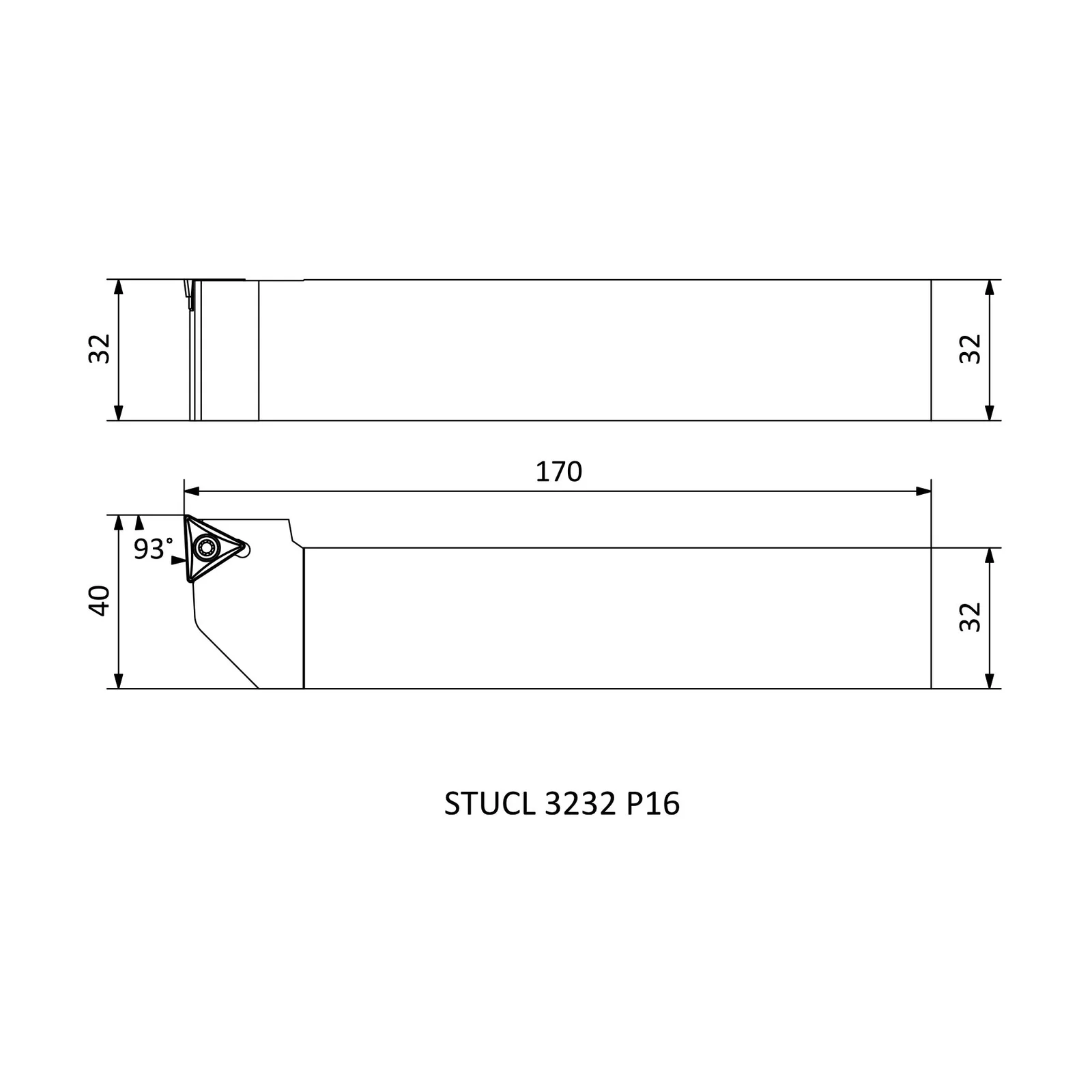

STUCL 3232 P16
STUCR/L series · see all 16 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).
Specifications — STUCL 3232 P16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 16 sizes in STUCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
