Tool Holders / S-System External Turning Toolholders
SVHBR 2020 K11
SVHBR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation VB.T 1103 (as listed in the catalogue data).

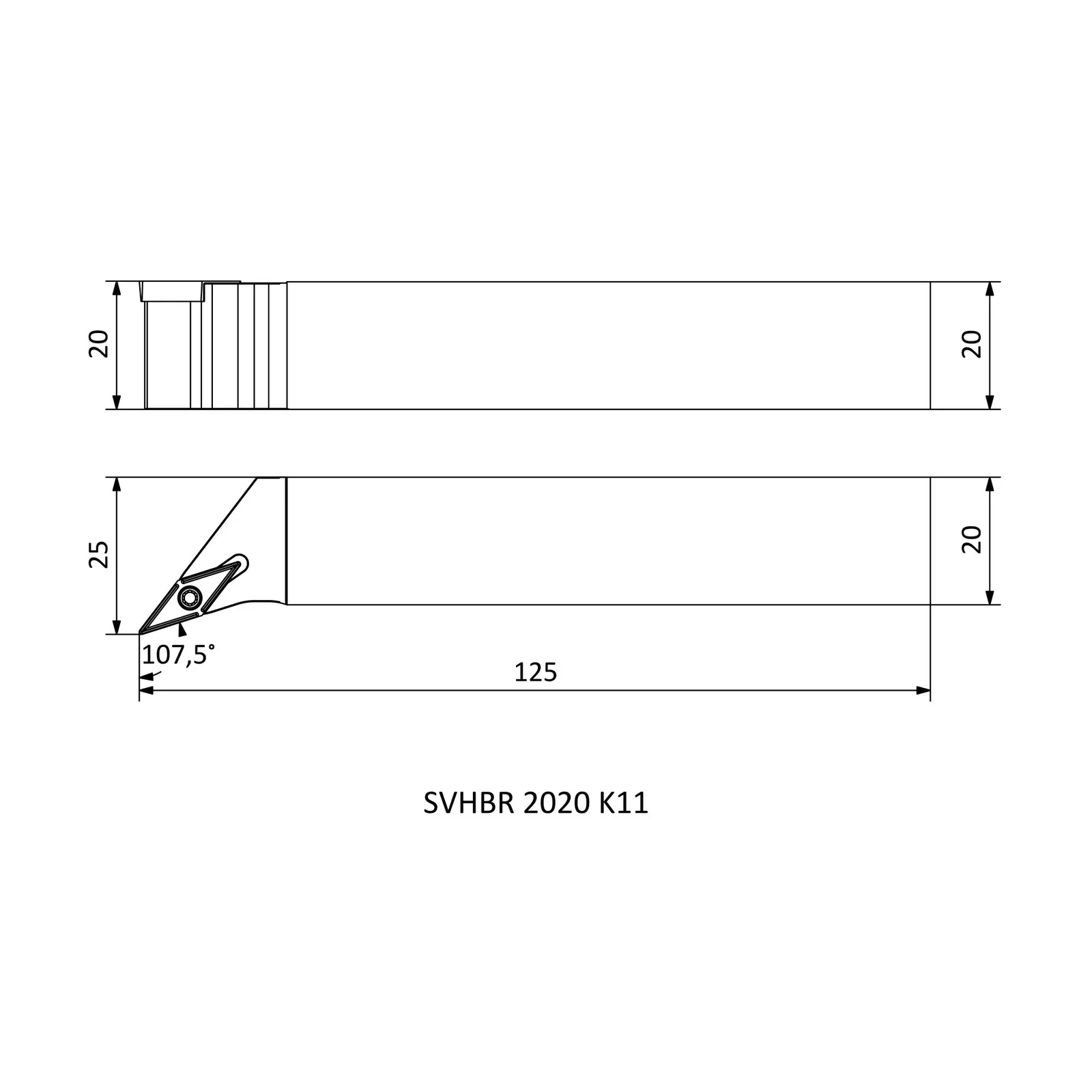

Specifications — SVHBR 2020 K11
| Insert Code | Insert designation | VB.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SVHBR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SVHBL 1212 F11 | L | 80 | 16 | 12 |
| SVHBR 1212 F11 | R | 80 | 16 | 12 |
| SVHBL 1616 H11 | L | 100 | 20 | 16 |
| SVHBR 1616 H11 | R | 100 | 20 | 16 |
| SVHBL 2020 K11 | L | 125 | 25 | 20 |
| SVHBR 2020 K11 | R | 125 | 25 | 20 |
| SVHBL 2020 K16 | L | 125 | 25 | 20 |
| SVHBR 2020 K16 | R | 125 | 25 | 20 |
| SVHBL 2525 M16 | L | 150 | 32 | 25 |
| SVHBR 2525 M16 | R | 150 | 32 | 25 |
| SVHBL 3232 P16 | L | 170 | 40 | 32 |
| SVHBR 3232 P16 | R | 170 | 40 | 32 |
