Tool Holders / S-System External Turning Toolholders

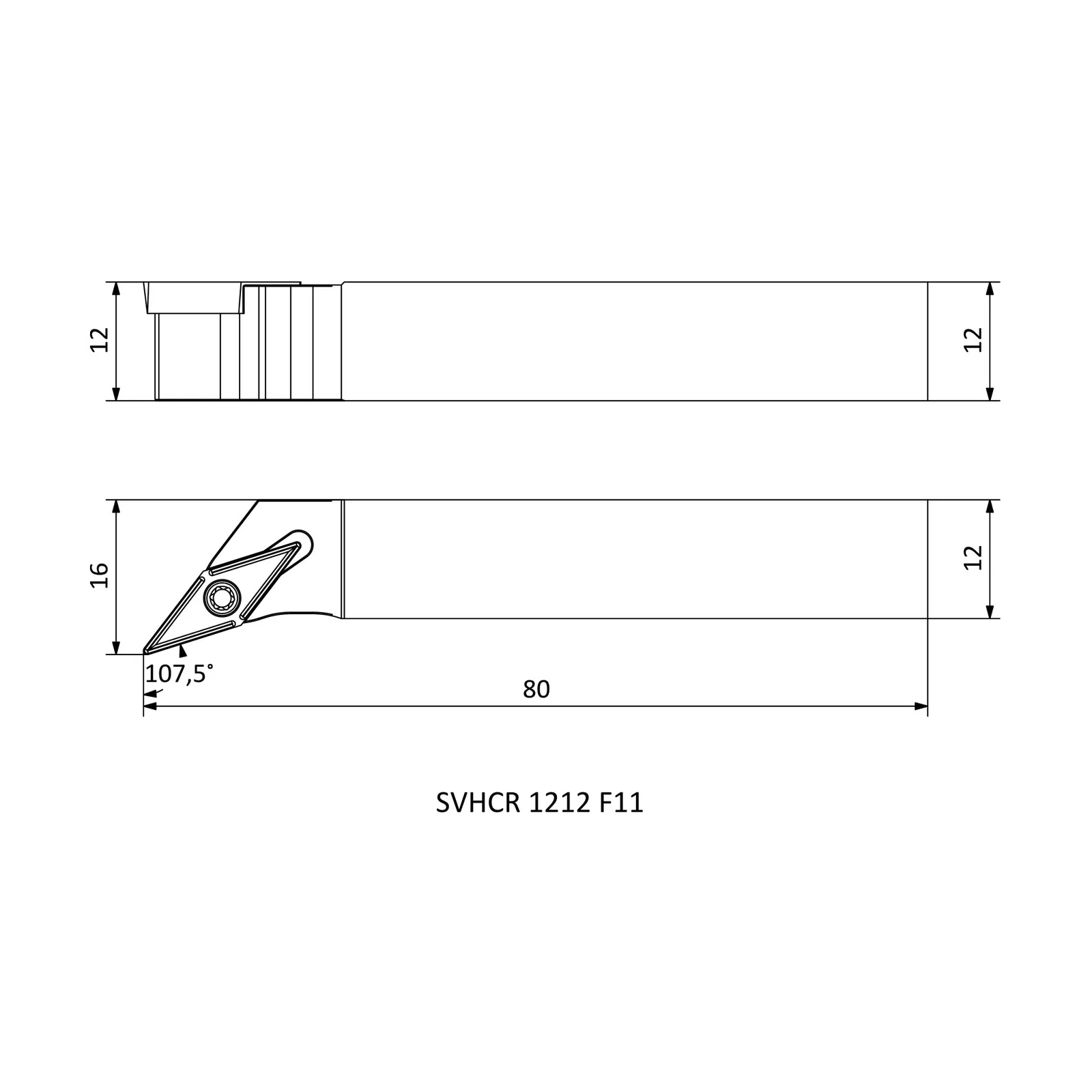

SVHCR 1212 F11
SVHCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).
Specifications — SVHCR 1212 F11
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 80 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SVHCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SVHCL 1212 F11 | L | 80 | 16 | 12 |
| SVHCR 1212 F11 | R | 80 | 16 | 12 |
| SVHCL 1616 H11 | L | 100 | 20 | 16 |
| SVHCR 1616 H11 | R | 100 | 20 | 16 |
| SVHCL 2020 K11 | L | 125 | 25 | 20 |
| SVHCR 2020 K11 | R | 125 | 25 | 20 |
| SVHCL 2020 K16 | L | 125 | 25 | 20 |
| SVHCR 2020 K16 | R | 125 | 25 | 20 |
| SVHCL 2525 M16 | L | 150 | 32 | 25 |
| SVHCR 2525 M16 | R | 150 | 32 | 25 |
| SVHCL 3232 P16 | L | 170 | 40 | 32 |
| SVHCR 3232 P16 | R | 170 | 40 | 32 |
