Tool Holders / S-System External Turning Toolholders
SVVCN 1616 H11
SVVCN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).

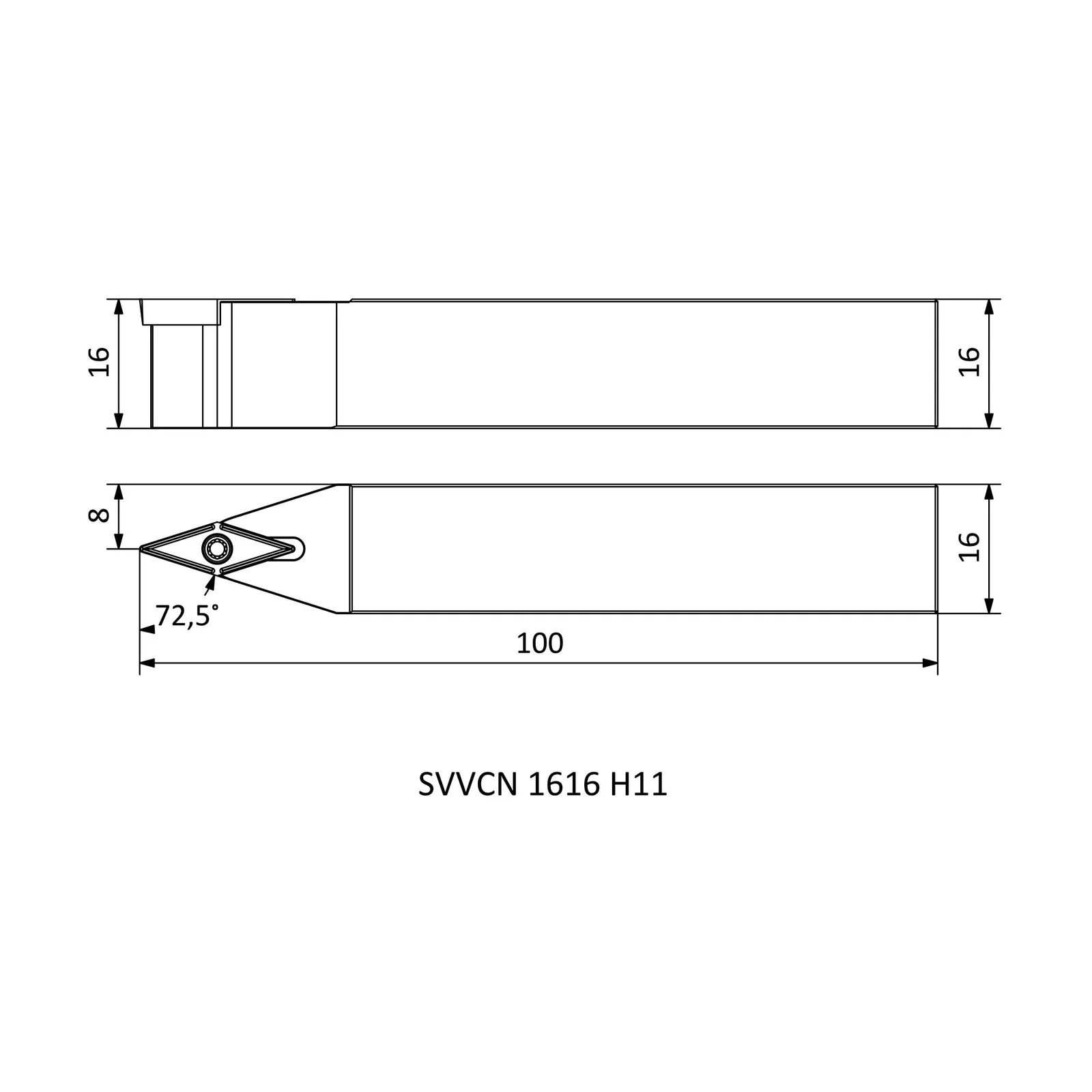

Specifications — SVVCN 1616 H11
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 8 |
| HF=H | Functional height (mm) | 16 |
| B | Shank width (mm) | 16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SVVCN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| SVVCN 1212 F11 | N | 80 | 6 | 12 |
| SVVCN 1616 H11 | N | 100 | 8 | 16 |
| SVVCN 2020 K11 | N | 125 | 10 | 20 |
| SVVCN 2020 K16 | N | 125 | 10 | 20 |
| SVVCN 2525 M16 | N | 150 | 12.5 | 25 |
| SVVCN 3232 P16 | N | 170 | 16 | 32 |
