Tool Holders / S-System Face And Copy End Mills

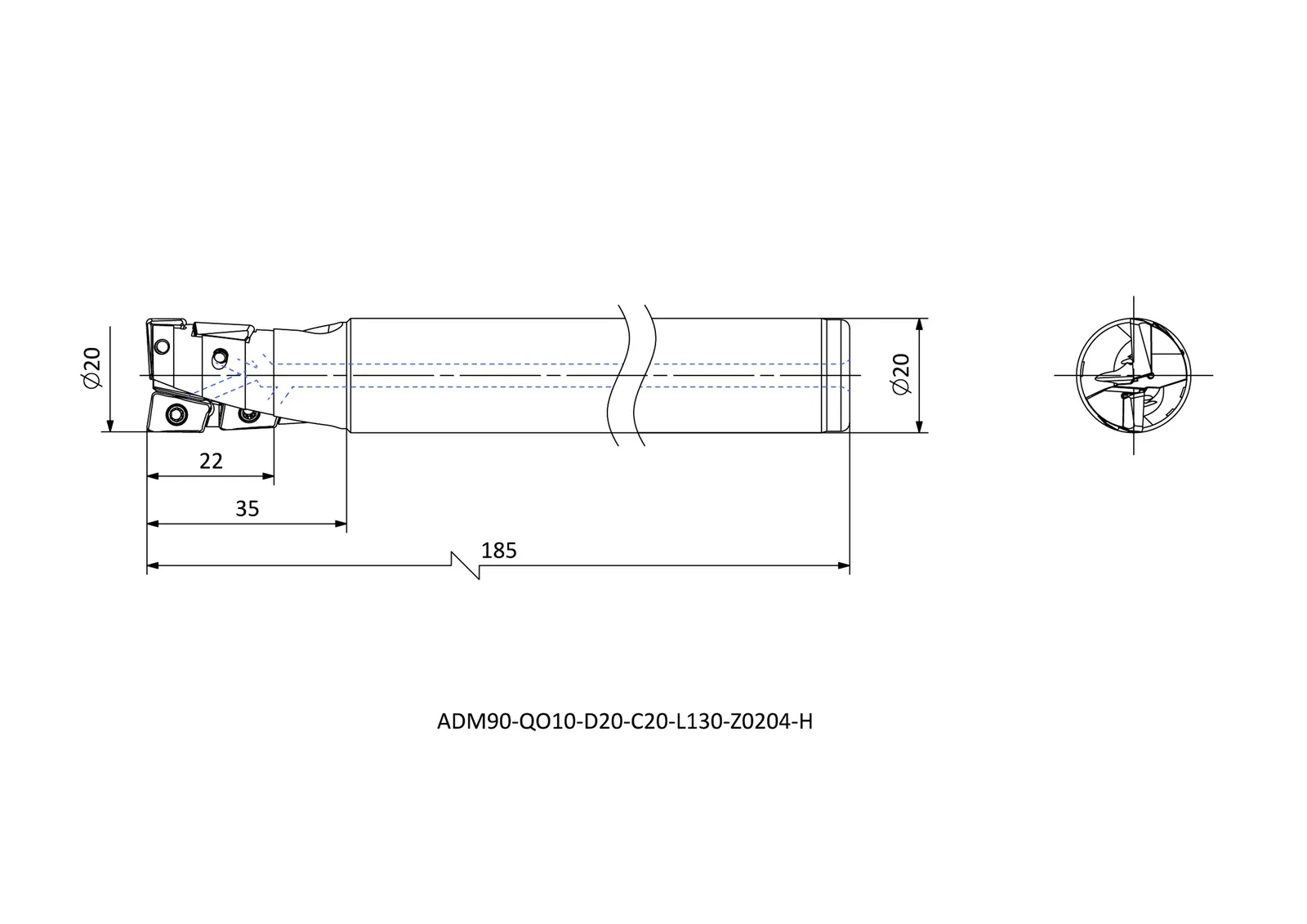

ADM90-QO10-D20-C20-L185-Z0204-H
ADM90-QO series · see all 10 sizes
Insert compatibility
This size is built for the insert designation QOMT 1035R (as listed in the catalogue data).
Specifications — ADM90-QO10-D20-C20-L185-Z0204-H
| Insert Code | Insert designation | QOMT 1035R-M2 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 130 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 22 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
