Tool Holders / S-System Face And Copy End Mills
AEMR-RD0803-D16-W16-L150-Z02
AEMR-RD series · see all 9 sizes
Insert compatibility
This size is built for the insert designation RD.. 0803 (as listed in the catalogue data).

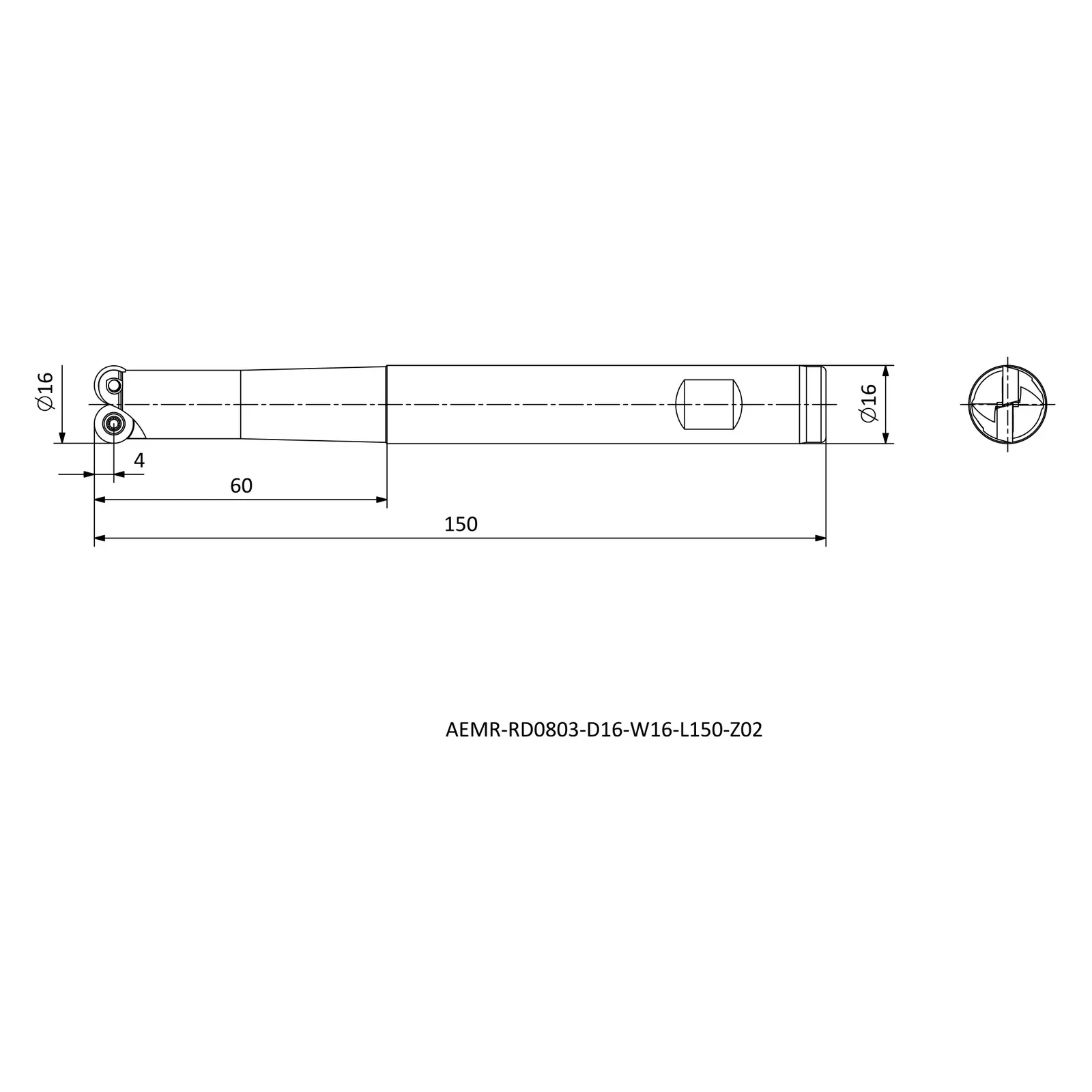

Specifications — AEMR-RD0803-D16-W16-L150-Z02
| Insert Code | Insert designation | RD.. 0803 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 16 |
| LH | Head length (mm) | 60 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 4 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
