Tool Holders / S-System Face And Copy End Mills
AEMR-RP10T3K-D25-C25-L160-Z03
AEMR-RP series · see all 2 sizes
Insert compatibility
This size is built for the insert designation RPMT 10T3 (as listed in the catalogue data).

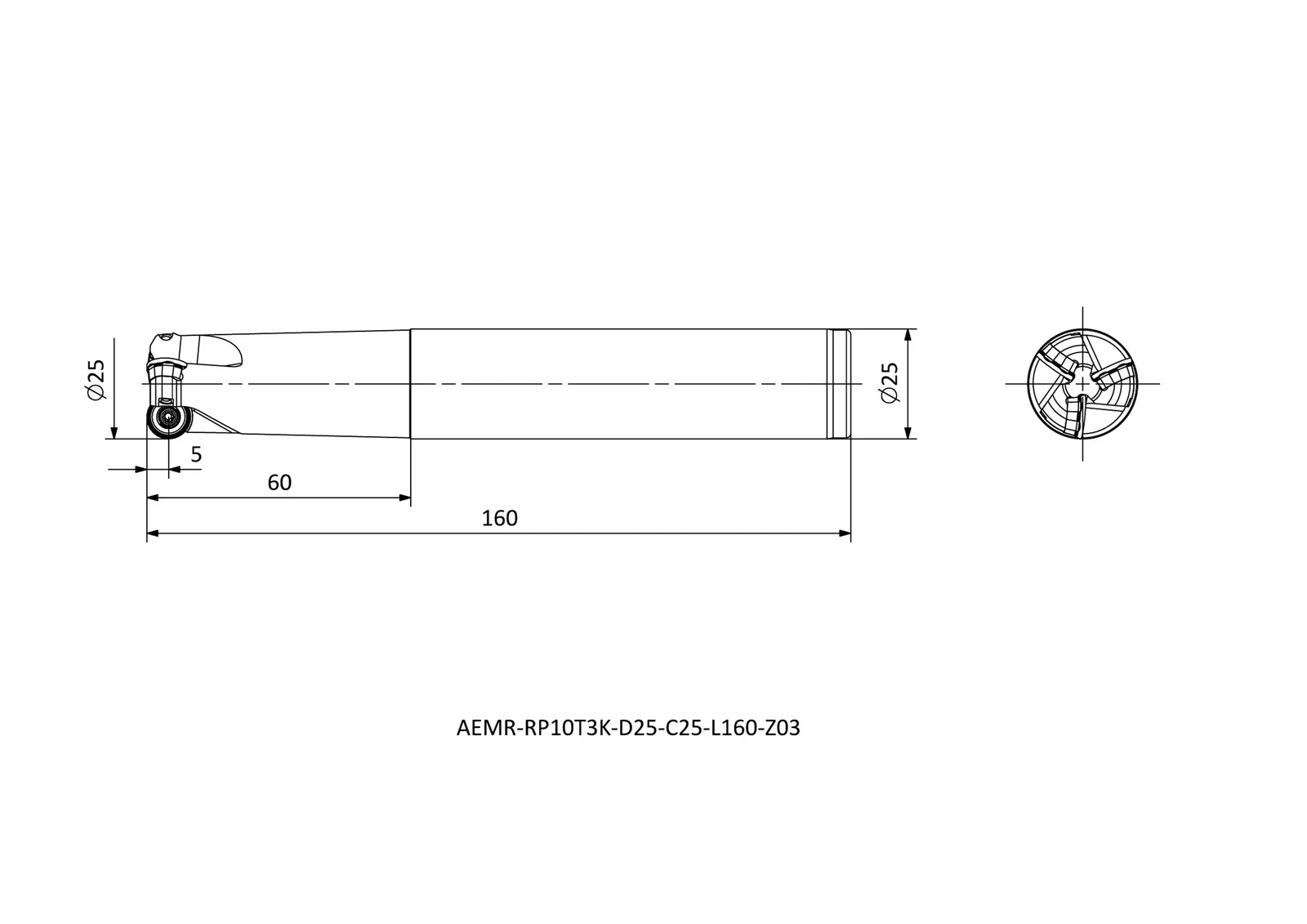

Specifications — AEMR-RP10T3K-D25-C25-L160-Z03
| Insert Code | Insert designation | RPMT 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 160 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 60 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEMR-RP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AEMR-RP10T3K-D20-C20-L160-Z02 | R | 20 | 160 | 20 |
| AEMR-RP10T3K-D25-C25-L160-Z03 | R | 25 | 160 | 25 |
