Tool Holders / S-System Face And Copy End Mills
AEMR-RY10-D21-W20-L200-Z02-H
AEMR-RY series · see all 8 sizes
Insert compatibility
This size is built for the insert designation RYMX 1004 (as listed in the catalogue data).

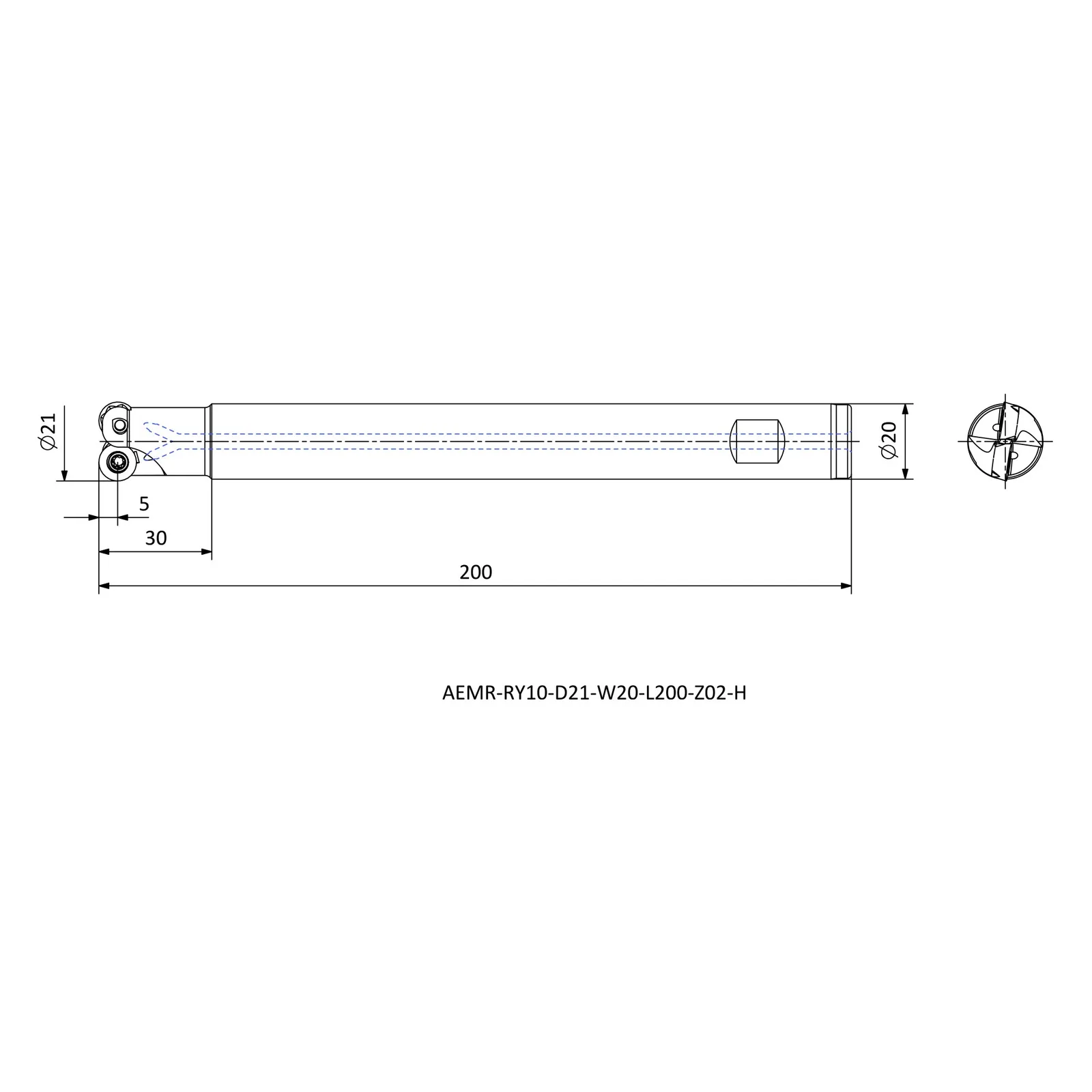

Specifications — AEMR-RY10-D21-W20-L200-Z02-H
| Insert Code | Insert designation | RYMX 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| DCX | Maximum diameter (mm) | 21 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in AEMR-RY
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AEMR-RY08-D16-W16-L150-Z02 | R | 16 | 150 | 16 |
| AEMR-RY10-D20-W20-L150-Z02 | R | 20 | 150 | 20 |
| AEMR-RY10-D20-C20-L200-Z02 | R | 20 | 200 | 20 |
| AEMR-RY10-D21-W20-L200-Z02-H | R | 20 | 200 | 21 |
| AEMR-RY10-D25-W25-L150-Z02 | R | 25 | 150 | 25 |
| AEMR-RY10-D26-W25-L200-Z02-H | R | 25 | 200 | 26 |
| AEMR-RY10-D32-W32-L160-Z04-H | R | 32 | 160 | 32 |
| AEMR-RY12-D32-C25-L160-Z03 | R | 25 | 160 | 32 |
