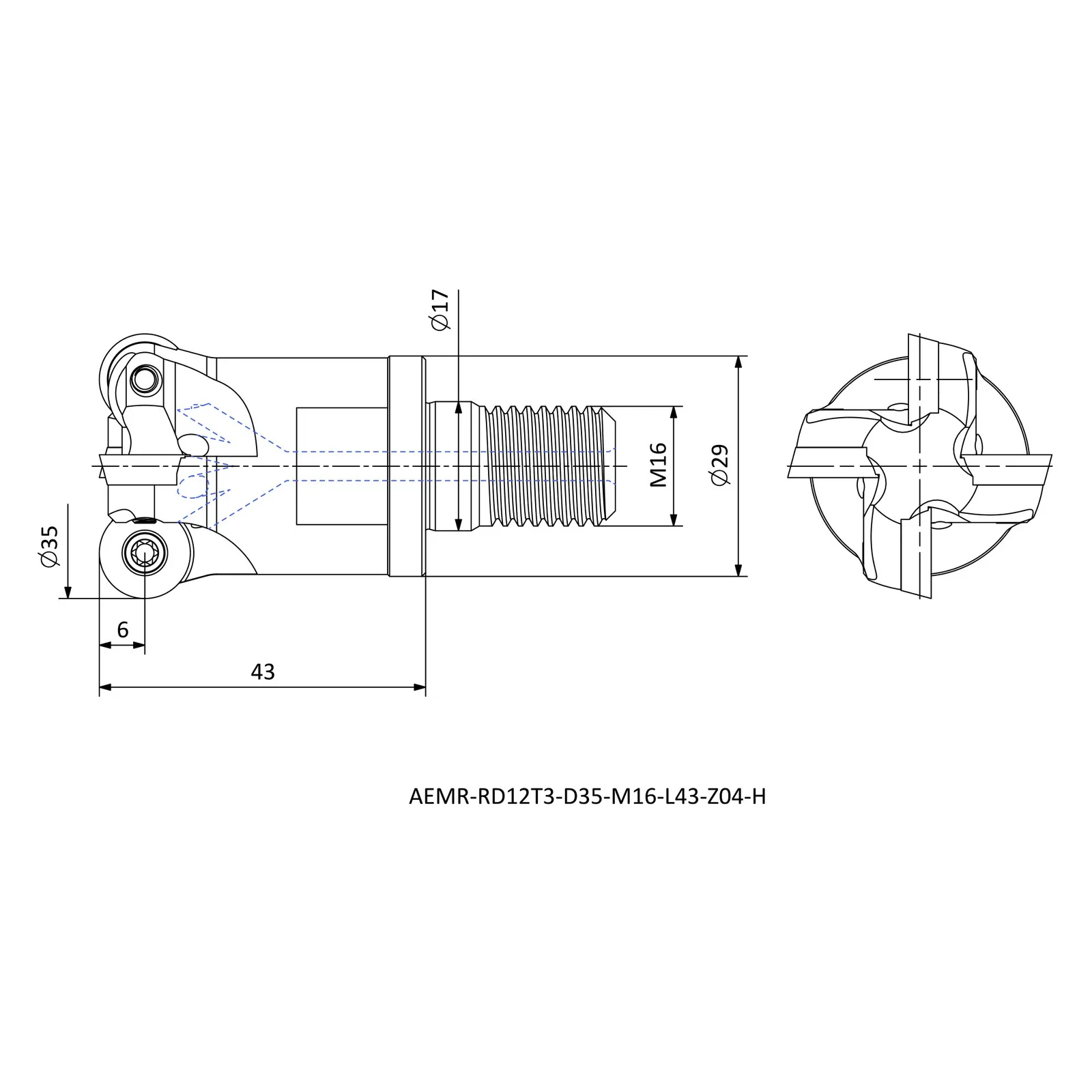

AEMR-RD12T3-D35-M16-L43-Z04-H — dimensioned drawing
Tool Holders / S-System Face And Copy Modular End Mills (SCREW Type Tools)

AEMR-RD12T3-D35-M16-L43-Z04-H

AEMR-RD series · see all 46 sizes

Insert compatibility

This size is built for the insert designation RD.. 12T3 (as listed in the catalogue data).

Ask about this size

Specifications — AEMR-RD12T3-D35-M16-L43-Z04-H

Insert Code Insert designation RD.. 12T3
Product Direction Cutting direction (hand) R
DCON Connection diameter (mm) 17
DCSFMS Contact-face diameter, machine side (mm) 29
LF Functional length (mm) 43
DCX Maximum diameter (mm) 35
ZEFP Effective cutting edges 4
APMX Depth of cut, maximum (mm) 6
TDZ Thread depth (mm) M16

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

All 46 sizes in AEMR-RD

Product codeCutting direction (hand)Connection diameter (mm)Contact-face diameter, machine side (mm)Functional length (mm)
AEMR-RD0702-D20-M10-L30-Z04-H R10.51830
AEMR-RD0802-D16-M08-L23-Z02-H R8.51323
AEMR-RD08T2-D16-M08-L23-Z02-H R8.51323
AEMR-RD1003-D20-M10-L30-Z02-H R10.51830
AEMR-RD0702-D32-M16-L43-Z05-H R172943
AEMR-RD08T2-D16-M10-L23-Z02-H R8.51323
AEMR-RD1204-D32-M16-L43-Z03-H R172943
AEMR-RD12T3-D42-M16-L43-Z05-H R172943
AEMR-RD1604-D42-M16-L43-Z03-H R172943
AEMR-RD1004-D25-M12-L35-Z03-H R12.52135
AEMR-RD1204-D25-M12-L35-Z02-H R12.52135
AEMR-RD0702-D30-M16-L42-Z05-H R172942
AEMR-RD1003-D25-M12-L35-Z02-H R12.52135
AEMR-RD1003-D30-M16-L43-Z04-H R172943
AEMR-RD1004-D42-M16-L43-Z05-H R172943
AEMR-RD10T3-D35-M16-L43-Z04-H R172943
AEMR-RD10T3-D42-M16-L43-Z05-H R172943
AEMR-RD1204-D42-M16-L43-Z04-H R172943
AEMR-RD12T3-D32-M16-L43-Z03-H R172943
AEMR-RD12T3-D40-M16-L43-Z04-H R172943
AEMR-RD0803-D20-M10-L30-Z03-H R10.51830
AEMR-RD08T2-D20-M10-L30-Z03-H R10.51830
AEMR-RD1003-D32-M16-L43-Z04-H R172943
AEMR-RD1003-D35-M16-L43-Z04-H R172943
AEMR-RD1003-D40-M16-L43-Z05-H R172943
AEMR-RD1004-D32-M16-L43-Z04-H R172943
AEMR-RD12T3-D35-M16-L43-Z03-H R172943
AEMR-RD12T3-D35-M16-L43-Z04-H R172943
AEMR-RD0702-D35-M16-L42-Z06-H R172942
AEMR-RD0803-D16-M08-L23-Z02-H R8.51323
AEMR-RD1003-D25-M12-L35-Z03-H R12.52135
AEMR-RD0702-D16-M08-L23-Z02-H R8.514.7523
AEMR-RD0702-D42-M16-L43-Z05-H R172943
AEMR-RD1204-D40-M16-L43-Z04-H R172943
AEMR-RD12T3-D25-M12-L35-Z02-H R12.52135
AEMR-RD10T3-D25-M12-L35-Z03-H R12.52135
AEMR-RD0702-D15-M08-L23-Z02-H R8.51323
AEMR-RD0702-D25-M12-L35-Z05-H R12.52135
AEMR-RD1003-D42-M16-L43-Z05-H R172943
AEMR-RD1604-D32-M16-L43-Z02-H R172943
AEMR-RD1604-D40-M16-L43-Z02-H R172943
AEMR-RD0702-D42-M16-L43-Z07-H R172943
AEMR-RD0803-D25-M12-L35-Z04-H R12.52135
AEMR-RD08T2-D25-M12-L35-Z04-H R12.52135
AEMR-RD10T3-D32-M16-L45-Z04-H R172945
AEMR-RD12T3-D24-M12-L35-Z02-H R12.52135

Full specification table & catalogue PDF
