Tool Holders / S-System Face And Copy Modular End Mills (SCREW Type Tools)

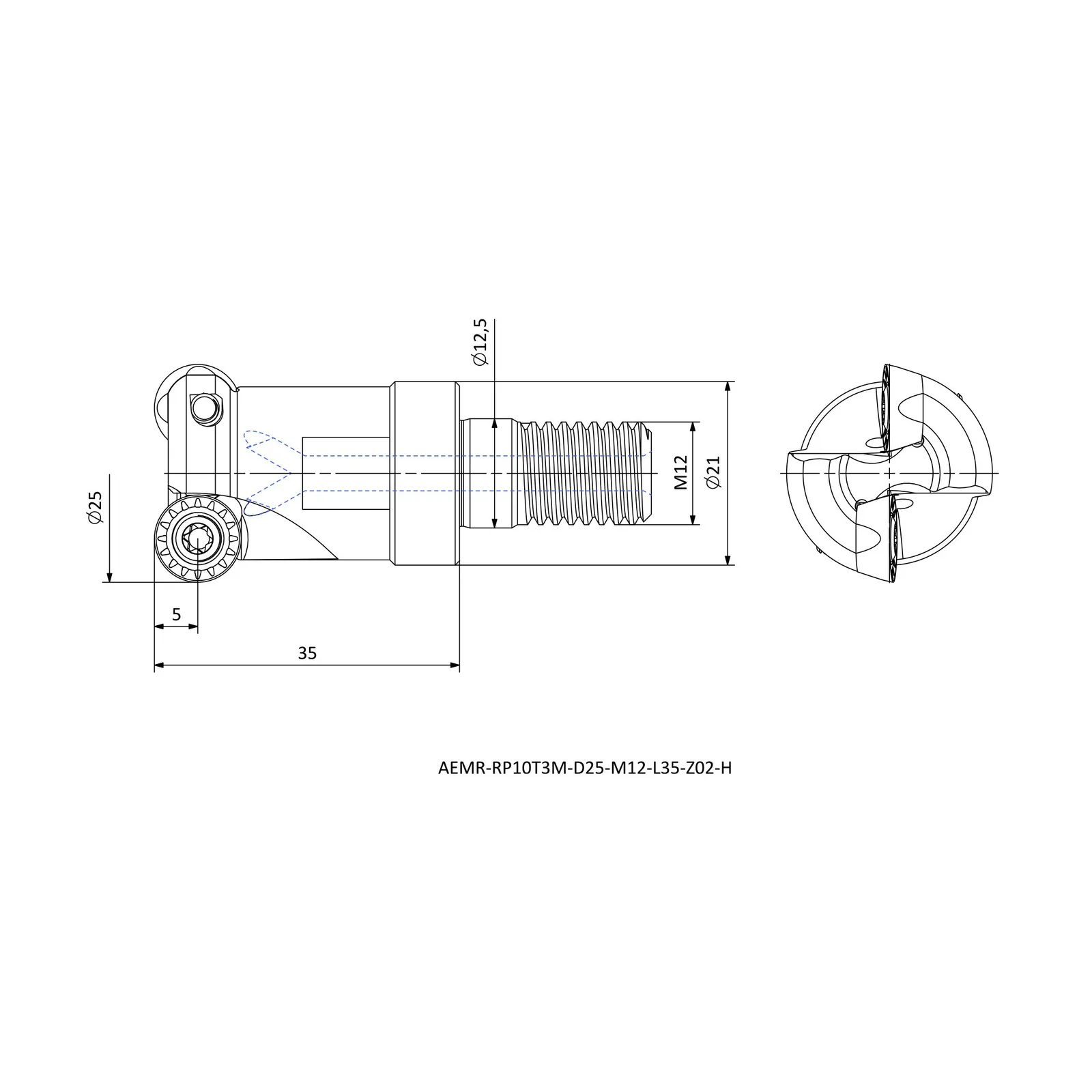

AEMR-RP10T3M-D25-M12-L35-Z02-H
AEMR-RP series · see all 5 sizes
Insert compatibility
This size is built for the insert designation RPMT 10T3 (as listed in the catalogue data).
Specifications — AEMR-RP10T3M-D25-M12-L35-Z02-H
| Insert Code | Insert designation | RPMT 10T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 21 |
| LF | Functional length (mm) | 35 |
| DCX | Maximum diameter (mm) | 25 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5 |
| TDZ | Thread depth (mm) | M12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEMR-RP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEMR-RP08T2M-D20-M10-L30-Z02-H | R | 10.5 | 18 | 30 |
| AEMR-RP10T3M-D25-M12-L35-Z02-H | R | 12.5 | 21 | 35 |
| AEMR-RP10T3M-D32-M16-L43-Z03-H | R | 17 | 29 | 43 |
| AEMR-RP1204M-D32-M16-L43-Z03-H | R | 17 | 29 | 43 |
| AEMR-RP1204M-D40-M16-L43-Z04-H | R | 17 | 29 | 43 |
