Tool Holders / S-System Face And Copy Modular End Mills (SCREW Type Tools)

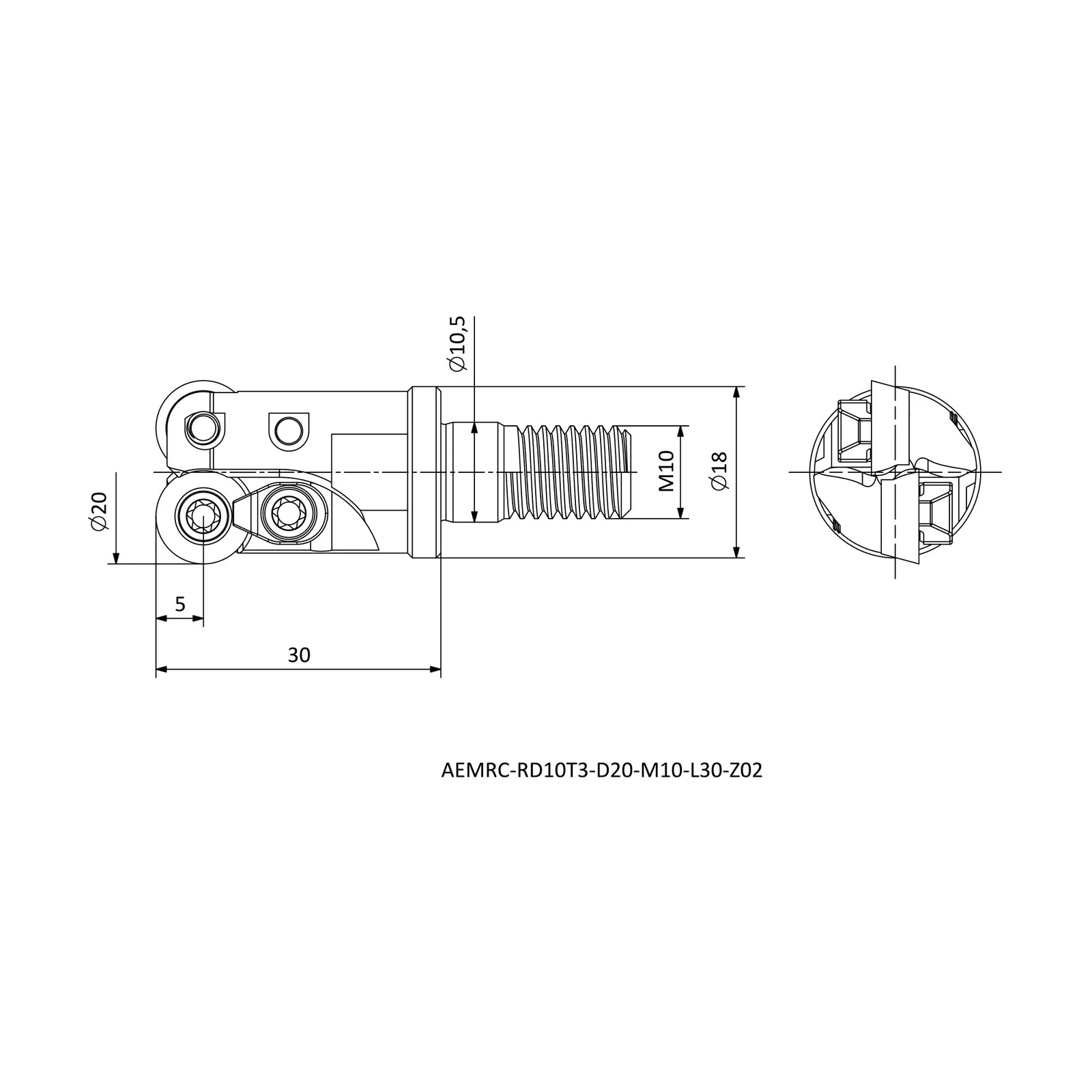

AEMRC-RD10T3-D20-M10-L30-Z02
AEMRC-RD series · see all 3 sizes
Insert compatibility
This size is built for the insert designation RD.. 10T3 (as listed in the catalogue data).
Specifications — AEMRC-RD10T3-D20-M10-L30-Z02
| Insert Code | Insert designation | RD.. 10T3 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 10.5 |
| DCSFMS | Contact-face diameter, machine side (mm) | 18 |
| LF | Functional length (mm) | 30 |
| DCX | Maximum diameter (mm) | 20 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 5 |
| TDZ | Thread depth (mm) | M10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEMRC-RD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Contact-face diameter, machine side (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEMRC-RD10T3-D25-M12-L35-Z02-H | R | 12.5 | 21 | 35 |
| AEMRC-RD10T3-D20-M10-L30-Z02 | R | 10.5 | 18 | 30 |
| AEMRC-RD10T3-D32-M16-L43-Z03-H | R | 17 | 29 | 43 |
