Tool Holders / S-System Helix End Mill

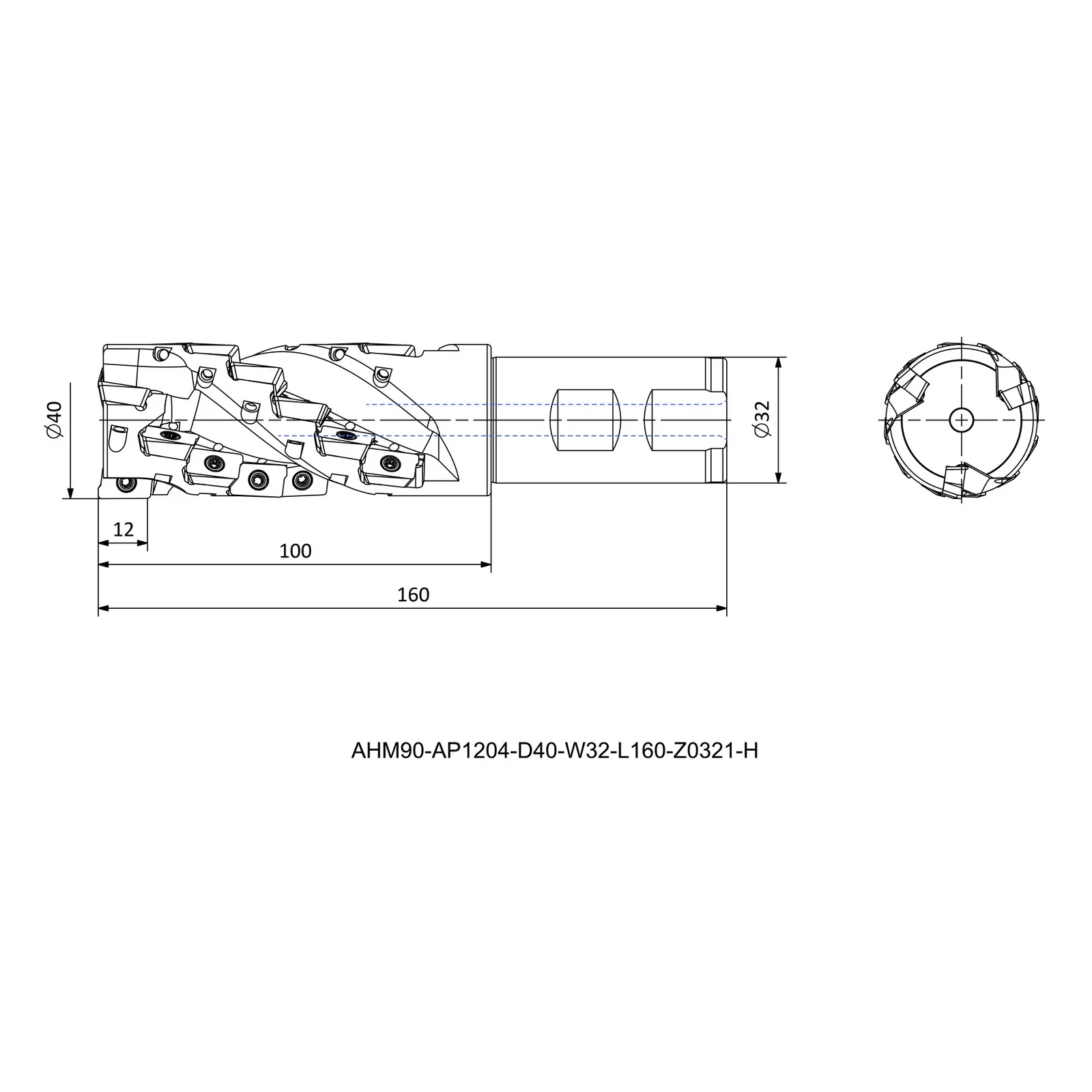

AHM90-AP1204-D40-W32-L160-Z0321-H
AHM90-AP1204-H series · see all 2 sizes
Insert compatibility
This size is built for the insert designation AP.. 1204 (as listed in the catalogue data).
Specifications — AHM90-AP1204-D40-W32-L160-Z0321-H
| Insert Code | Insert designation | AP.. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 160 |
| LH | Head length (mm) | 100 |
| APMX | Depth of cut, maximum (mm) | 79 |
| ZEFP ETKILI | Effective cutting edges | 3 |
| ZEFP Toplam | Total cutting edges | 21 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AHM90-AP1204-H
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHM90-AP1204-D32-W32-L140-Z0212-H | R | 32 | 32 | 140 |
| AHM90-AP1204-D40-W32-L160-Z0321-H | R | 40 | 32 | 160 |
