Tool Holders / S-System Highfeed End Mills
AHFM-SD06T2-D20-C20-L200-Z03
AHFM(C)-SD series · see all 17 sizes
Insert compatibility
This size is built for the insert designation SD.. 06T2 (as listed in the catalogue data).

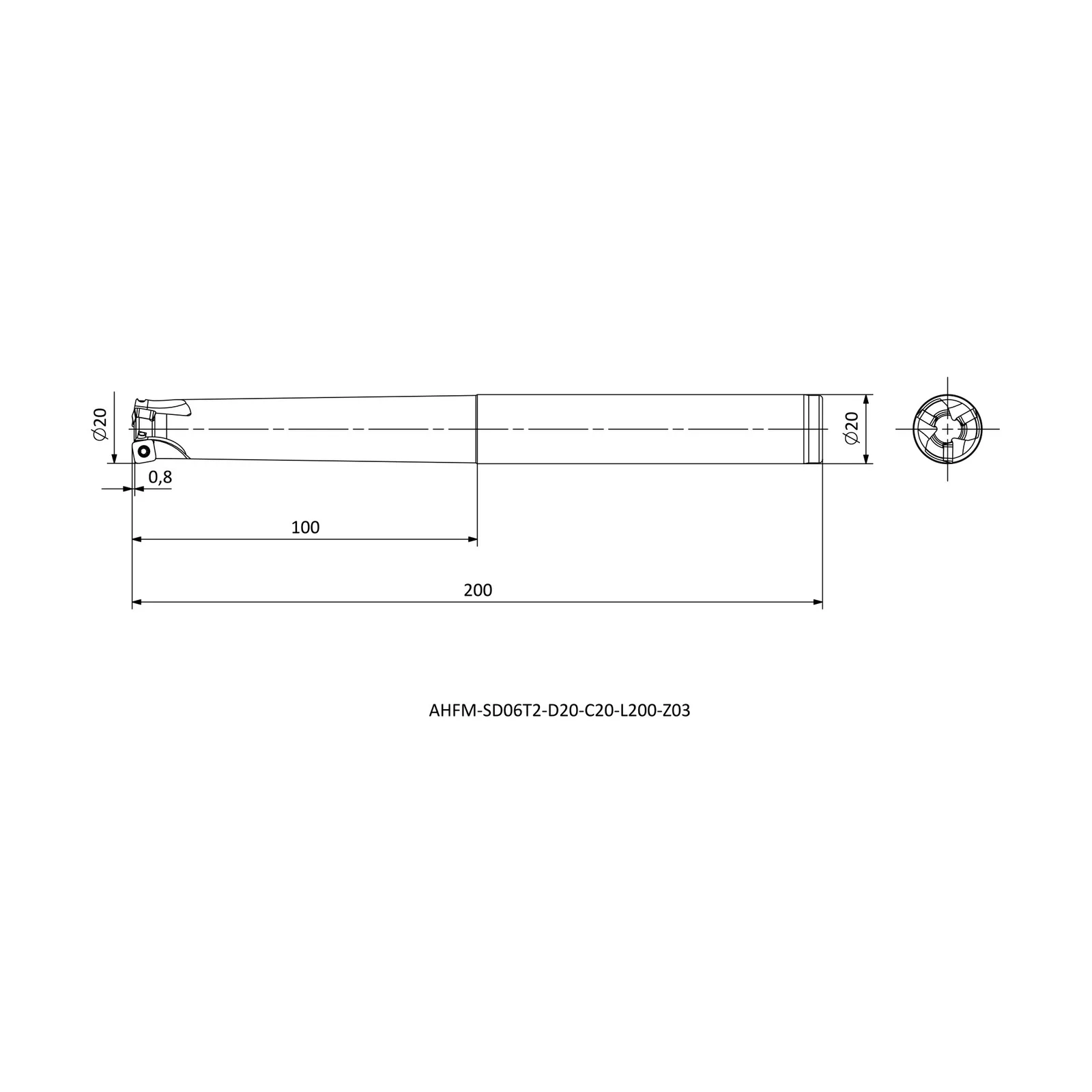

Specifications — AHFM-SD06T2-D20-C20-L200-Z03
| Insert Code | Insert designation | SD.. 06T2.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 200 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 100 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 0.8 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 17 sizes in AHFM(C)-SD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SD06T2-D16-C16-L100-Z02-H | R | 16 | 100 | 16 |
| AHFM-SD06T2-D16-C16-L150-Z02-H | R | 16 | 150 | 16 |
| AHFM-SD06T2-D16-C16-L200-Z02 | R | 16 | 200 | 16 |
| AHFM-SD06T2-D17-C16-L150-Z02-H | R | 16 | 150 | 17 |
| AHFM-SD06T2-D20-C20-L150-Z03-H | R | 20 | 150 | 20 |
| AHFM-SD06T2-D20-C20-L200-Z03 | R | 20 | 200 | 20 |
| AHFM-SD06T2-D21-C20-L150-Z03-H | R | 20 | 150 | 21 |
| AHFM-SD06T2-D25-C25-L150-Z04-H | R | 25 | 150 | 25 |
| AHFM-SD06T2-D26-C25-L150-Z04-H | R | 25 | 150 | 26 |
| AHFMC-SD09T3-D22-W20-L150-Z02 | R | 20 | 150 | 22 |
| AHFMC-SD09T3-D25-C25-L150-Z02 | R | 25 | 150 | 25 |
| AHFMC-SD09T3-D25-W25-L150-Z02 | R | 25 | 150 | 25 |
| AHFMC-SD09T3-D28-C25-L150-Z02 | R | 25 | 150 | 28 |
| AHFMC-SD09T3-D32-C32-L150-Z03 | R | 32 | 150 | 32 |
| AHFMC-SD09T3-D32-W32-L150-Z03 | R | 32 | 150 | 32 |
| AHFM-SD09T3-D25-C25-L150-Z03 | R | 25 | 150 | 25 |
| AHFM-SD09T3-D32-C32-L150-Z04 | R | 25 | 150 | 32 |
