Tool Holders / S-System Highfeed End Mills

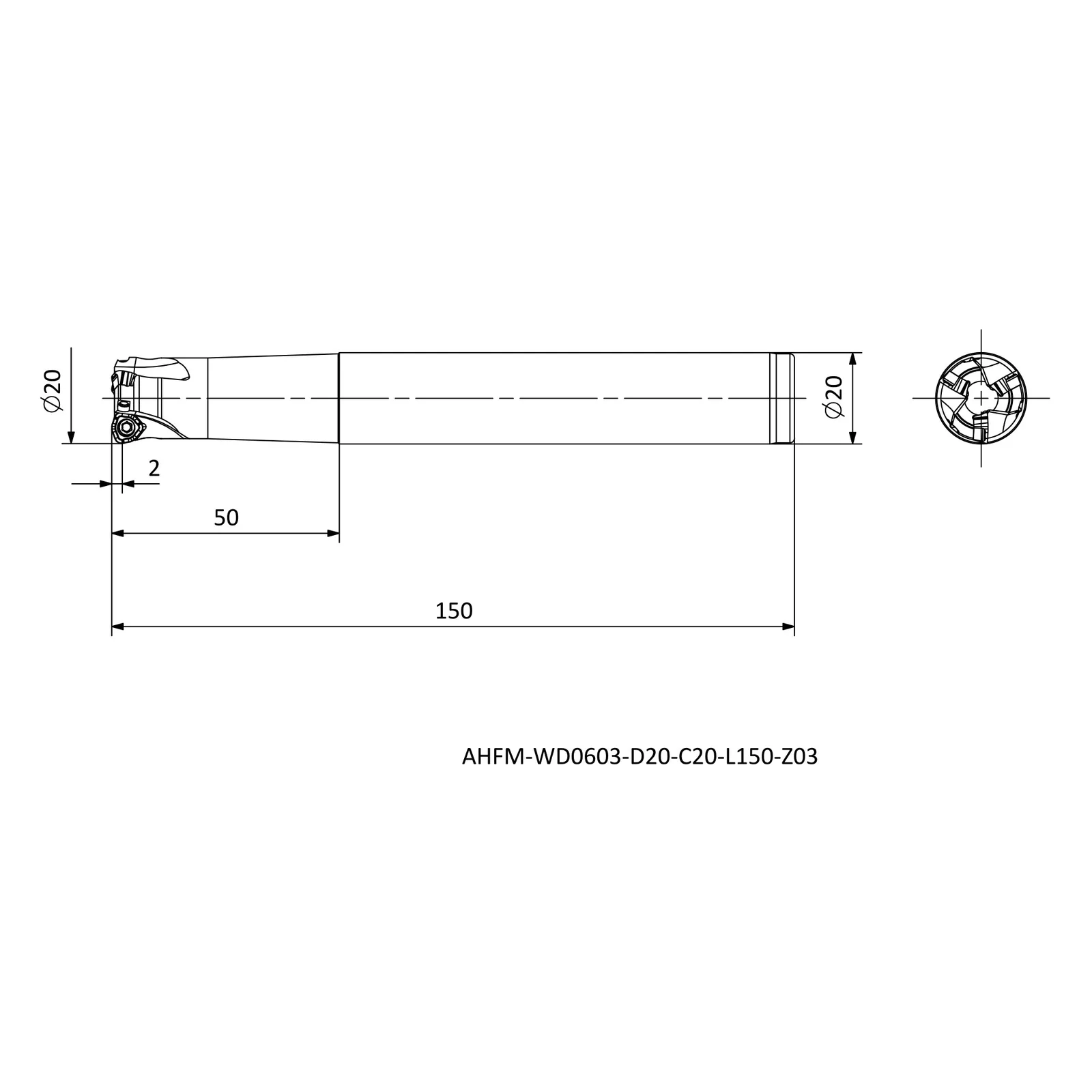

AHFM-WD0603-D20-C20-L150-Z03
AHFM(C)-WD series · see all 5 sizes
Insert compatibility
This size is built for the insert designation WDMT 0603 (as listed in the catalogue data).
Specifications — AHFM-WD0603-D20-C20-L150-Z03
| Insert Code | Insert designation | WDMT 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 70 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AHFM(C)-WD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-WD0603-D16-C16-L150-Z02 | R | 16 | 150 | 16 |
| AHFM-WD0603-D20-C20-L150-Z03 | R | 20 | 150 | 20 |
| AHFMC-WD0804-D25-C25-L150-Z02 | R | 25 | 150 | 25 |
| AHFMC-WD0804-D32-C32-L150-Z03 | R | 32 | 150 | 32 |
| AHFMC-WD1205-D32-C32-L150-Z02 | R | 32 | 150 | 32 |
