Tool Holders / S-System Highfeed End Mills

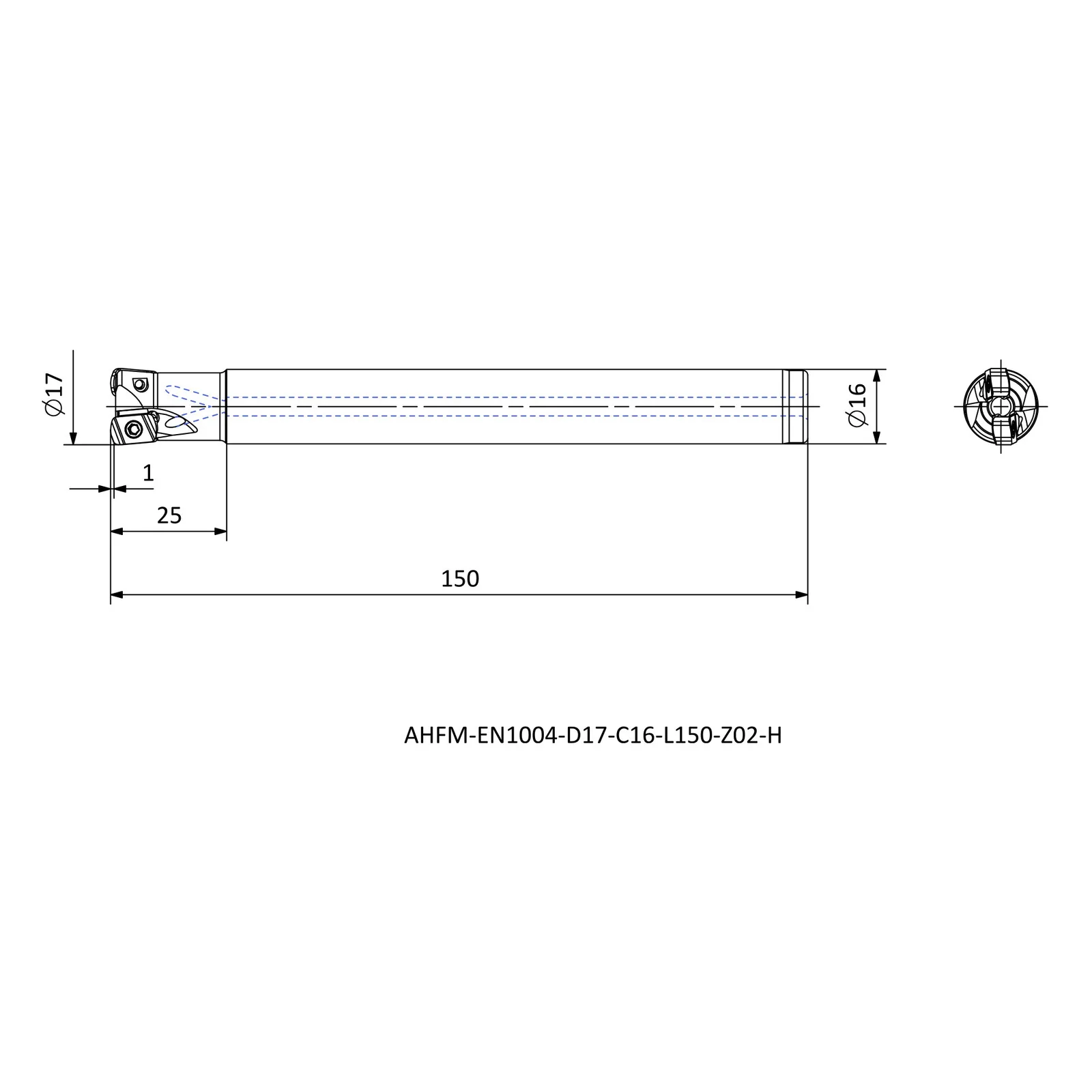

AHFM-EN1004-D17-C16-L150-Z02-H
AHFM-EN series · see all 25 sizes
Insert compatibility
This size is built for the insert designation ENMU 1004 (as listed in the catalogue data).
Specifications — AHFM-EN1004-D17-C16-L150-Z02-H
| Insert Code | Insert designation | ENMU 1004.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 17 |
| LH | Head length (mm) | 25 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
