Tool Holders / S-System Highfeed End Mills
AHFM-EO0602-D12-C11-L120-Z03
AHFM-EO series · see all 11 sizes
Insert compatibility
This size is built for the insert designation EO.. 0602 (as listed in the catalogue data).

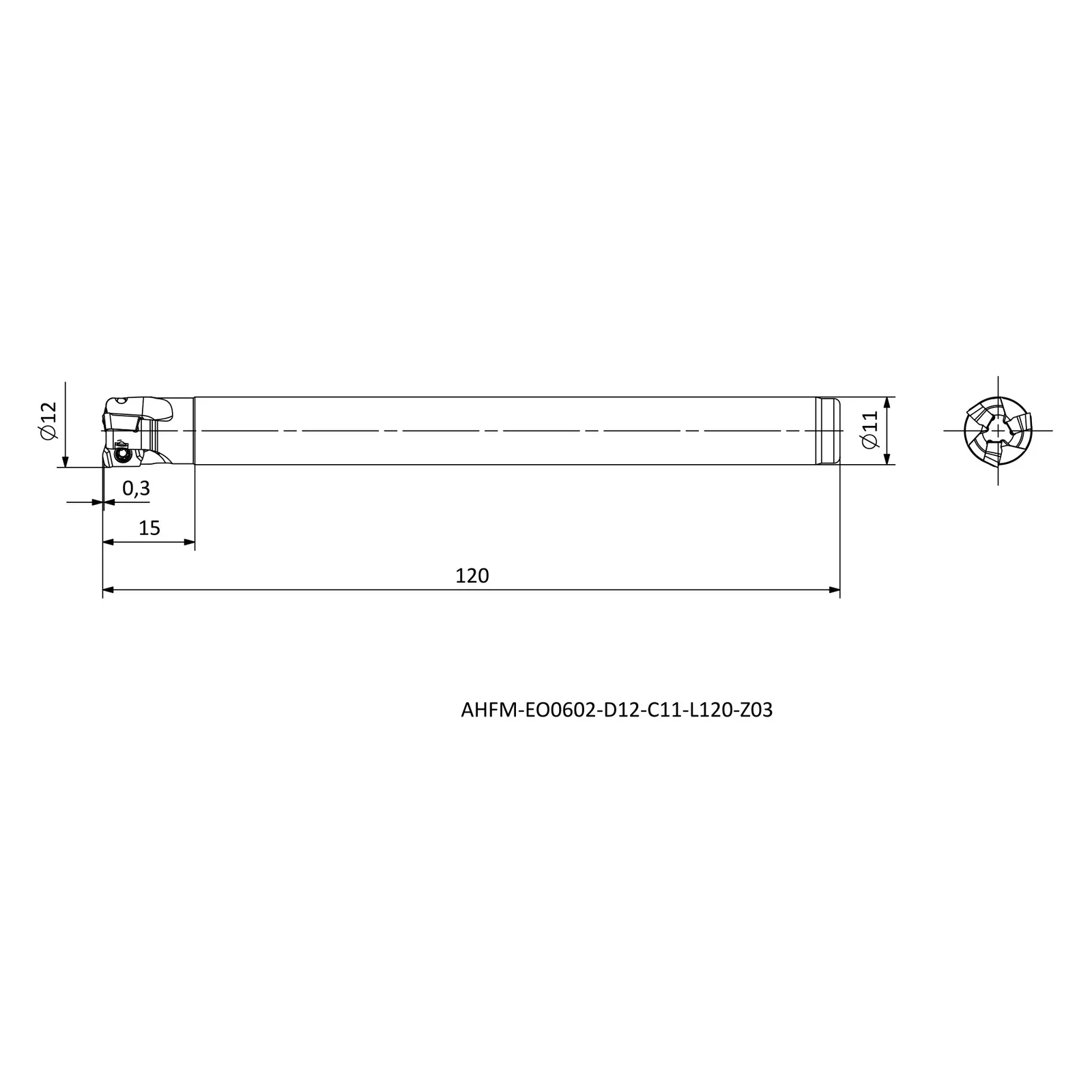

Specifications — AHFM-EO0602-D12-C11-L120-Z03
| Insert Code | Insert designation | EO.. 0602.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 12 |
| DCON | Connection diameter (mm) | 11 |
| LF | Functional length (mm) | 120 |
| LH | Head length (mm) | 120 |
| ZEFP | Effective cutting edges | 3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
