Tool Holders / S-System Highfeed End Mills
AHFM-EP1003-D20-C20-L150-Z04-H
AHFM-EP series · see all 7 sizes
Insert compatibility
This size is built for the insert designation EP.. 1003 (as listed in the catalogue data).

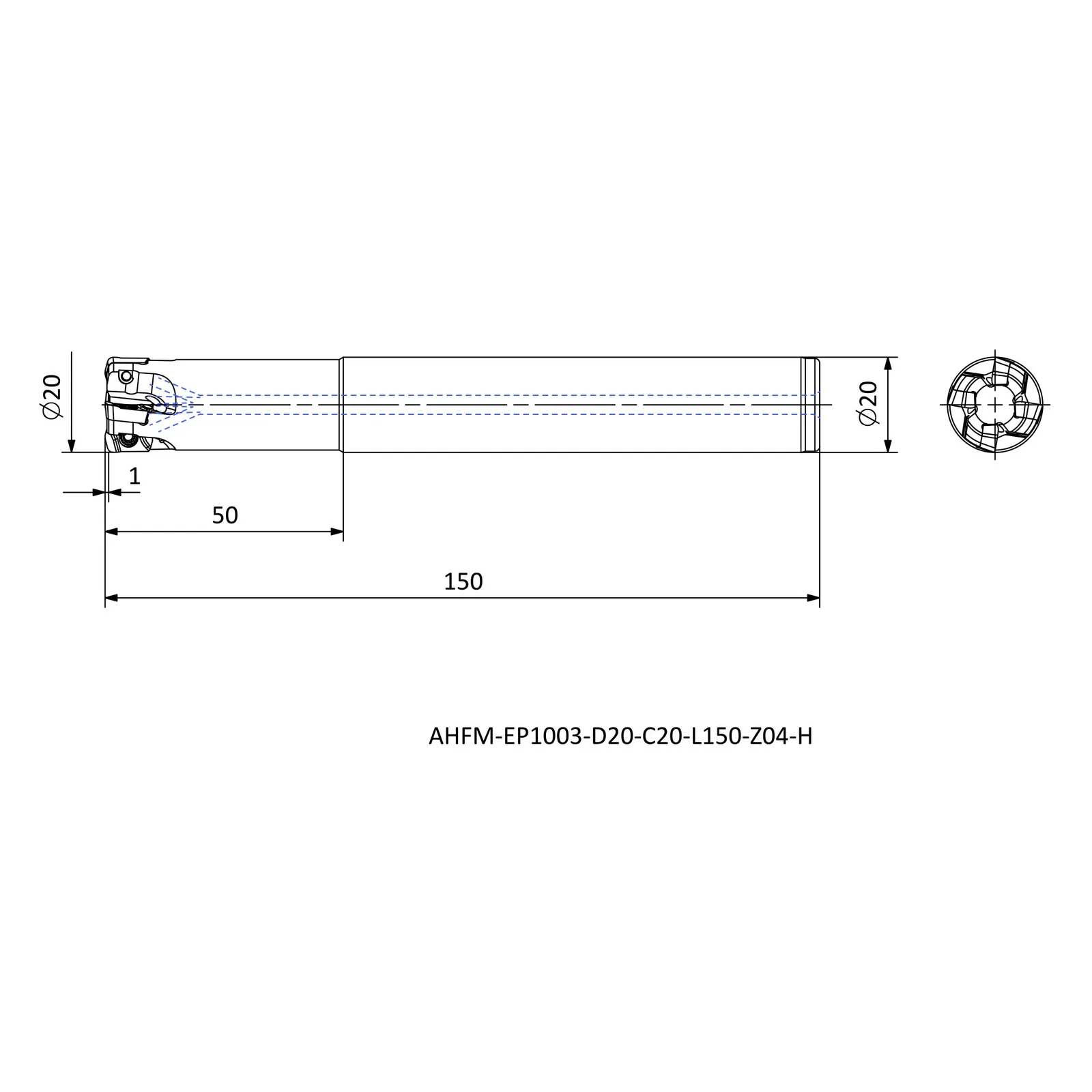

Specifications — AHFM-EP1003-D20-C20-L150-Z04-H
| Insert Code | Insert designation | EP.. 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AHFM-EP
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AHFM-EP1003-D16-C16-L80-Z02-H | R | 16 | 16 | 80 |
| AHFM-EP1003-D16-C16-L150-Z02-H | R | 16 | 16 | 150 |
| AHFM-EP1003-D17-C16-L150-Z02-H | R | 17 | 16 | 150 |
| AHFM-EP1003-D20-C20-L150-Z04-H | R | 20 | 20 | 150 |
| AHFM-EP1003-D21-C20-L150-Z04-H | R | 21 | 20 | 150 |
| AHFM-EP1003-D25-C25-L200-Z04-H | R | 25 | 25 | 200 |
| AHFM-EP1003-D25-C25-L250-Z04-H | R | 25 | 25 | 250 |
