Tool Holders / S-System Highfeed End Mills
AHFM-LN0303-D20-W20-L150-Z03-H
AHFM-LN series · see all 9 sizes
Insert compatibility
This size is built for the insert designation LNMU 0303 (as listed in the catalogue data).

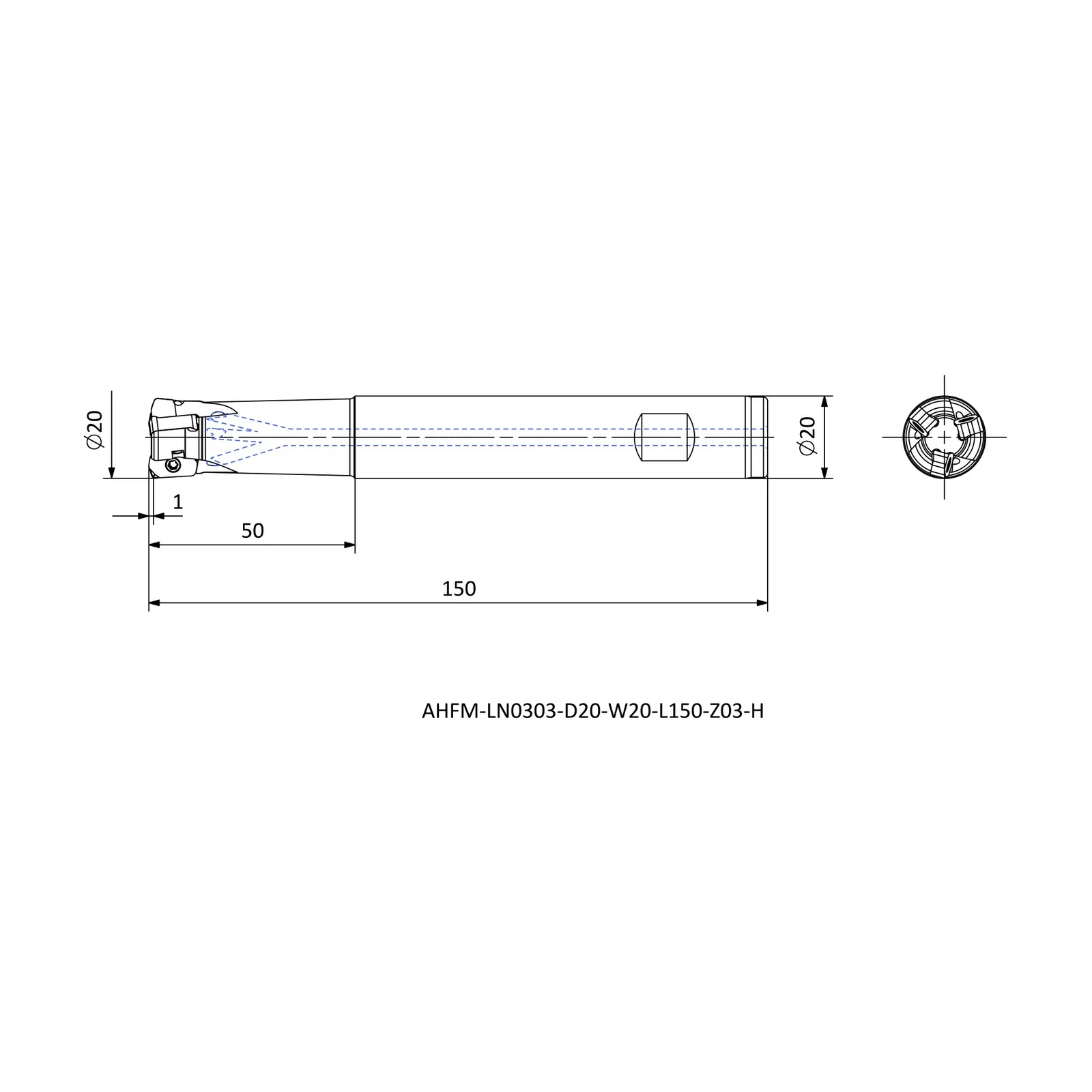

Specifications — AHFM-LN0303-D20-W20-L150-Z03-H
| Insert Code | Insert designation | LNMU 0303.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 9 sizes in AHFM-LN
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-LN0303-D16-C15-L150-Z02 | R | 15 | 150 | 16 |
| AHFM-LN0303-D16-W16-L150-Z02-H | R | 16 | 150 | 16 |
| AHFM-LN0303-D17-C16-L150-Z02-H | R | 16 | 150 | 17 |
| AHFM-LN0303-D20-W20-L150-Z03-H | R | 20 | 150 | 20 |
| AHFM-LN0303-D21-C20-L150-Z03 | R | 20 | 150 | 21 |
| AHFM-LN0303-D25-W25-L150-Z04-H | R | 25 | 150 | 25 |
| AHFM-LN0303-D26-C25-L150-Z04 | R | 25 | 150 | 26 |
| AHFM-LN0303-D28-C25-L180-Z03 | R | 25 | 180 | 28 |
| AHFM-LN0303-D33-C32-L200-Z05 | R | 32 | 200 | 33 |
