Tool Holders / S-System Highfeed End Mills
AHFM-LO03-D17-C16-L180-Z02
AHFM-LO series · see all 21 sizes
Insert compatibility
This size is built for the insert designation LOGU 0303 (as listed in the catalogue data).

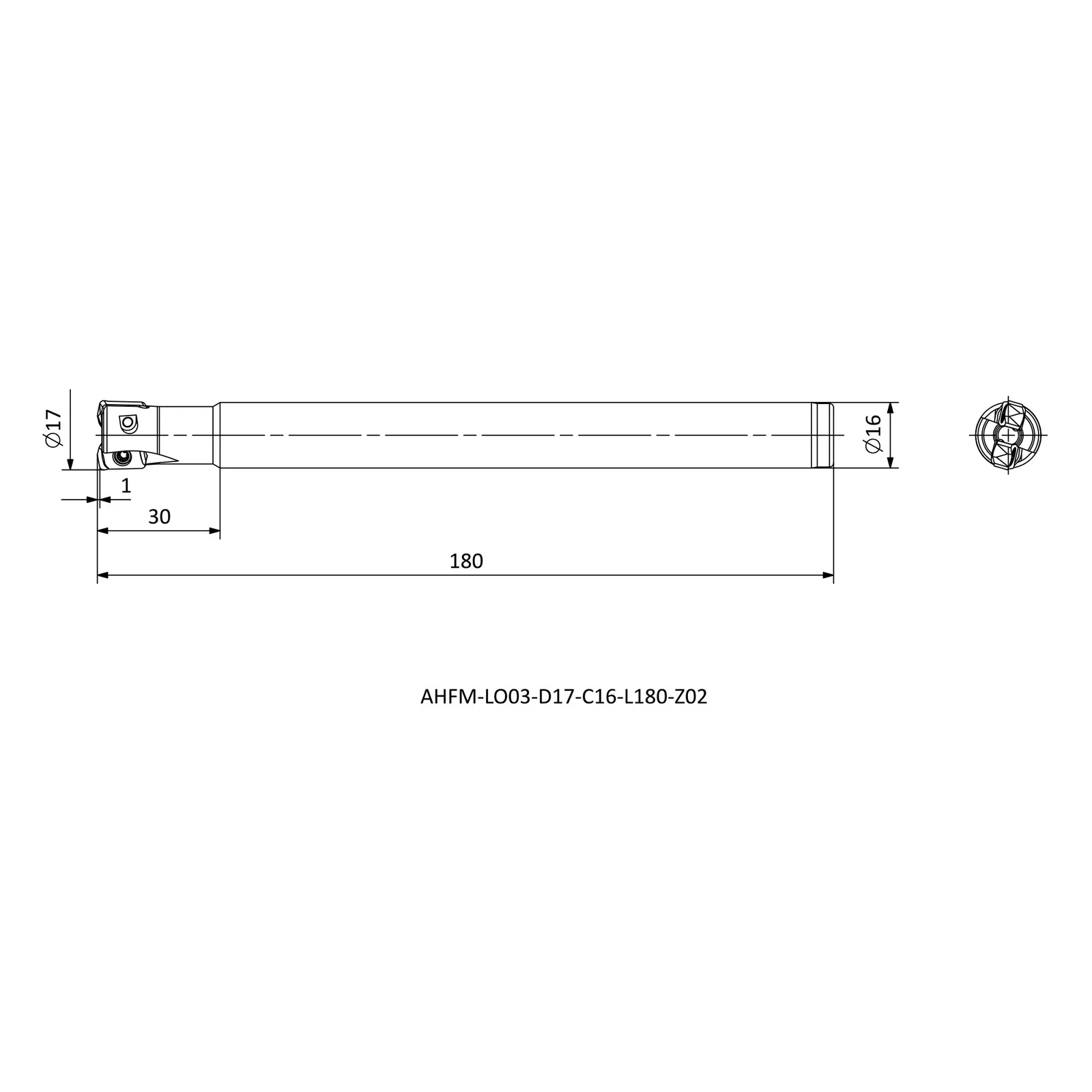

Specifications — AHFM-LO03-D17-C16-L180-Z02
| Insert Code | Insert designation | LOGU 0303.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 180 |
| DCX | Maximum diameter (mm) | 17 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 1 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 21 sizes in AHFM-LO
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-LO03-D16-C16-L220-Z02-H | R | 16 | 220 | 16 |
| AHFM-LO03-D25-C25-L140-Z04-F | R | 25 | 140 | 25 |
| AHFM-LO03-D26-C25-L250-Z04 | R | 25 | 250 | 26 |
| AHFM-LO03-D16-C15-L160-Z02 | R | 15 | 160 | 16 |
| AHFM-LO03-D16-C16-L100-Z02-F | R | 16 | 100 | 16 |
| AHFM-LO03-D16-C16-L160-Z02 | R | 16 | 160 | 16 |
| AHFM-LO03-D17-C16-L180-Z02 | R | 16 | 180 | 17 |
| AHFM-LO03-D20-C20-L160-Z03-H | R | 20 | 160 | 20 |
| AHFM-LO03-D20-C20-L160-Z03 | R | 20 | 160 | 20 |
| AHFM-LO03-D21-C20-L200-Z03 | R | 20 | 200 | 21 |
| AHFM-LO03-D21-C20-L200-Z03-H | R | 20 | 200 | 21 |
| AHFM-LO03-D33-C32-L250-Z05 | R | 32 | 250 | 33 |
| AHFM-LO03-D16-C16-L130-Z02-H | R | 16 | 130 | 16 |
| AHFM-LO03-D20-C20-L130-Z03-H | R | 20 | 130 | 20 |
| AHFM-LO03-D21-C20-L150-Z03-H | R | 20 | 150 | 21 |
| AHFM-LO03-D25-C25-L140-Z04 | R | 25 | 140 | 25 |
| AHFM-LO03-D25-C25-L180-Z04 | R | 25 | 180 | 25 |
| AHFM-LO03-D32-C32-L200-Z05 | R | 32 | 200 | 32 |
| AHFM-LO03-D16-C16-L100-Z02 | R | 16 | 100 | 16 |
| AHFM-LO03-D16-C16-L160-Z02-H | R | 16 | 160 | 16 |
| AHFM-LO03-D20-C20-L130-Z03 | R | 20 | 130 | 20 |
