Tool Holders / S-System Highfeed End Mills
AHFM-LP0102-D12-C11-L120-Z02
AHFM-LP series · see all 4 sizes
Insert compatibility
This size is built for the insert designation LPGT 0102 (as listed in the catalogue data).

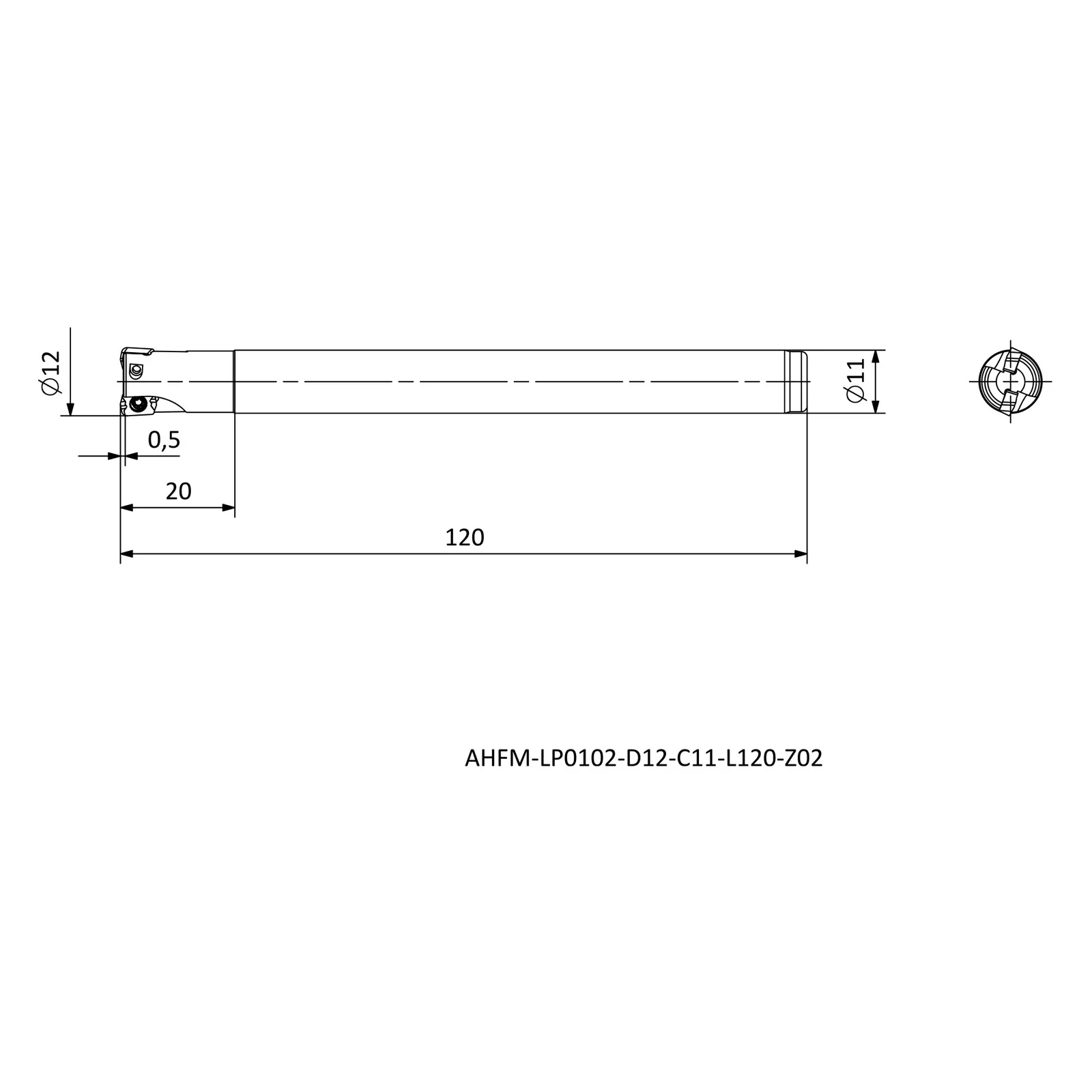

Specifications — AHFM-LP0102-D12-C11-L120-Z02
| Insert Code | Insert designation | LPGT 0102.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 120 |
| DCX | Maximum diameter (mm) | 12 |
| LH | Head length (mm) | 20 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 0.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFM-LP
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-LP0102-D10-C09-L120-Z02 | R | 10 | 120 | 10 |
| AHFM-LP0102-D10-C10-L120-Z02 | R | 10 | 120 | 10 |
| AHFM-LP0102-D12-C11-L120-Z02 | R | 12 | 120 | 12 |
| AHFM-LP0102-D12-C12-L120-Z02 | R | 12 | 120 | 12 |
