Tool Holders / S-System Highfeed End Mills
AHFM-SO0803-D20-W20-L150-Z02
AHFM-SO series · see all 4 sizes
Insert compatibility
This size is built for the insert designation SOMW 0803 (as listed in the catalogue data).

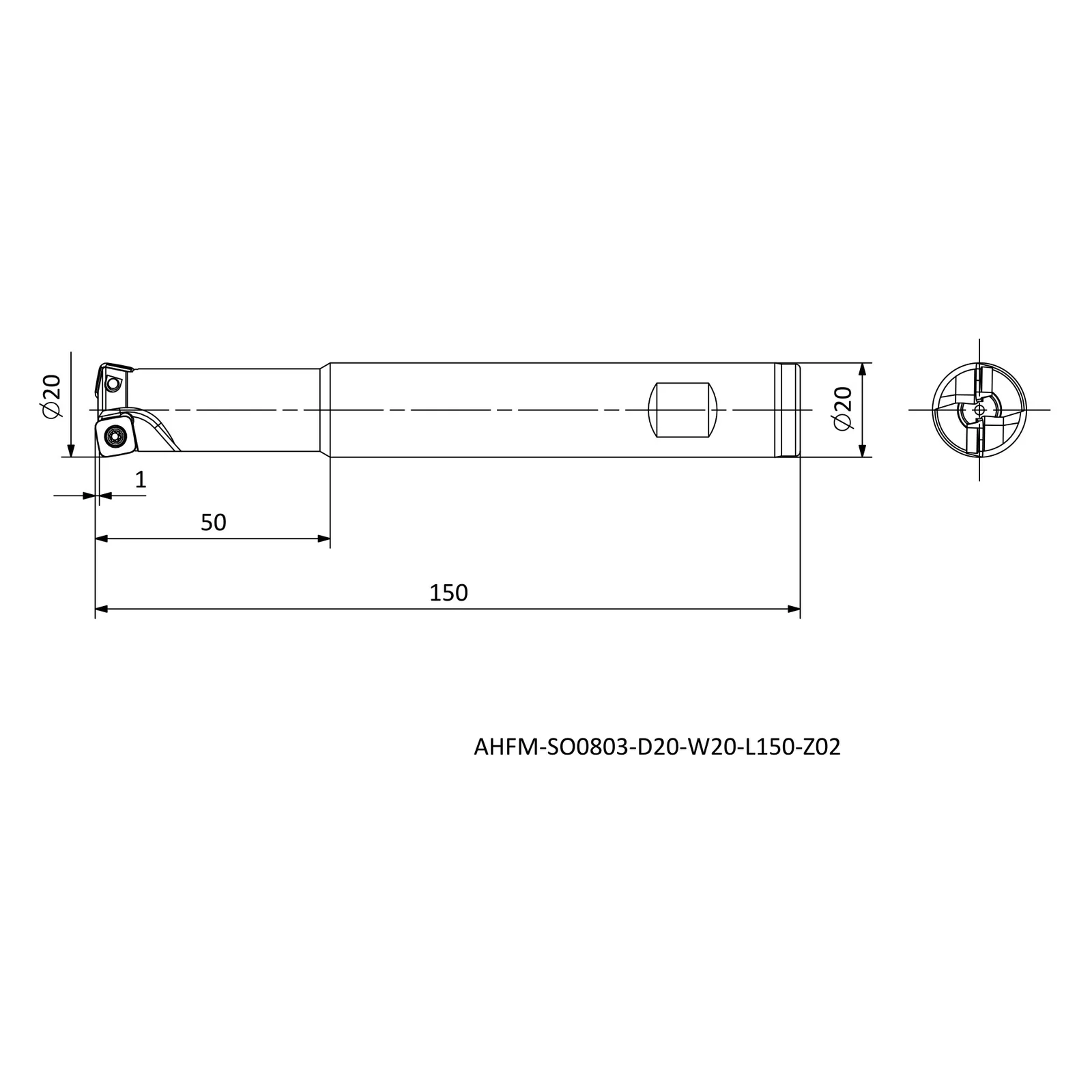

Specifications — AHFM-SO0803-D20-W20-L150-Z02
| Insert Code | Insert designation | SOMW 0803.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 150 |
| DCX | Maximum diameter (mm) | 20 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 2 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in AHFM-SO
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFM-SO0803-D35-W32-L160-Z04 | R | 32 | 160 | 35 |
| AHFM-SO0803-D20-W20-L150-Z02 | R | 20 | 150 | 20 |
| AHFM-SO0803-D25-W25-L150-Z03 | R | 25 | 150 | 25 |
| AHFM-SO0803-D32-W32-L150-Z04 | R | 32 | 150 | 32 |
